Ford 2005 Ranger - Power Distribution Box - 3.0 L and 4.0 L Engines

3.0L and 4.0L engines (if equipped)

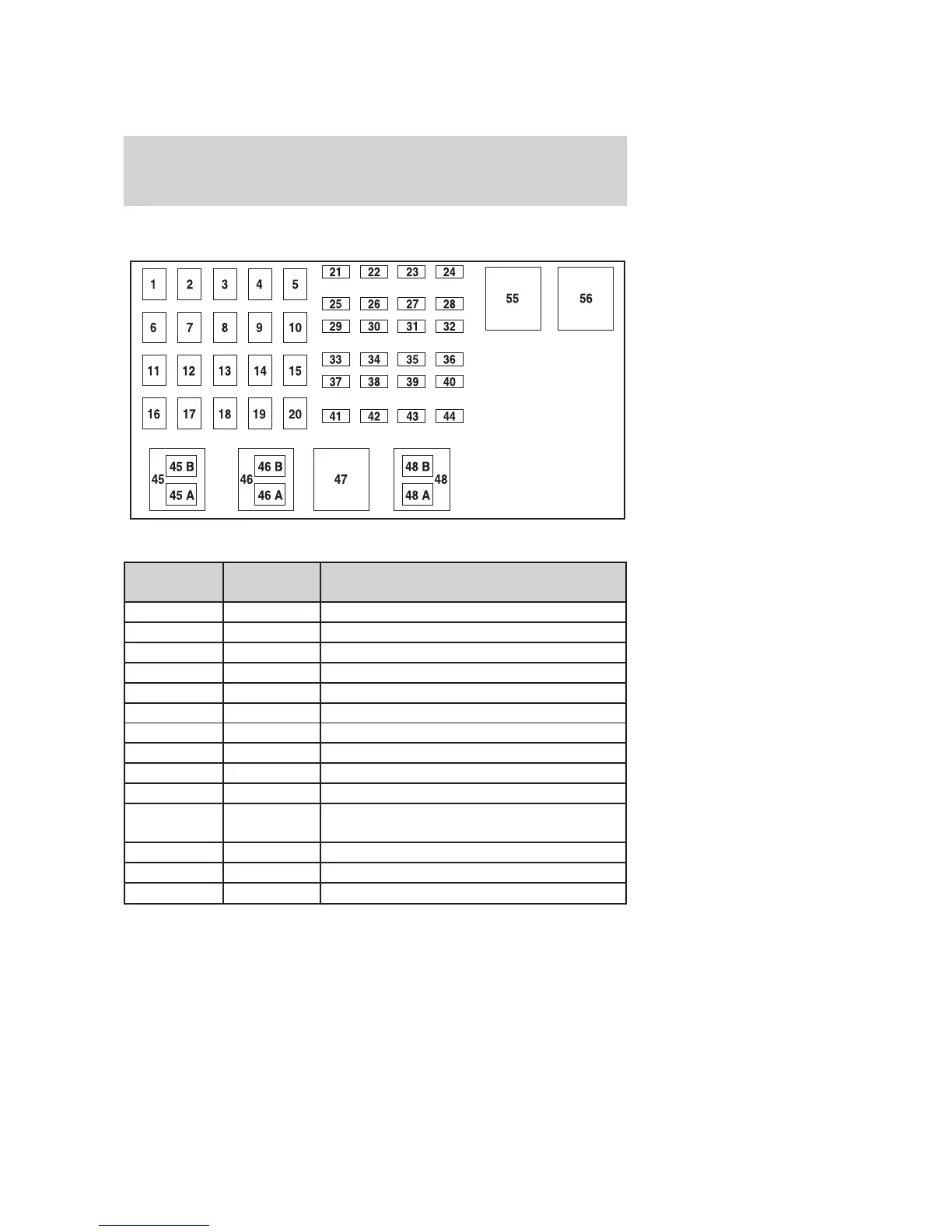

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 40A** Interior fuse panel (SJB)
2 40A** Amplifier (Tremor audio system only)
3 40A** Interior fuse panel (SJB)
4 — Not used
5 50A** Interior fuse panel (SJB)
6 — Not used
7 40A** Starter
8 — Not used
9 40A** Ignition switch
10 — Not used
11 30A** Powertrain Control Module (PCM), Engine
sensors
12 — Not used
13 30A** Blower motor (climate control)
14 — Not used
2005 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
169
