Note:
You can identify a blown fuse
by a break in the filament.
Note:
All fuses, except high current
fuses, are a push fit.

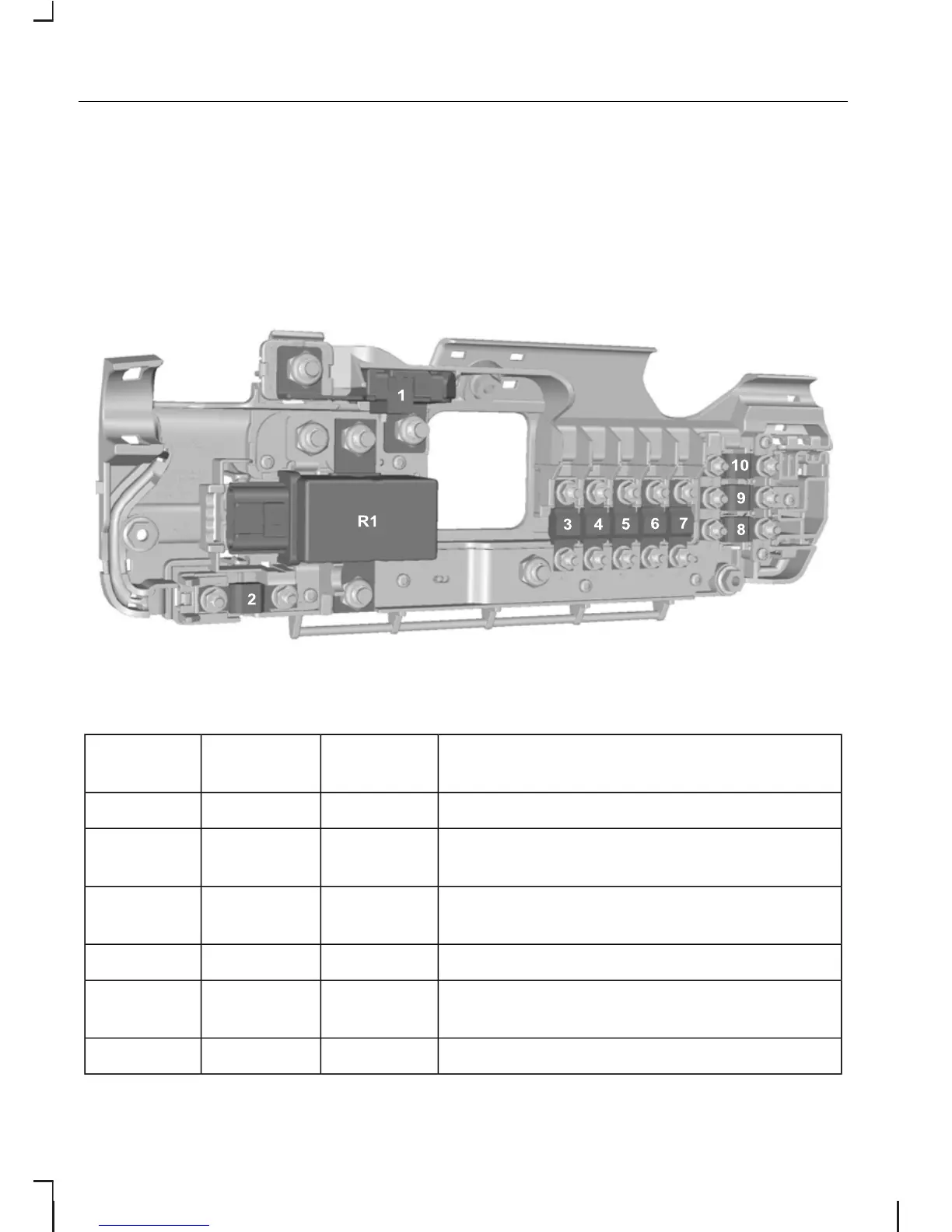

FUSE SPECIFICATION CHART
Pre-fuse box
Circuits protectedColour
Ampere
rating
Fuse
Starter motor and alternatorgrey3501
Passenger junction box power supply -
start relevant
yellow602
Engine junction box power supply - non-
start relevant
blue1003
Heated front screen right-hand sidegreen404
Standard relay box power supply - non-
start relevant
blue1005
Heated front screen left-hand sidegreen406
110
Fuses
