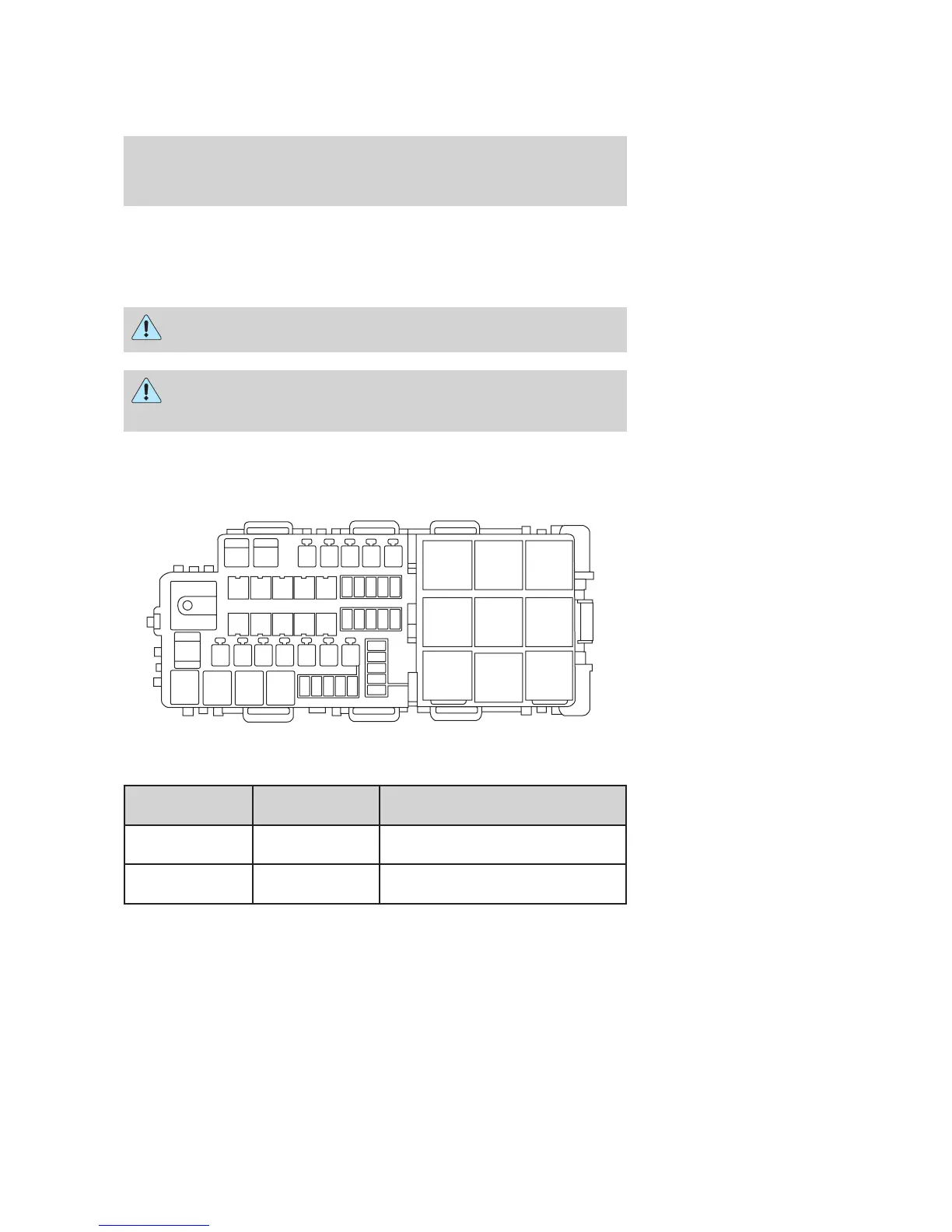

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 60A*** SJB power feed (fuses 12, 13, 14,
15, 16, 17, 18, C/B)
2 60A*** SJB power feed (fuses 1, 2, 4, 10,
11)
45 46 47
48 49
50 51
52
53
55
56
54
57
58
41 42 43 44
23 24 25 26 27
28
29 30 31 32 33 34 35
13
12
89
10 11 12
18 19 20 21 22
3
45 6 7
14
15
16
17
36
37
38
39
40
2007 Fusion (fsn)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
195
