ENGINE
DATA
Engine
2.3L
I4
engine
3.0L
DOHC
V6
Duratec
engine
Cubic
inches
140
182
Required
fuel
87
octane
87
octane
Firing
order
1-3-4-2
1-4-2-5-3-6
Ignition
system
Coil
on
plug
Coil
on
plug
Spark
plug
gap
0.049–0.053
inch
(1.25–1.35
mm)
0.052–0.056
inch
(1.32–1.42
mm)
Compression
ratio
9.7:1
10.0:1

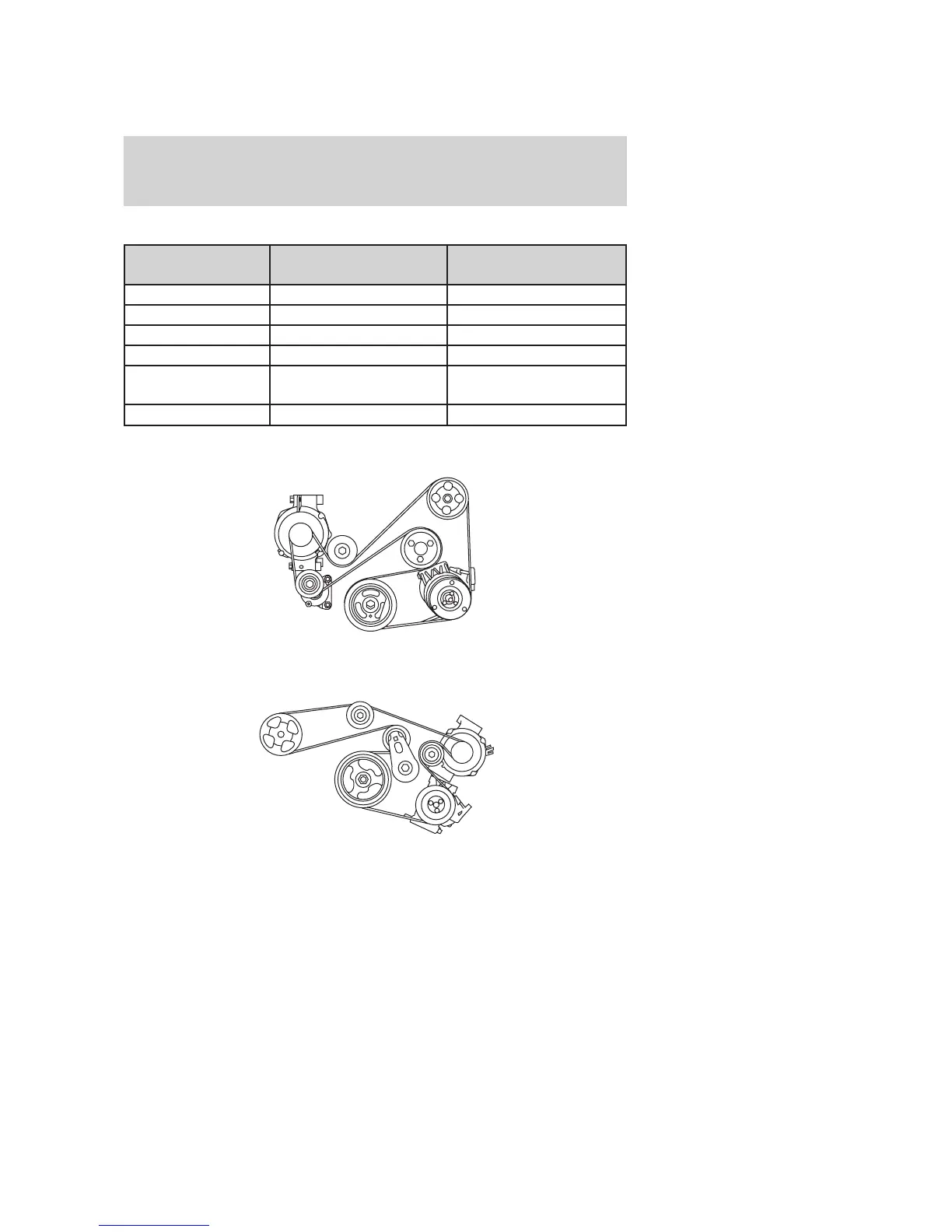

Engine
drivebelt
routing
•
2.3L
I4
Engine
•
3.0L
V6
Engine
2007
Fusion
(fsn)
Owners
Guide
(post-2002-fmt)
USA
(fus)
Maintenance
and
Specifications
268
267
269
Table of Contents
Default Chapter
1
Table of Contents
1
Introduction
4
Safety and Environment Protection
5
Breaking-In Your Vehicle
5
Special Instructions
6
Service Data Recording
6
Event Data Recording
6
Cell Phone Use
7
Middle East/North Africa Vehicle Specific Information
7
Vehicle Symbol Glossary
8
Instrument Cluster
10
Warning Lights and Chimes
10
Standard Instrument Cluster
10
Optional Instrument Cluster
10
Gauges
14
Entertainment Systems
17
Audio Systems
17
Listening to the Radio
17
Quick Start — How to Get Going
17
Listening to a CD/MP3 (if Equipped)
18
Listening to Satellite Radio (if Equipped)
18
AM/FM Single CD/MP3 Satellite Compatible Sound System (if Equipped)
21
AM/FM Stereo with CD
21
AM/FM Stereo with In-Dash Six CD
26
Premium/Audiophile AM/FM In-Dash Six CD/MP3 Satellite Compatible Sound System (if Equipped)
26
Auxiliary Input Jack (if Equipped)
33
Required Equipment
33
To Play Your Portable Music Player Using the Auxiliary Input Jack
33
General Audio Information
34
Radio Frequencies
34
Radio Reception Factors
34
Troubleshooting
34
CD/CD Player Care
35
MP3 Track and Folder Structure
35
Sample MP3 Structure
36
Satellite Radio Information (if Equipped)
36
Navigation System (if Equipped)
39
Climate Controls
40
Manual Heating and Air Conditioning System (if Equipped)
40
Manual Heating and Air Conditioning System Operating Tips
41
Automatic Temperature Control (ATC) System (if Equipped)
42
Automatic Temperature Control (ATC) System with Heated Seats (if Equipped)
44
Automatic Operation
46
Automatic Temperature Control (ATC) System Operating Tips
46
In MAX A/C Setting
46
Override Operation
46
Rear Window Defroster
47
Lights
48
Autolamp Control (if Equipped)
48
Autolamps - Programmable Exit Delay
48
Headlamp Control
48
Daytime Running Lamps (DRL) (if Equipped)
49
Foglamp Control (if Equipped)
49
Aiming the Headlamps
50
Flash to Pass
50
High Beams
50
Panel Dimmer Control
50
Vertical Aim Adjustment
51
Bulb Replacement
52
Dome Lamps and Map Lamps
52
Interior Lamps
52
Turn Signal Control
52
Replacing Headlamp Bulbs
53
Using the Right Bulbs
53
Lowbeam Bulb (Upper) Replacement
55
Replacing Front Parking Lamp/Turn Signal Bulbs
57
Replacing Front Side Marker Bulbs
59
Replacing Tail/Brake/Turn Signal/Backup Lamp Bulbs
59
Replacing High-Mount Brake Lamp Bulb
60
Replacing License Plate Lamp Bulbs
60
Replacing Foglamp Bulbs (if Equipped)
61
Driver Controls
62
Multi-Function Lever
62
Windshield Wiper Features (if Equipped with Autolamp Feature)
62
Illuminated Visor Mirror (if Equipped)
63
Slide on Rod Feature (if Equipped)
63
Steering Wheel Adjustment
63
Tilt/Telescope Steering Wheel
63
Center Console
64
Overhead Console (if Equipped)
64
Storage Compartment
64
Auxiliary Power Point (12VDC)
65
Clock (if Equipped)
65
Instrument Panel Storage Compartment
65
Cigar/Cigarette Lighter (if Equipped)
66
Power Windows
66
Accessory Delay
67
Automatic Dimming Inside Rear View Mirror (if Equipped)
67
One Touch down
67
Window Lock
67
Exterior Mirrors
68
Heated Mirrors (if Equipped)
68
Power Side View Mirrors
68
Speed Control
68
Disengaging Speed Control
69
Increasing Speed While Using Speed Control
70
Reducing Speed While Using Speed Control
70
Resuming a Set Speed
70
Radio Control Features
71
Steering Wheel Controls (if Equipped)
71
Turning off Speed Control
71
Climate Control Features
72
Moon Roof
72
Bounce Back
73
Bounce Back Override
73
To Close the Moon Roof
73
To Open the Moon Roof
73
Info Menu
74
Message Center
74
Reset
74
Selectable Features
74
Average Fuel Economy (AFE)
75
Distance to Empty (DTE)
75
Average Speed
76
Compass Display (if Equipped)
76
Compass Zone/Calibration Adjustment
76
Setup Menu
78
System Check
78
Trip Elapsed Drive Time
78
Language
79
System Warnings
79
Units (English/Metric)
79
Locks and Security
82
Keys
82
Recommended Handling of the Integrated Keyhead Transmitter (KIT)
83
Power Door Locks
84
Smart Locks
84
Power Door Lock/Unlock Inhibit Feature
84
Autolock Feature
85
Autounlock Feature
86
Deactivating/Activating Autolock Feature
86
Deactivating/Activating Autounlock Feature
87
Childproof Door Locks
88
Interior Luggage Compartment Release
88
Remote Entry System
89
Unlocking the Doors/Two Stage Unlock
90
Locking the Doors
91
Car Finder
91
Sounding a Panic Alarm
91
Opening the Trunk
92
Replacing the Battery
92
How to Reprogram Your Integrated Keyhead Transmitters (Ikts)
93
Illuminated Entry
93
Perimeter Lamps Illuminated Entry
93
Deactivating/Activating Perimeter Lamps Illuminated Entry
93
Battery Saver
94
Illuminated Exit
94
Anti-Theft Indicator
95
Securilock Passive Anti-Theft System
95
Automatic Arming
96
Automatic Disarming
96
Replacement Integrated Keyless Transmitters (IKT) and Coded Keys
96
Programming Spare Keys
97
Perimeter Alarm System (if Equipped)
98
Arming the System
98
Disarming the System
99
Triggering the Anti-Theft System
99
Seating and Safety Restraints
100
Adjustable Head Restraints
100
Adjusting the Front Manual Seat (if Equipped)
101
Using the Manual Lumbar Support (if Equipped)
101
Folding down the Front Passenger Seatback (if Equipped)
102
Adjusting the Front Power Seat (if Equipped)
103
Heated Seats (if Equipped)
104
Rear Seats
104
Split-Folding Rear Seatbacks
104
Personal Safety System
106
Safety Restraints
106
Seat Mounted Cup Holders and Armrest Storage Compartment (if Equipped)
106
Driver and Passenger Dual-Stage Airbag Supplemental Restraints
107
Driver’s Seat Position Sensor
107
Front Crash Severity Sensor
107
How Does the Personal Safety System Work?
107
Front Passenger Sensing System
108
Front Safety Belt Pretensioners
108
Front Safety Belt Usage Sensors
108
Determining if the Personal Safety System Is Operational
109
Front Safety Belt Energy Management Retractors
109
Safety Belt Precautions
110
Combination Lap and Shoulder Belts
111
Energy Management Feature — Front Outboard
111
Automatic Locking Mode
112
Vehicle Sensitive Mode
112
How to Disengage the Automatic Locking Mode
113
Safety Belt Pretensioner
113
When to Use the Automatic Locking Mode
113
Safety Belt Extension Assembly
114
Safety Belt Height Adjustment
114
Safety Belt Maintenance
114
Belt-Minder
115
Conditions of Operation
115
Safety Belt Warning Light and Indicator Chime
115
Deactivating/Activating the Belt-Minder Feature
118
One Time Disable
118
Airbag Supplemental Restraint System (SRS)
120
Important Supplemental Restraint System Precautions
120
Children and Airbags
122
How Does the Safety Belt Pretensioner and Airbag Supplemental Restraint System Work?
122
Determining if the System Is Operational
128
If the Airbag Readiness Light Is Lit, Do the Following
128
Seat-Mounted Side Airbag System
129
How Does the Side Airbag System Work?
130
Side Curtain Airbag System
132
How Does the Side Air Curtain System Work?
133
Children and Safety Belts
135
Disposal of Airbags and Airbag Equipped Vehicles (Including Pretensioners)
135
Important Child Restraint Precautions
135
Safety Restraints for Children
135
Child Booster Seats
136
When Children Should Use Booster Seats
136
Types of Booster Seats
137
The Importance of Shoulder Belts
138
Child and Infant or Child Safety Seats
139
Safety Seats for Children
139
Installing Child Safety Seats with Combination Lap and Shoulder Belts
140
Attaching Child Safety Seats with Tether Straps
143
Attaching Safety Seats with LATCH (Lower Anchors and Tethers for Children) Attachments for Child Seat Anchors
145
Tires, Wheels and Loading
147
Information about Uniform Tire Quality Grading
147
Traction AA a B C
147
Treadwear
147
Glossary of Tire Terminology
148
Temperature a B C
148
Tires
148
Inflating Your Tires
149
Inspecting Your Tires
151
Tire Care
151
Age
152
Damage
152
Tire Wear
152
Tire Replacement Requirements
153
U.S. DOT Tire Identification Number (TIN)
153
Safety Practices
154
Highway Hazards
155
Tire and Wheel Alignment
155
Tire Rotation
155
Information Contained on the Sidewall
156
Information on “P” Type Tires
157
Additional Information Contained on the Tire Sidewall for “LT” Type Tires
160
Information on “T” Type Tires
161
Location of the Tire Label
161
Snow Tires and Chains
162
Vehicle Loading
163
Steps for Determining the Correct Load Limit
166
Front Wheel Drive (FWD) Vehicles with Automatic Transaxle
168
Front Wheel Drive (FWD) Vehicles with Manual Transaxle
168
Recreational Towing
168
Trailer Towing
168
Driving
169
Starting
169
Positions of the Ignition
169
Starting Your Vehicle
169
Important Safety Precautions
170
Engine Block Heater (if Equipped)
172
Brakes
172
Starting the Engine
172
Guarding against Exhaust Fumes
172
Four-Wheel Anti-Lock Brake System (ABS) (if Equipped)
173
ABS Warning Lamp
173
Using ABS
173
Parking Brake
174
Traction Control
174
Steering
175
Automatic Transmission Operation
176
Speed Sensitive Steering
176
Brake-Shift Interlock
176
Understanding the Gearshift Positions of the 5–Speed Automatic Transaxle (if Equipped)
178
P (Park)
178
R (Reverse)
178
N (Neutral)
179
D (Drive)
179
L (Low)
179
Understanding the Gearshift Positions of the 6–Speed Automatic Transaxle (if Equipped)
179
If Your Vehicle Gets Stuck in Mud or Snow
180
Manual Transmission Operation (if Equipped)
181
Using the Clutch
181
Reverse
182
Parking Your Vehicle
182
Removing the Key
182
All Wheel Drive (AWD) System (if Equipped)
183
Driving Off-Highway with AWD Vehicles
183
Basic Operating Principles
183
If Your Vehicle Goes off the Edge of the Pavement
183
If Your Vehicle Gets Stuck
184
Emergency Maneuvers
184
AWD Systems (if Equipped)
185
Sand
185
Mud and Water
185
Driving on Hilly or Sloping Terrain
186
Driving on Snow and Ice
187
Maintenance and Modifications
188
Driving through Water
188
Roadside Emergencies
189
Getting Roadside Assistance
189
Using Roadside Assistance
190
Hazard Flasher Control
190
Fuel Pump Shut-Off Switch
191
Fuses and Relays
191
Standard Fuse Amperage Rating and Color
192
Passenger Compartment Fuse Panel
192
Fuse Panel Description
193
Power Distribution Box
195
Changing the Tires
198
Dissimilar Spare Tire/Wheel Information
198
How to Change a Flat Tire
200
Tire Change Procedure
201
Removing the Spare Tire and Jack
201
Stowing the Wheel and Jack
203
Wheel Lug Nut Torque Specifications
203
Jump Starting
204
Preparing Your Vehicle
204
Connecting the Jumper Cables
205
Removing the Jumper Cables
207
Wrecker Towing
209
Customer Assistance
210
Getting the Services You Need
210
Reporting Safety Defects (U.S. Only)
216
Reporting Safety Defects (Canada Only)
217
Cleaning
218
Washing the Exterior
218
Exterior Chrome
218
Waxing
219
Paint Chips
219
Aluminum Wheels and Wheel Covers
219
Engine
220
Plastic (Non-Painted) Exterior Parts
221
Windows and Wiper Blades
221
Instrument Panel/Interior Trim and Cluster Lens
222
Interior
223
Leather Seats (if Equipped)
224
Underbody
224
Ford and Lincoln Mercury Car Care Products
224
Maintenance and Specifications
226
Precautions When Servicing Your Vehicle
226
Service Recommendations
226
Working with the Engine Off/On
226
Opening the Hood
227
2.3L I4 Engine
228
Identifying Components in the Engine Compartment
228
3.0L DOHC V6 Duratec Engine
229
Changing the Wiper Blades
230
Windshield Washer Fluid
230
Checking the Engine Oil
231
Engine Oil
231
Adding Engine Oil
234
Engine Oil and Filter Recommendations
235
Use SAE 5W-20 Engine Oil
235
Battery
236
Checking Engine Coolant
238
Engine Coolant
238
Adding Engine Coolant
239
Coolant Refill Capacity
242
Recycled Engine Coolant
242
Severe Climates
242
How Fail-Safe Cooling Works
243
What You Should Know about Fail-Safe Cooling (2.3L I4 Engine Only)
243
Fuel Filter
244
Fuel Information
244
What You Should Know about Automotive Fuels
244
When Fail-Safe Mode Is Activated
244
Fuel Filler Cap
246
Refueling
246
Choosing the Right Fuel
247
Fuel Quality
248
Octane Recommendations
248
Cleaner Air
249
Essentials of Good Fuel Economy
249
Measuring Techniques
249
Running out of Fuel
249
Calculating Fuel Economy
250
Driving Style — Good Driving and Fuel Economy Habits
251
Habits
251
Maintenance
251
Conditions
252
Emission Control System
252
EPA Window Sticker
252
On Board Diagnostics (OBD-II)
253
Readiness for Inspection/Maintenance (I/M) Testing
254
Power Steering Fluid
255
Brake/Clutch Fluid
256
Checking 5–Speed Automatic Transaxle Fluid (if Equipped)
256
Transaxle Fluid
256
Correct Fluid Level
257
Low Fluid Level
257
Adjusting Automatic Transmission Fluid Levels
258
Checking 6–Speed Automatic Transmission Fluid (if Equipped)
258
Checking Automatic Transmission Fluid at Normal Operating Temperature (140°F-158°F [60°C-70°C])
258
High Fluid Level
258
Checking Automatic Transmission Fluid at Cool Temperature (59°F-77°F [15°C-25°C])
259
Air Filter
261
Checking and Adding Manual Transmission Fluid (if Equipped)
261
Changing the Air Filter Element
262
Motorcraft Part Numbers
264
Maintenance Product Specifications and Capacities
265
Engine Data
268
Engine Drivebelt Routing
268
Identifying Your Vehicle
269
Safety Compliance Certification Label
269
Vehicle Identification Number (VIN)
269
Transmission/Transaxle Code Designations
270
Accessories
271
Genuine Ford Accessories for Your Vehicle
271
Exterior Style
271
Interior Style
271
Peace of Mind
272
Index
273
Other manuals for Ford 2007 Fusion
Brochure & Specs
26 pages
Quick Reference Guide
2 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ford 2007 Fusion and is the answer not in the manual?
Ask a question
Ford 2007 Fusion Specifications
General
Brand
Ford
Model
2007 Fusion
Category
Automobile
Language
English
Related product manuals
Ford 2007 Focus
224 pages
Ford 2007 F-150
376 pages
Ford 2007 F-650
281 pages
Ford 2007 Freestar
312 pages
Ford 2007 Freestyle
305 pages
Ford 2007 Five Hundred
288 pages
Ford Freestar 2007
320 pages
Ford Freestyle 2007
304 pages
Ford Five Hundred 2007
2 pages
Ford 2007 Edge
320 pages
Ford Mustang 2007
256 pages
Ford 2007 Explorer
368 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
