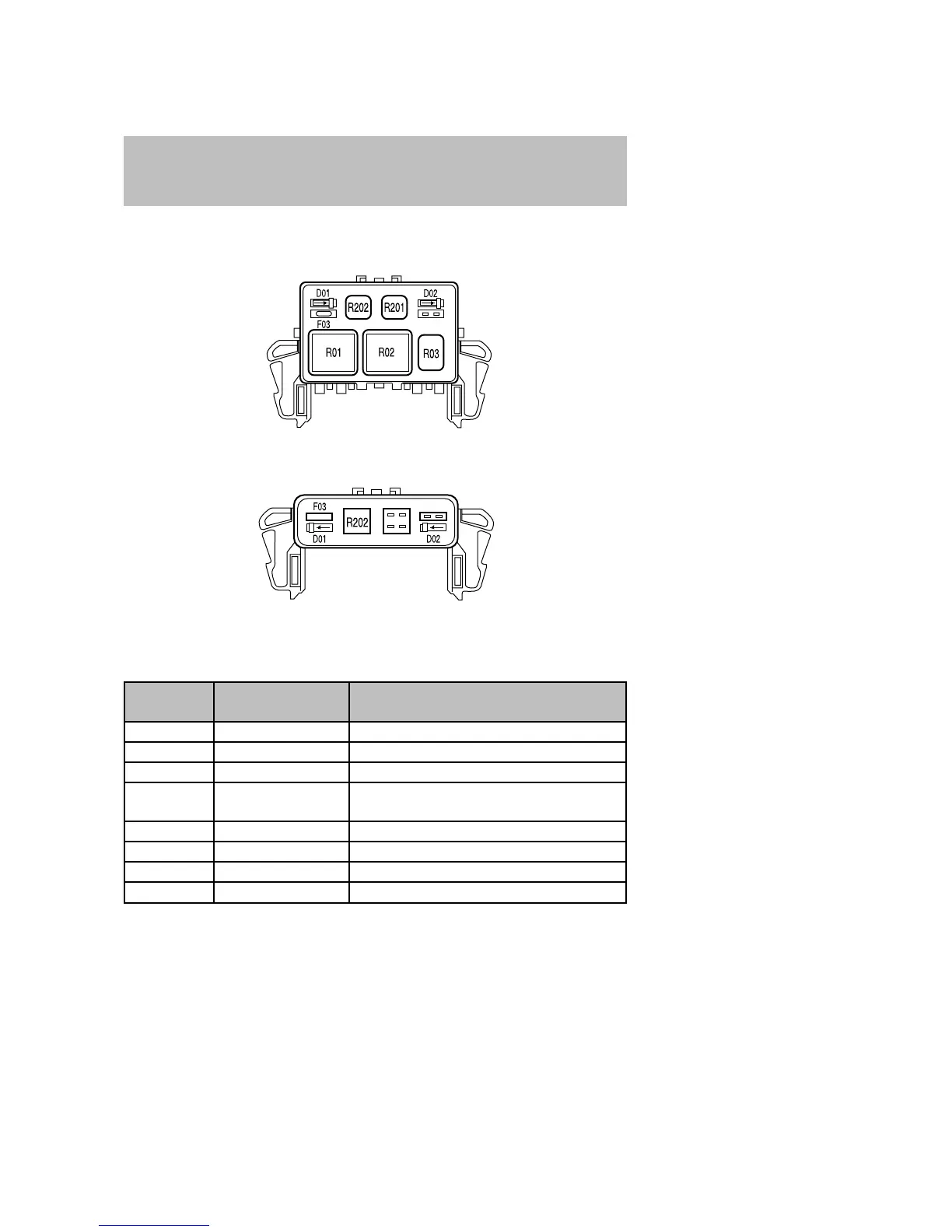

Auxiliary relay box
The relay box is located in the engine compartment on the left fender.
With Daytime Running Lamp (DRL) or 4x4 options
Without Daytime Running Lamp (DRL) and 4x4 options
The relays are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Description
F03 5A Clockspring illumination
R01 Full ISO Relay 4x4 CCW
R02 Full ISO Relay 4x4 CW
R03
1
2
ISO Relay Daytime Running Lamps (DRL) high
beam disable
R201 Relay DRL
R202 Relay A/C clutch
D01 Diode A/C clutch
D02 Diode One Touch Integrated Start (OTIS)
