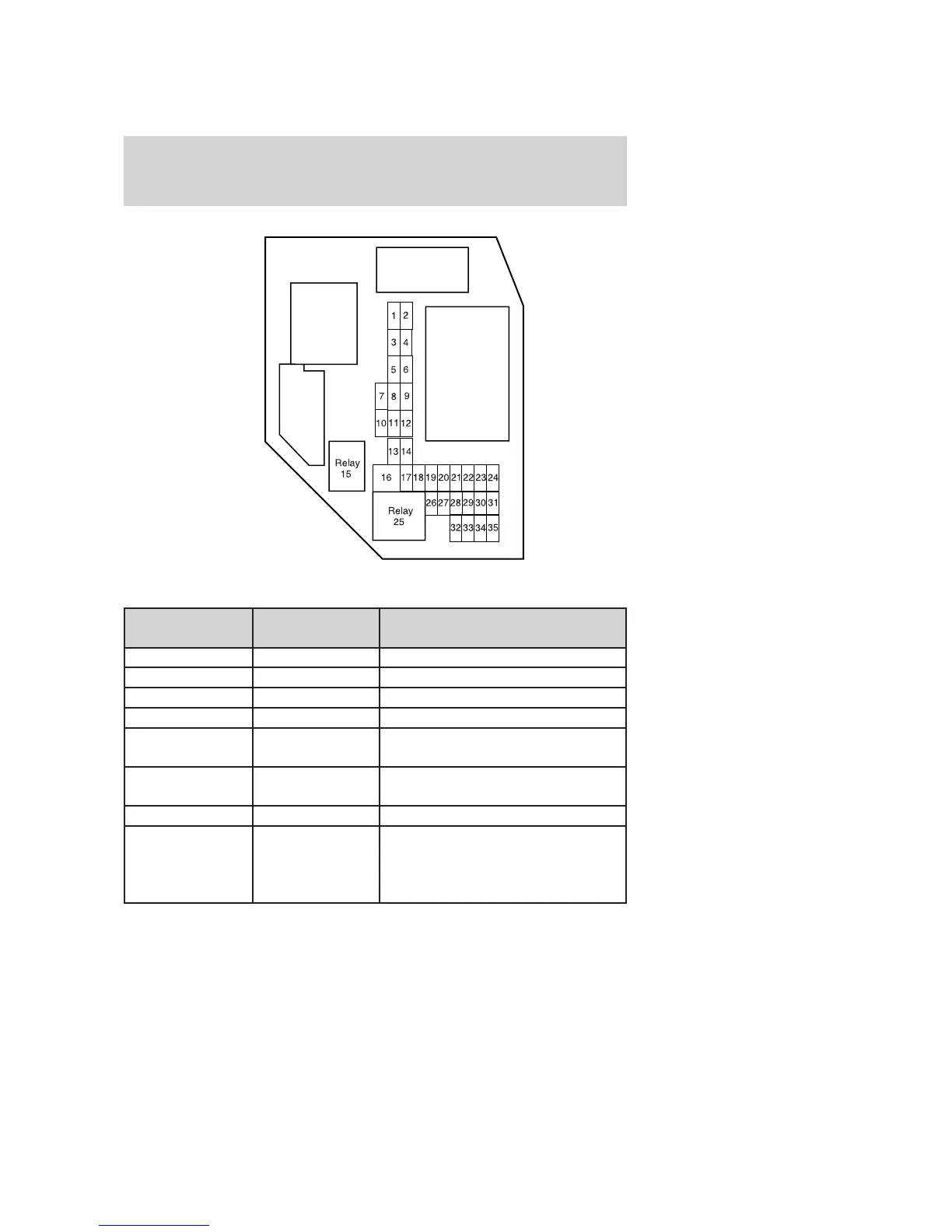

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module
(RUN/ACCY)
6 10A Radio (RUN/ACCY), Door switch
illumination
7 — Not used
8 10A Restraints Control Module (RCM),
PADI (Passenger Air bag
Deactivation Indicator), Occupant
classification sensor (OCS)
2008 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
