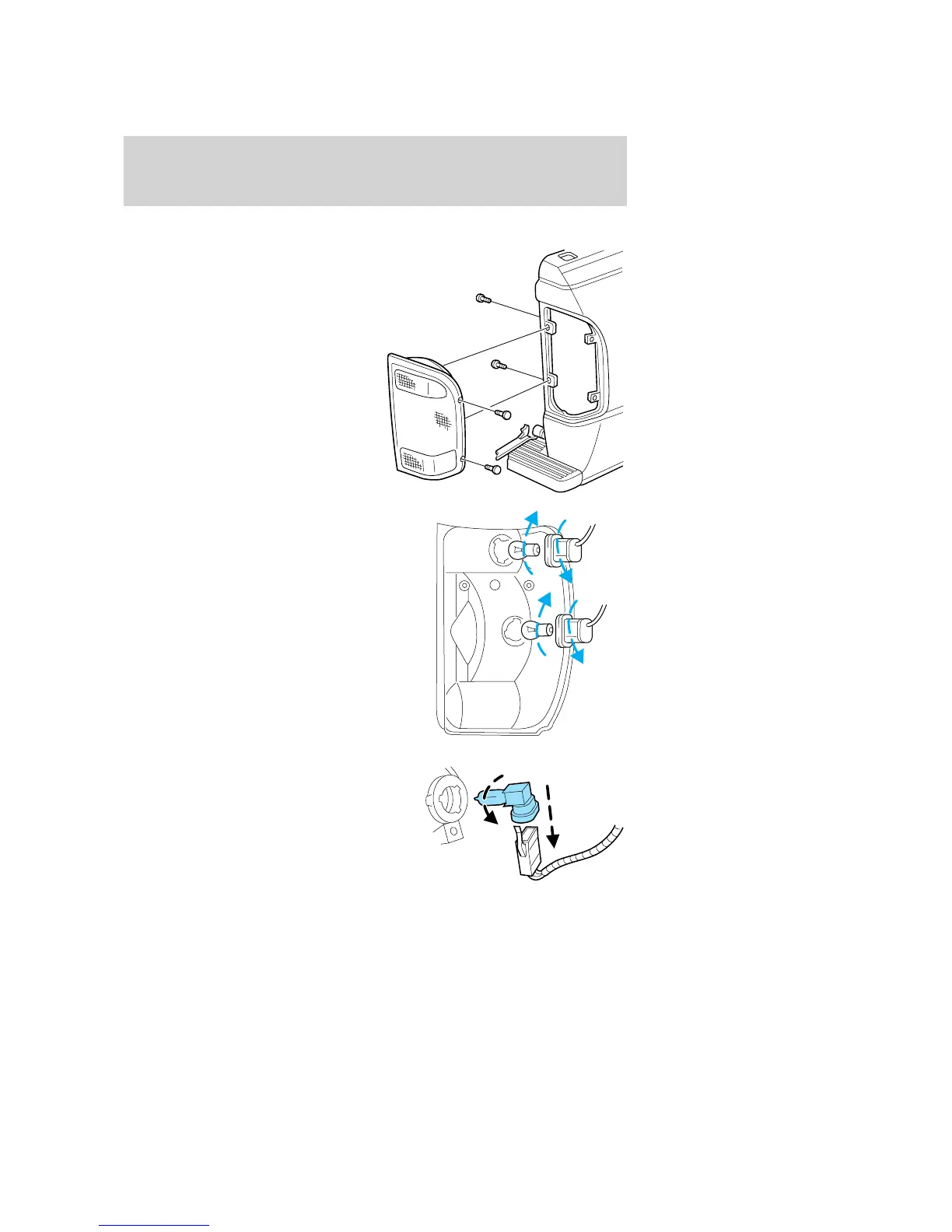

Replacing tail lamp/backup lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and the open
the tailgate to expose the lamp
assemblies.
2. Remove the four screws and the
lamp assembly from vehicle.
3. Rotate bulb socket
counterclockwise turn and remove
from lamp assembly.
4. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse
order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position and remove the
bulb socket from the fog lamp by
turning counterclockwise.
2. Disconnect the electrical
connector.
Install the new bulb in reverse
order.
2008 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Lights
51
