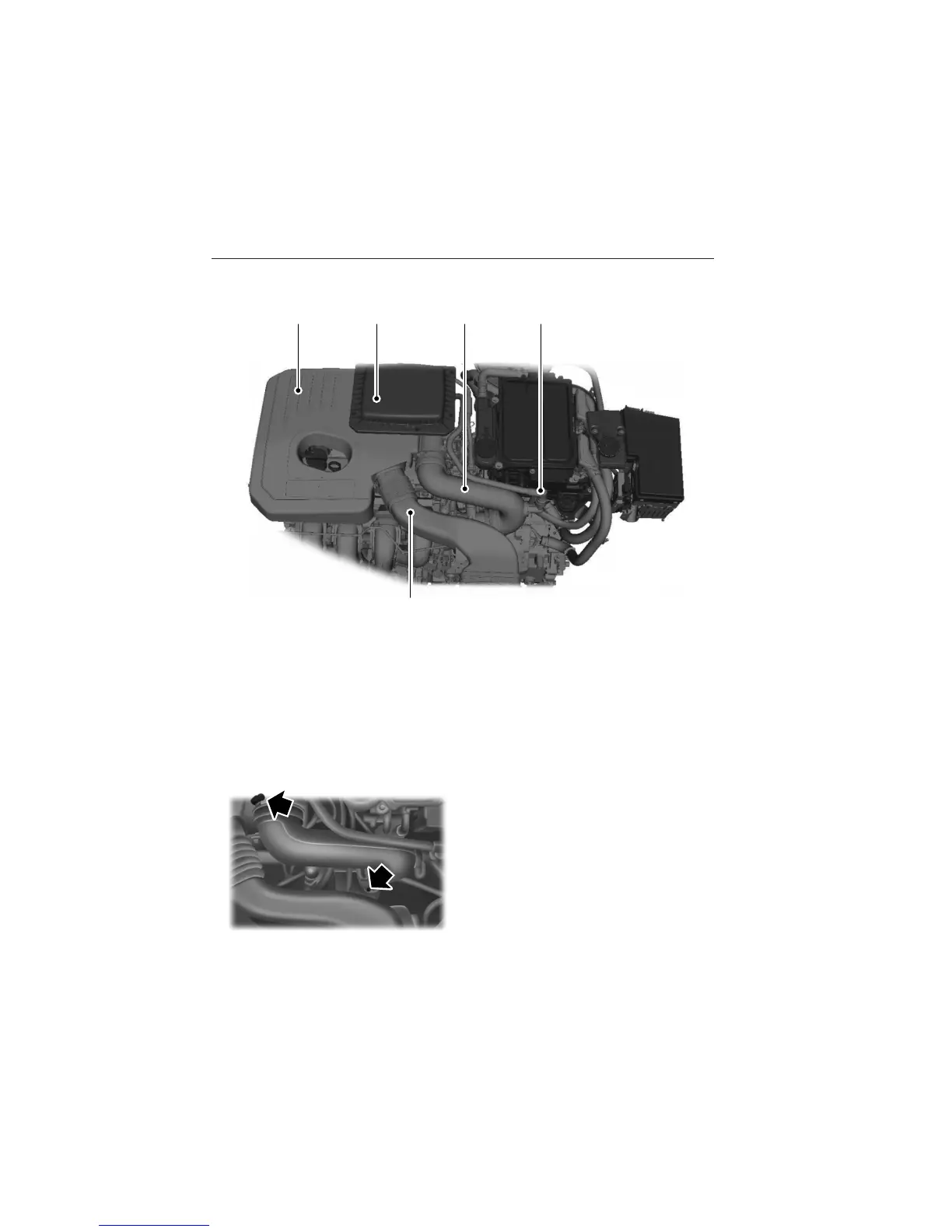

Identifying Air Filter Element Components
A. Air cleaner assembly
B. Air cleaner cover
C. Air cleaner outlet tube
D. Positive crankcase ventilation (PCV) tube
E. Air cleaner intake tube
Removing the Engine Air Filter Element
1. Loosen the hose clamps for air
cleaner outlet tube (C). Disconnect
the tube from the air cleaner
assembly (A).
A C D
E
B
