2. Release the tabs and disconnect the PCV tube (D) from the air
cleaner outlet tube (C) and remove the tube.
3. Disconnect the air cleaner intake tube (E) from the air cleaner
assembly (A).

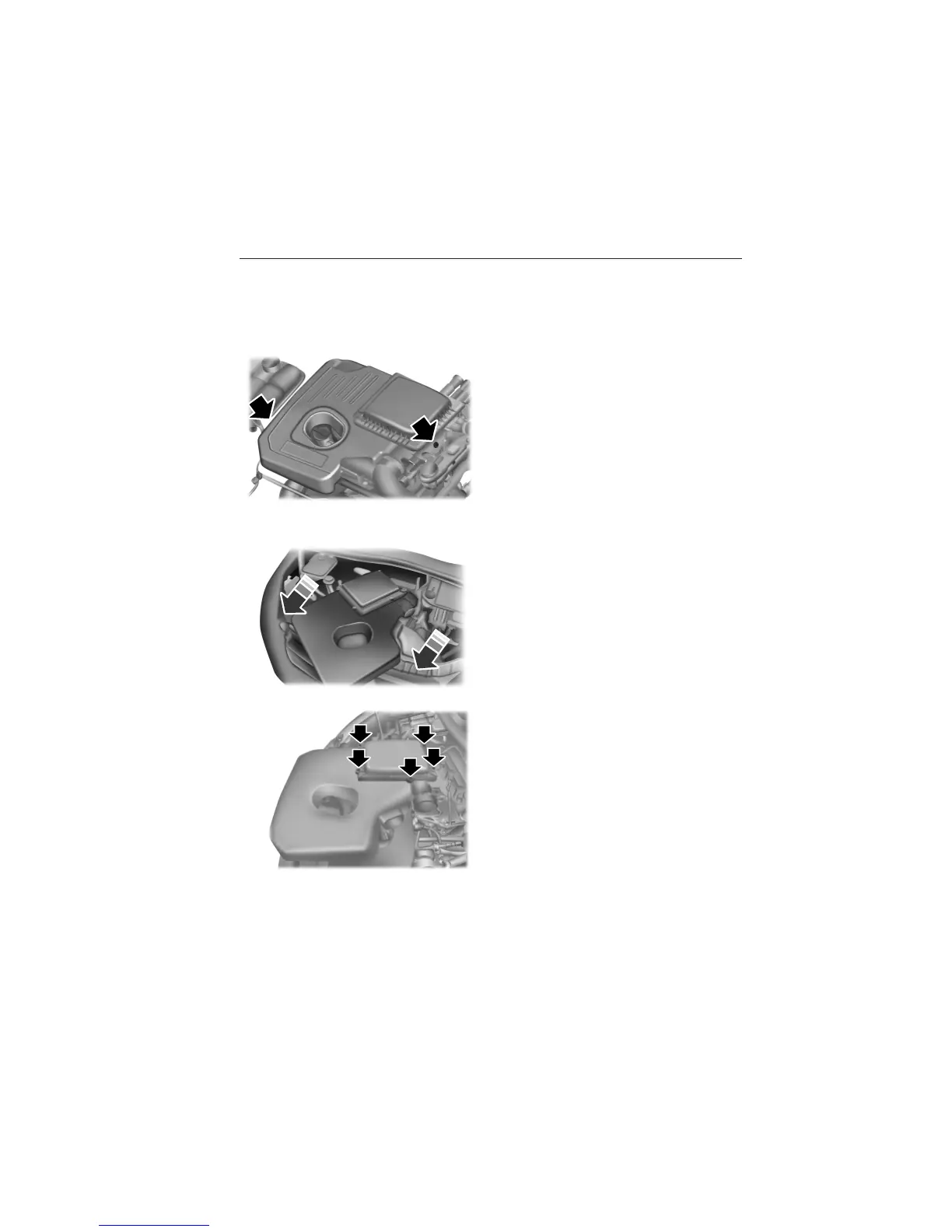

4. Remove the bolts from each side
of the air cleaner assembly (A) as
shown with arrows.
5. Lift the air cleaner assembly (A)
from the mounting studs, then
rotate and pull it towards the front
of the vehicle.
6. Loosen the 5 bolts from the air
cleaner cover (B).
7. Remove the air cleaner cover (B) from the air cleaner assembly (A).
292 Maintenance
