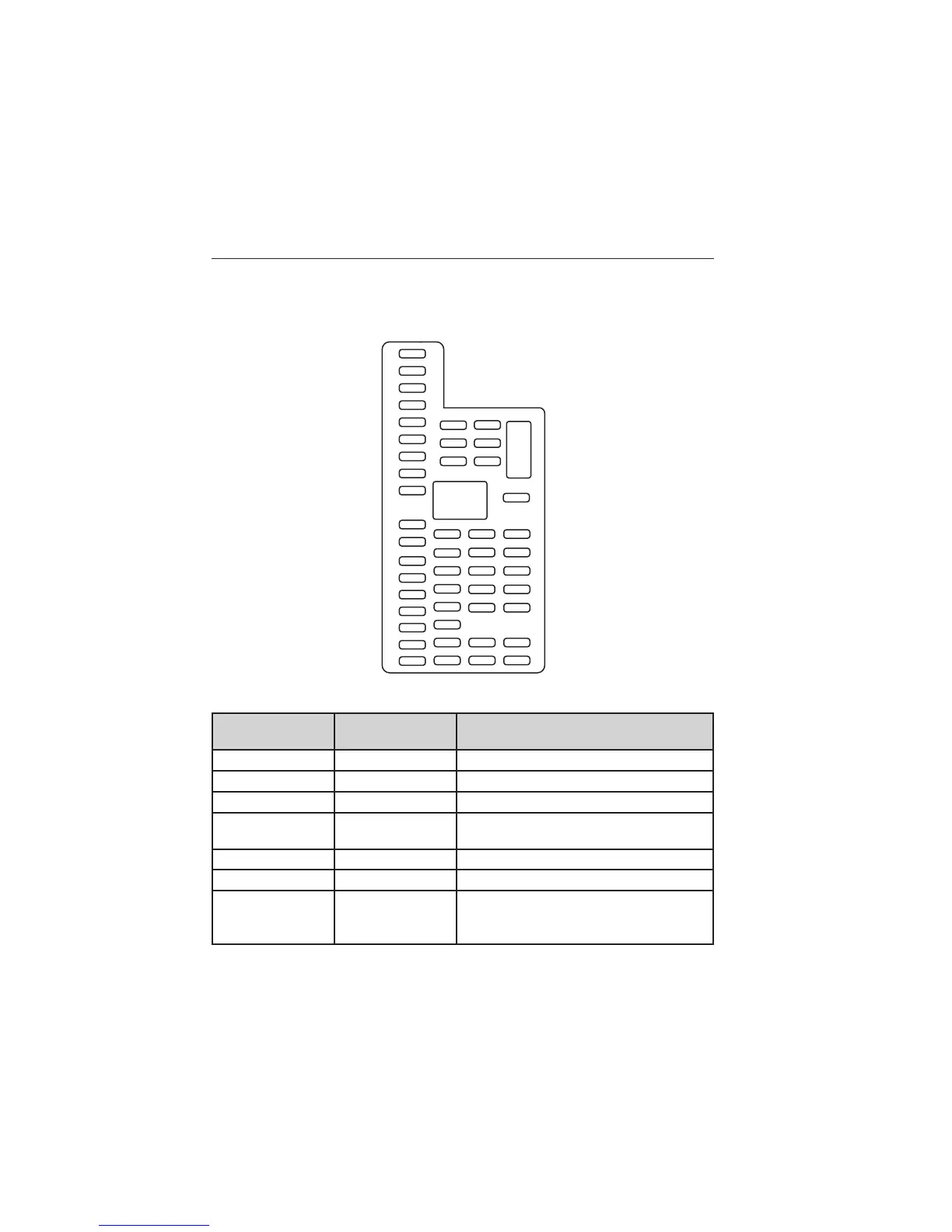

Passenger Compartment Fuse Panel
The fuse panel is located under the instrument panel to the left of the
steering wheel. You may need to remove a trim panel to access it.
The fuses are coded as follows:
Fuse or relay
number
Fuse amp
rating
Protected components
1 30A Driver side front window
2 15A Memory seat, Second row seats
3 30A Not used (spare)
4 10A Battery saver relay (interior
demand lamps and seat power)
5 20A Smart amplifier
6 5A Not used (spare)
7 7.5A Power mirror switch, Driver door
module, Driver seat module,
Keypad
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 33 41
42
43
44
45
34
35
36
37
23
24
25
26
27
28 38 46
39 4729
32
40
31
30
48
49
Fuses 295
2013 Flex (471)
Owners Guide gf, 4th Printing, December 2012
USA (fus)
