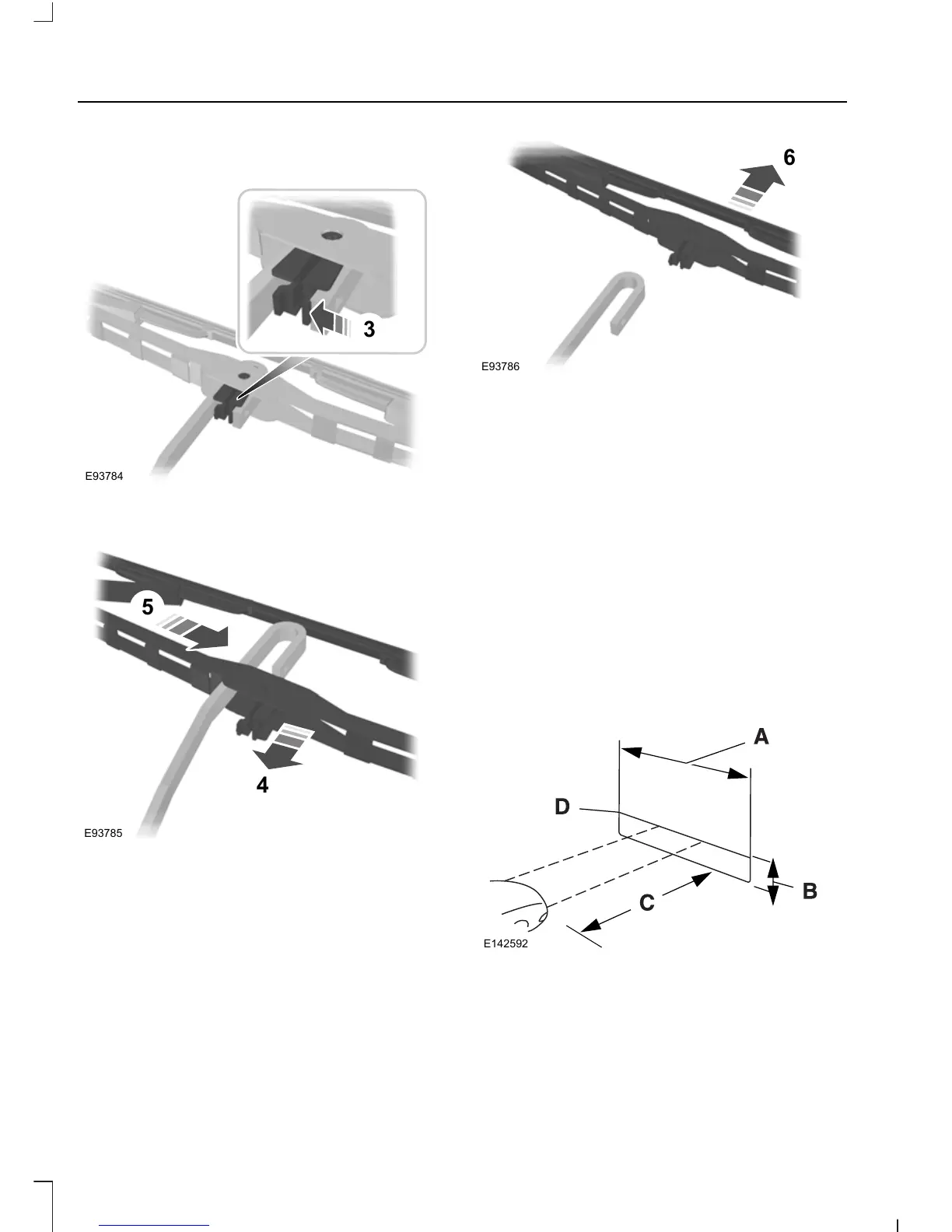

2. Position the wiper blade at right angles
to the wiper arm.
3. Disengage the wiper blade from the
wiper arm.
4. Unhook the wiper blade from the wiper
arm.
5. Slide the wiper blade to the side.
6. Remove the wiper blade.
Install new wiper blades in the reverse
order.
Note: Make sure that the wiper blade locks
into place.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.
Headlamp Aiming Target
8 feet (2.4 meters)A
Ground to the center of the
headlamp bulb
B
188
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
Maintenance
