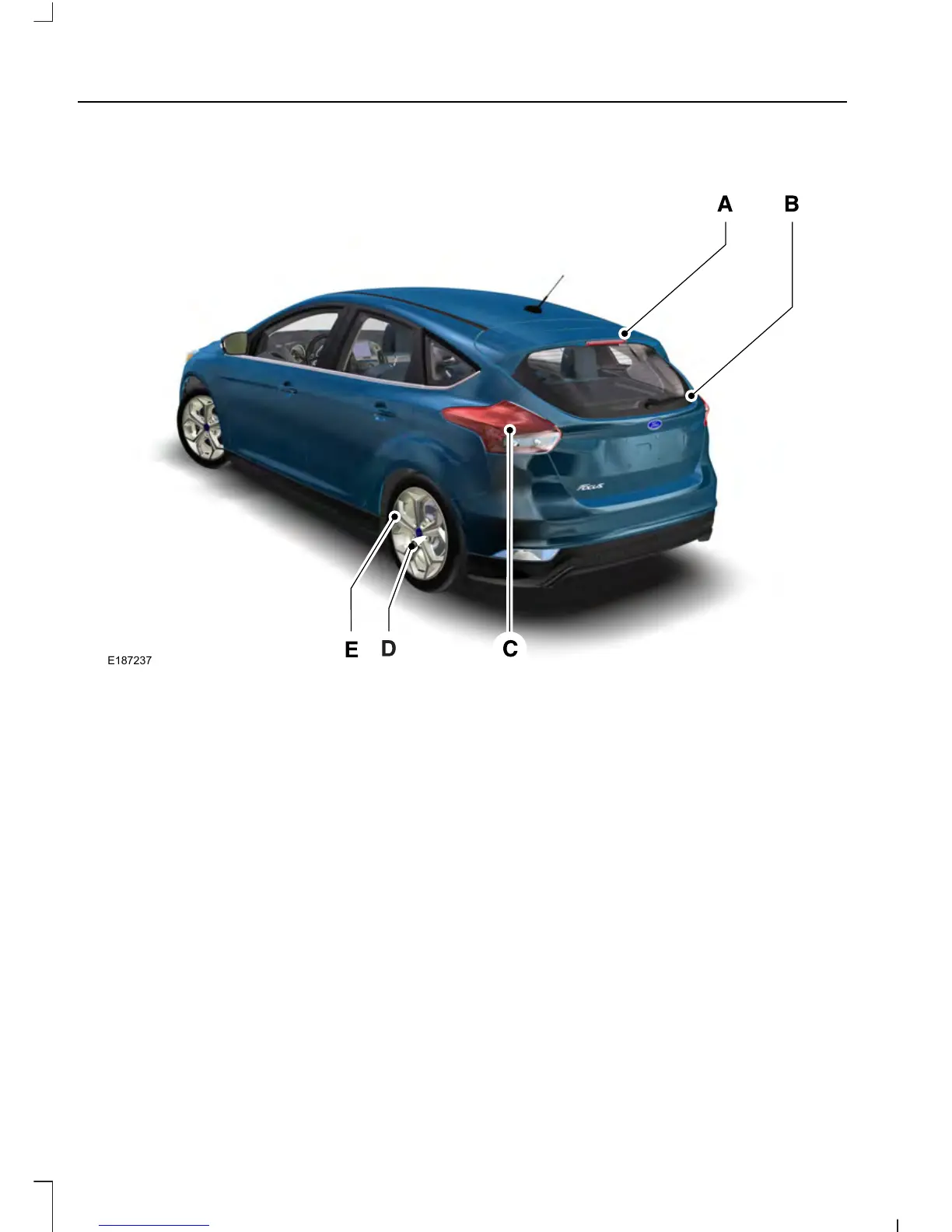

REAR EXTERIOR OVERVIEW

E187237

See Changing a Bulb (page 223).A

See Changing the Wiper Blades (page 220).B

See Changing a Bulb (page 223).C

See Changing a Road Wheel (page 257).D

See Wheels and Tires (page 238).E

16

Focus (CDH) Canada/United States of America, enUSA
