1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box
from the cradle.
3. Move the fuse box toward the center
of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.

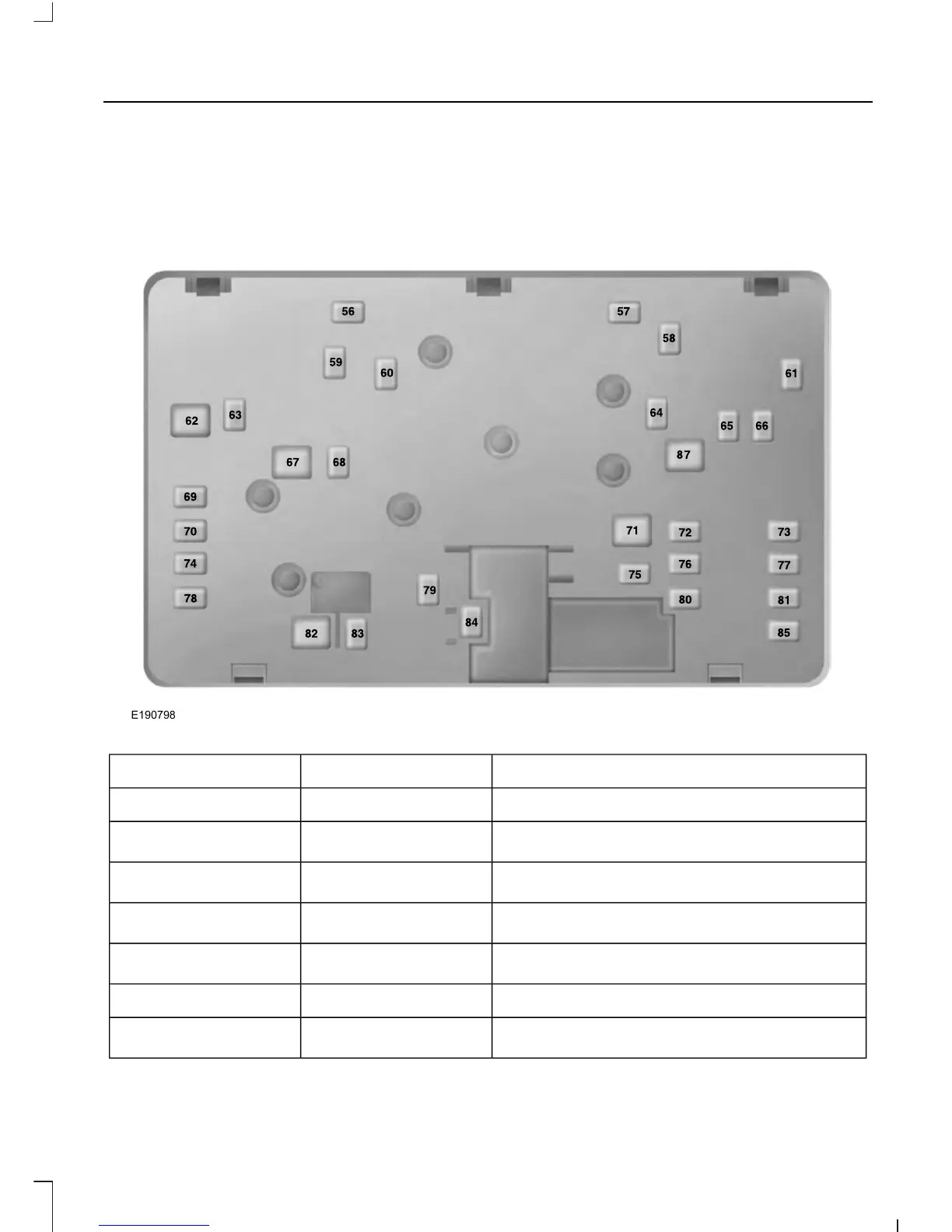

Protected componentsFuse amp ratingFuse or relay number
Not used.—56
Diesel vaporizer or E100.
20A
1
57
Fuel pump feed.
30A
1
58
Electronic fan 3.
30A
2
59
Electronic fan 1.
30A
2
60
Not used.—61
Body control module 1.
50A
2
62
239
