Note: To remove push pins, use a
flat-bladed screwdriver to pull up the center
release pin.
1. Make sure the headlamp control is in
the off position and open the hood.

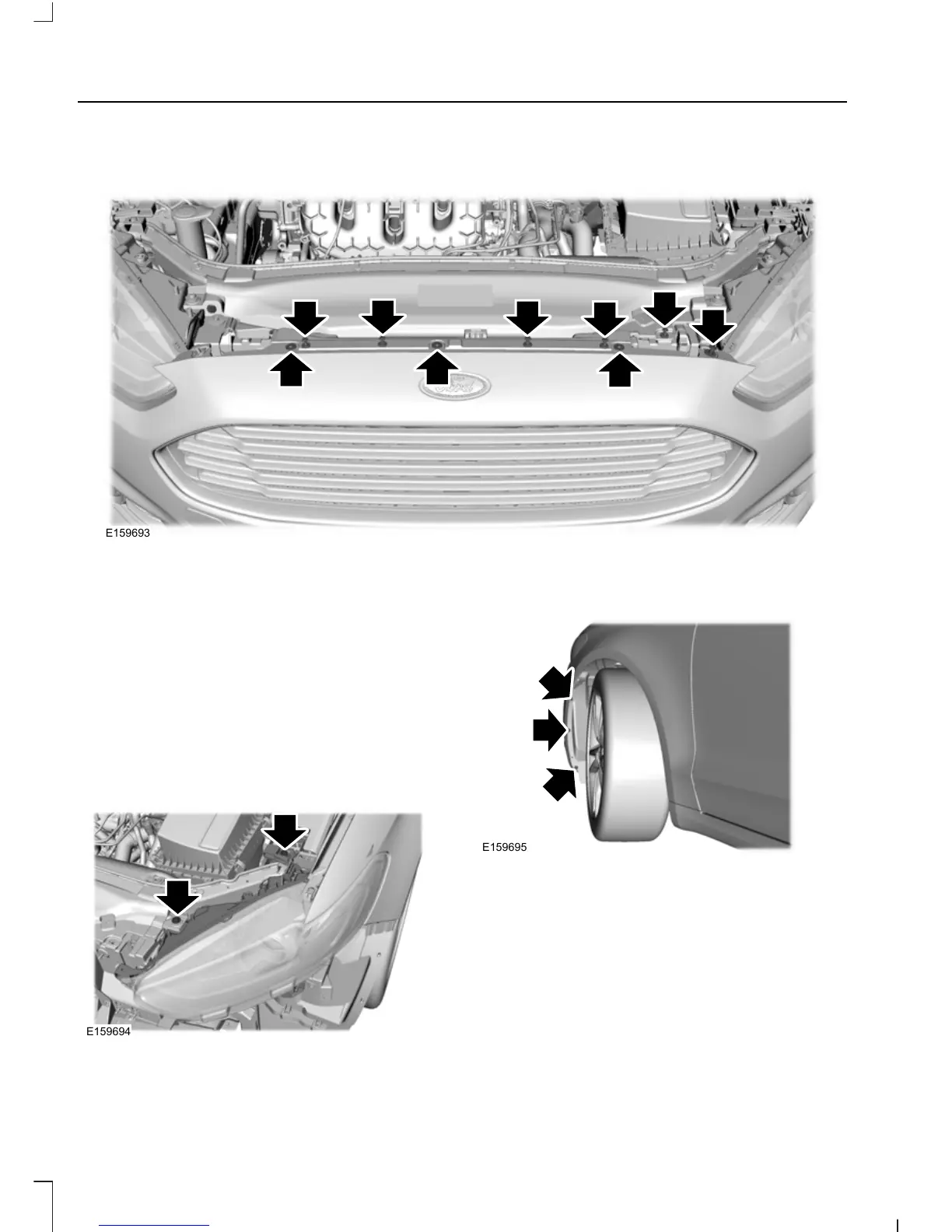

2. Remove the six push pins securing the
front fascia to the front trim cover.
3. Remove the three bumper cover upper
screws using a flat-bladed screwdriver.
4. Remove the push pin at the inboard
side of the headlamp you are servicing.
6. Remove the lower three wheel housing
fasteners by turning them
counterclockwise.
258
Fusion (CC7) Canada/United States of America, enUSA
Maintenance
