Reverse Lamp

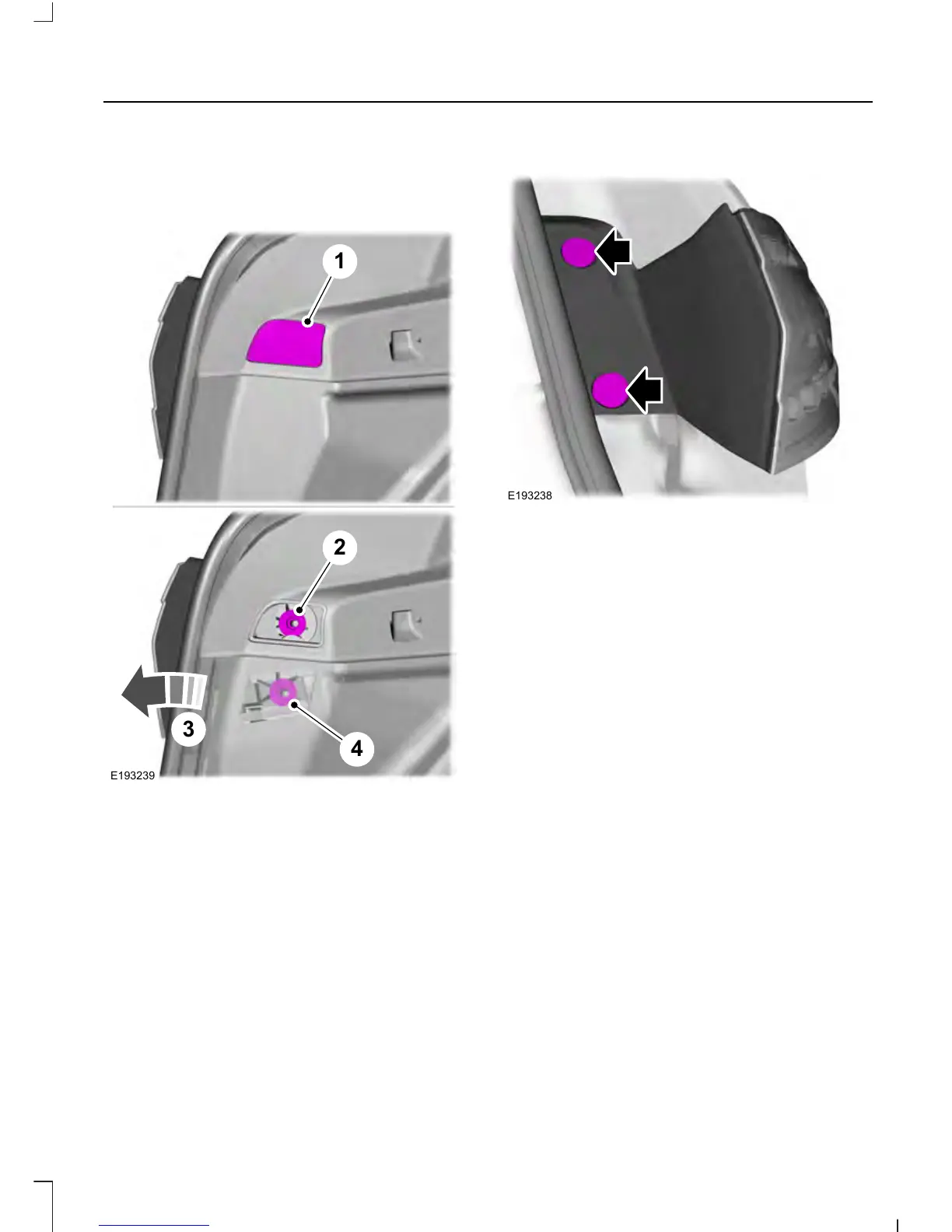

Remove Rear Lamp Assembly, 4-door
and 5-door
E193239
4
3
1
2
1. Carefully remove trim plate.
2. Remove the wing nut.
3. Carefully remove the luggage
compartment weather strip and gently
pull away the inner body side trim to
gain access to the second wing nut.
4. Remove the wing nut.
5. Gently pull the lamp assembly away
from the vehicle.
Remove Rear Lamp Assembly, Wagon
E193238
1. Carefully remove the screw caps and
remove the screws.
2. Gently pull the lamp assembly away
from the vehicle.
