Ford 2016 FOCUS - Under Hood Overview - 1.0 L Ecoboost

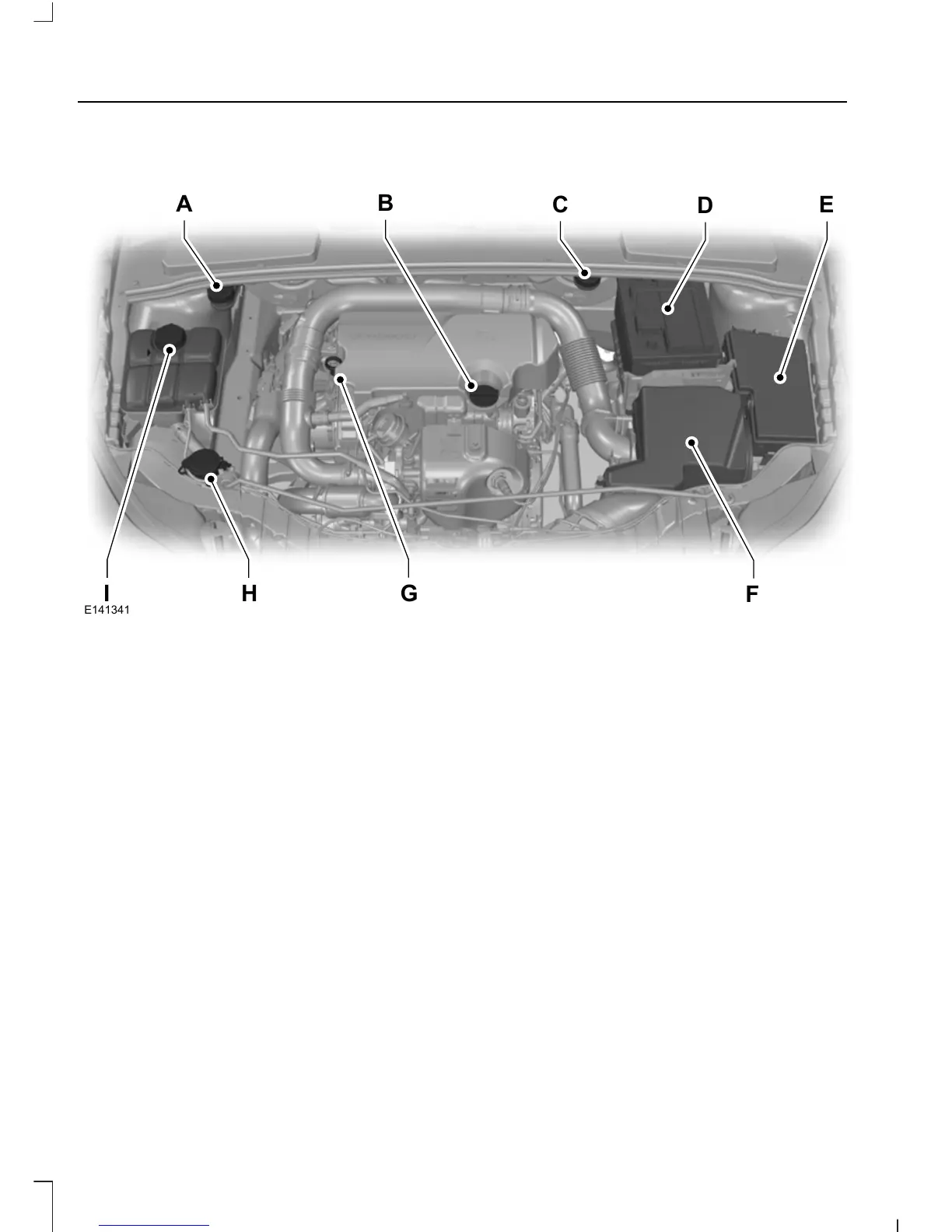

UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
A
I H
F
G
B
C
D
E
E141341
Brake and clutch fluid reservoir (right-hand drive). See Brake Fluid Check
(page 219).
A
Engine oil filler cap. See Engine Oil Check (page 216).B
Brake and clutch fluid reservoir (left-hand drive). See Brake Fluid Check (page
219).
C
Battery. See Changing the 12V Battery (page 220).D
Power distribution box. See Fuses (page 201).E
Air filter assembly. See Changing the Engine Air Filter (page 232).F
Engine oil dipstick. See Engine Oil Dipstick (page 216).G
Windshield washer fluid reservoir. See Washer Fluid Check (page 219).H
Engine coolant reservoir. See Engine Coolant Check (page 217).I
214
Focus (CDH) Canada/United States of America, enUSA, First Printing
Maintenance
