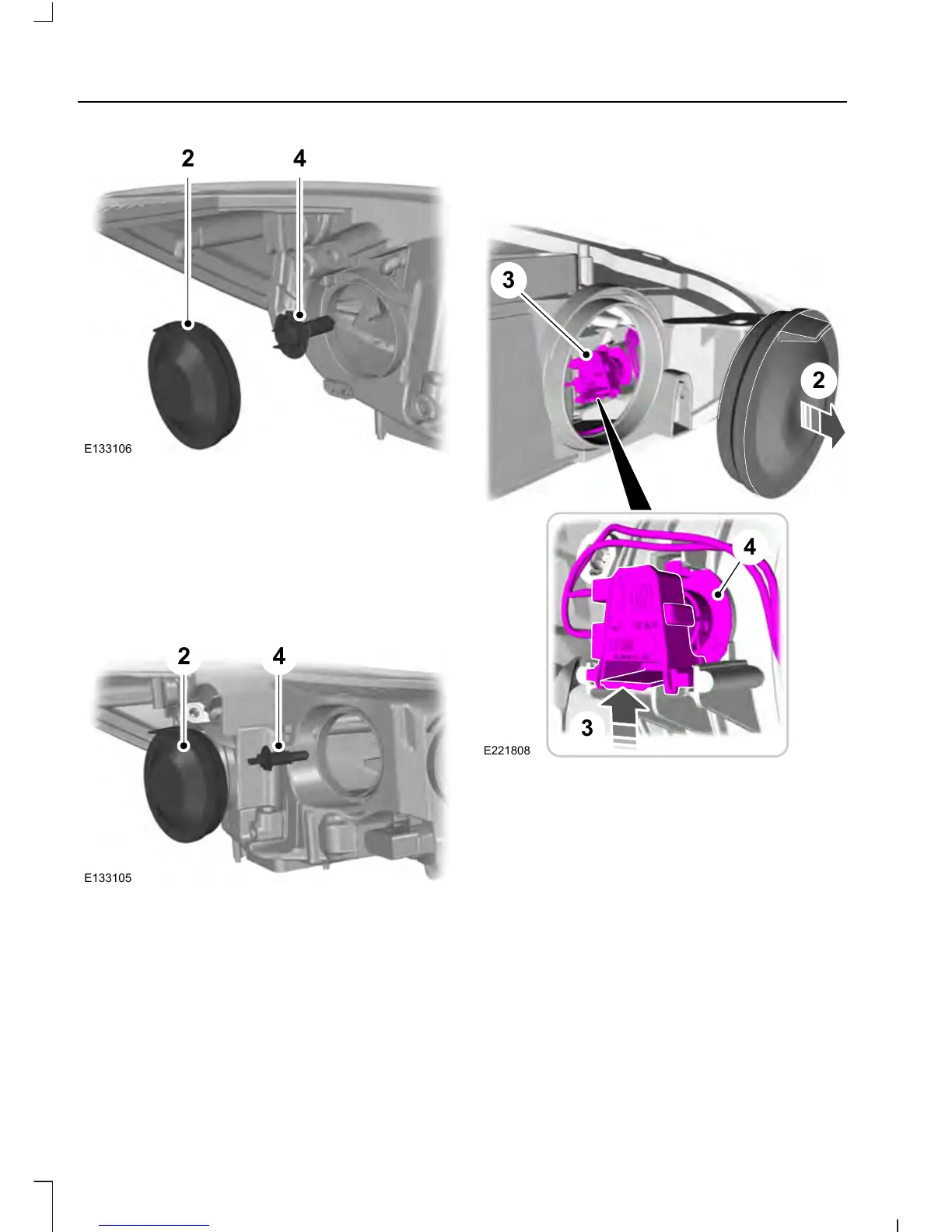

2. Carefully remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 224).
2. Carefully remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
HID Headlamps
If your vehicle has high-intensity discharge
headlamps, these lamps operate at a high
voltage. Contact an authorized dealer.
Cornering Lamp (If Equipped)
1. Remove the headlamp. See
Removing a Headlamp (page 224).
2. Carefully remove the cover.
3. Depress the clip to remove the bulb
holder.
4. Remove the bulb holder by pulling it
straight out.
5. Remove the bulb by pulling it straight
out.
Note: Do not touch the bulb glass.
Front Direction Indicator
1. Remove the headlamp. See
Removing a Headlamp (page 224).
226
Focus (CDH) Canada/United States of America, enUSA, First Printing
