Protected componentsFuse amp ratingFuse or relay number
Keep alive power.
10A
1
49
Horn.
20A
1
50
Not used.—51
Not used.—52
Power seats.
10A
1
53
Brake on off switch.
10A
2
54
ALT sensor.
10A
2
55
1
Micro fuse.
2
Dual micro fuse.
3
M-type fuse.
Power Distribution Box - Bottom

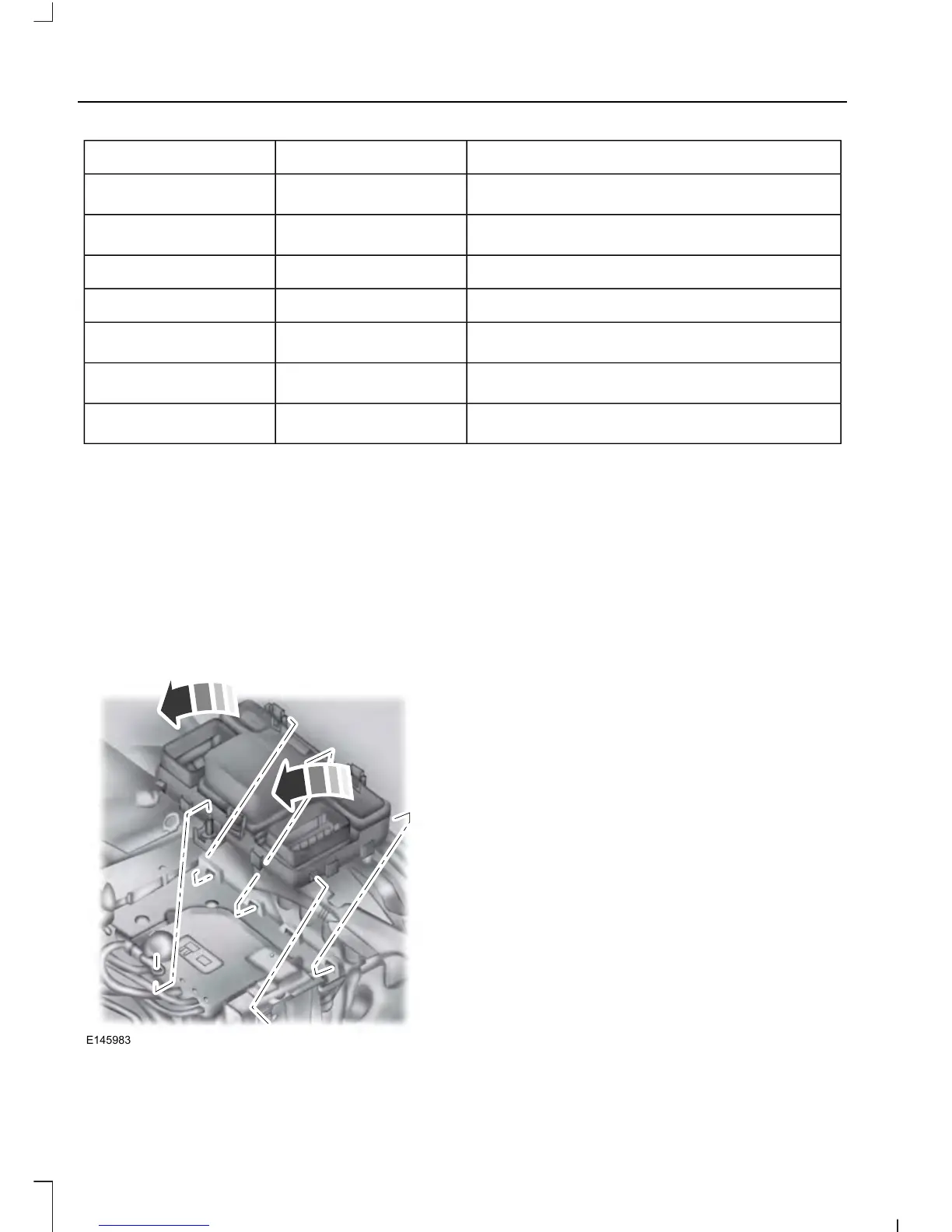

There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following:
1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box
from the cradle.
3. Move the fuse box toward the center
of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.
240
Fusion/Mondeo (CC7) Canada/United States of America, enUSA, First Printing
Fuses
