Ford ESCAPE 2021 - Page 353

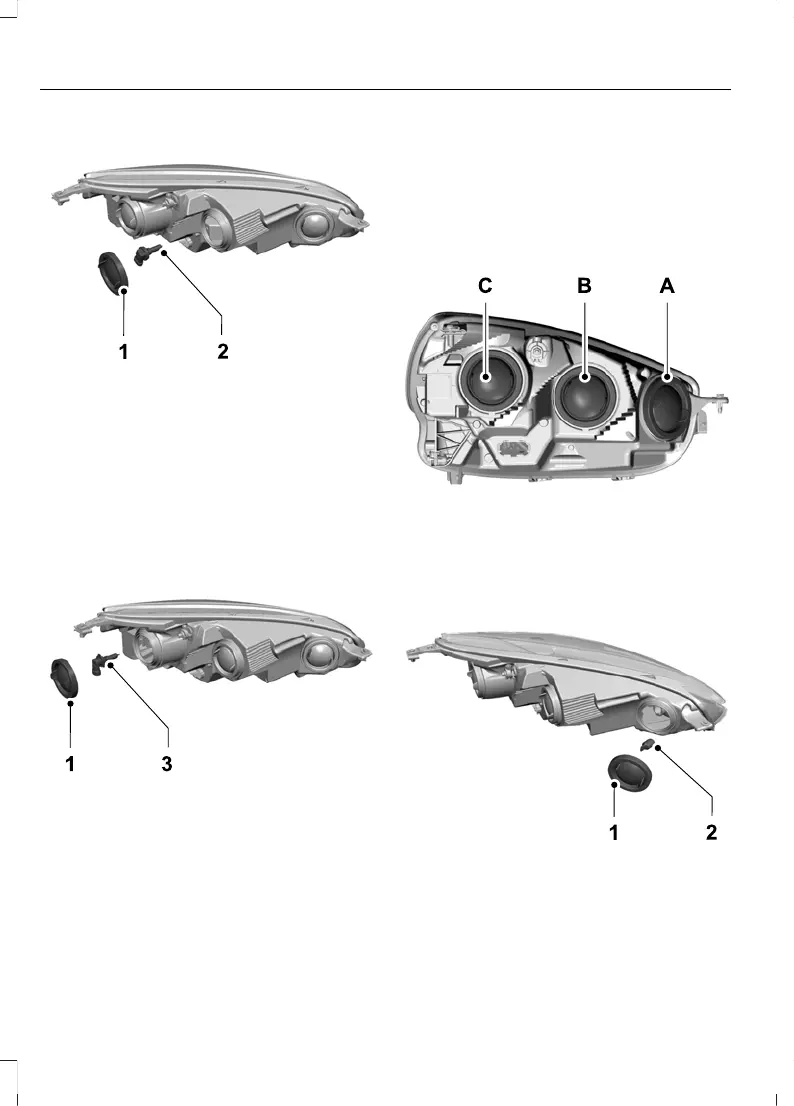

High beam headlamp
E307882
1. Remove service cap.
2. Remove the bulb from the headlamp
assembly by turning it
counterclockwise, then pull it straight
out.
3. Disconnect the electrical connector.
4. To install, reverse the removal
procedure.
Low beam headlamp
E307883
1. Remove service cap.
2. Disconnect the electrical connector.
3. Remove the bulb from the headlamp
assembly by turning it
counterclockwise, then pull it straight
out.
4. To install, reverse the removal
procedure.
Changing a Front Turn Signal Lamp
Bulb
Headlamp
E307881
Park/Turn lampA
High beam headlampB
Low beam headlampC
Park/Turn lamp
E307884
1. Remove service cap, if applicable.
2. Remove bulb from the headlamp
assembly by turning it
counterclockwise, then pull it straight
out.
350
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing
Maintenance
