Connector Circuit Reference
Instrument Cluster Module (ICM) C220a
DATC Module C228a (if equipped)
Function Selector Switch C294b — Manual Climate Control (if equipped)
Heated Backlight Power C402a
Heated Backlight Ground C402b
Driver Window Control Switch C504a
The defrost system will not shut off automatically — can be
turned ON and OFF with the defrost switch
ICM.
INSTALL a new ICM. REFER to Section 413-00.

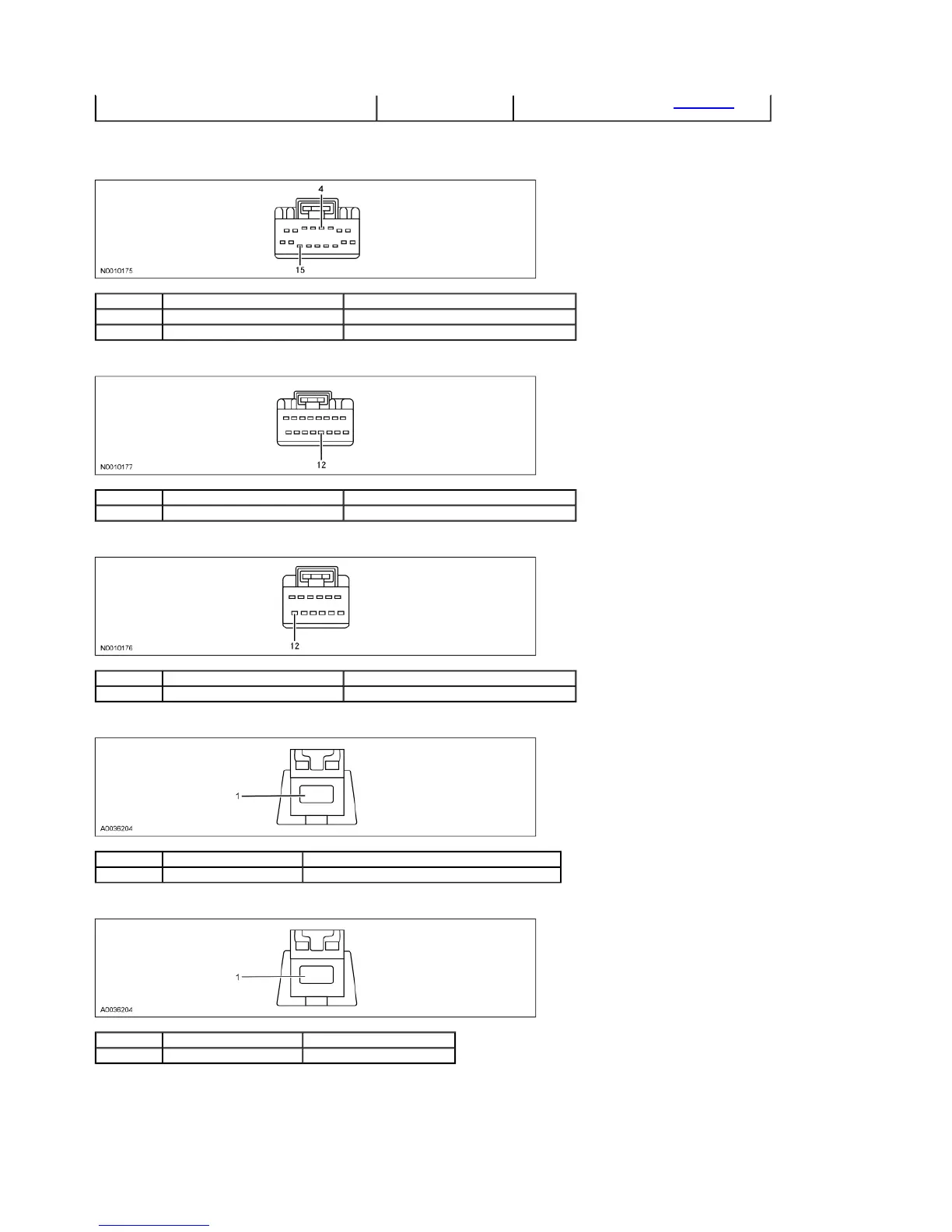

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
4 CKT 1009 (OG/YE) heated backlight relay Greater than 10,000 ohms to chassis ground and 0 volts.
15 CKT 688 (GY/LB) heated backlight ON/OFF Greater than 10,000 ohms to chassis ground and 0 volt.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
12 CKT 688 (GY/LB) heated backlight ON/OFF Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
12 CKT 688 (GY/LB) heated backlight ON/OFF Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 186 (BN/LB) power Greater than 10 volts with key ON and rear window defrost ON.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 1205 (BK) ground Less than 5 ohms to chassis ground.
2003 Explorer/Mountaineer Workshop Manual
