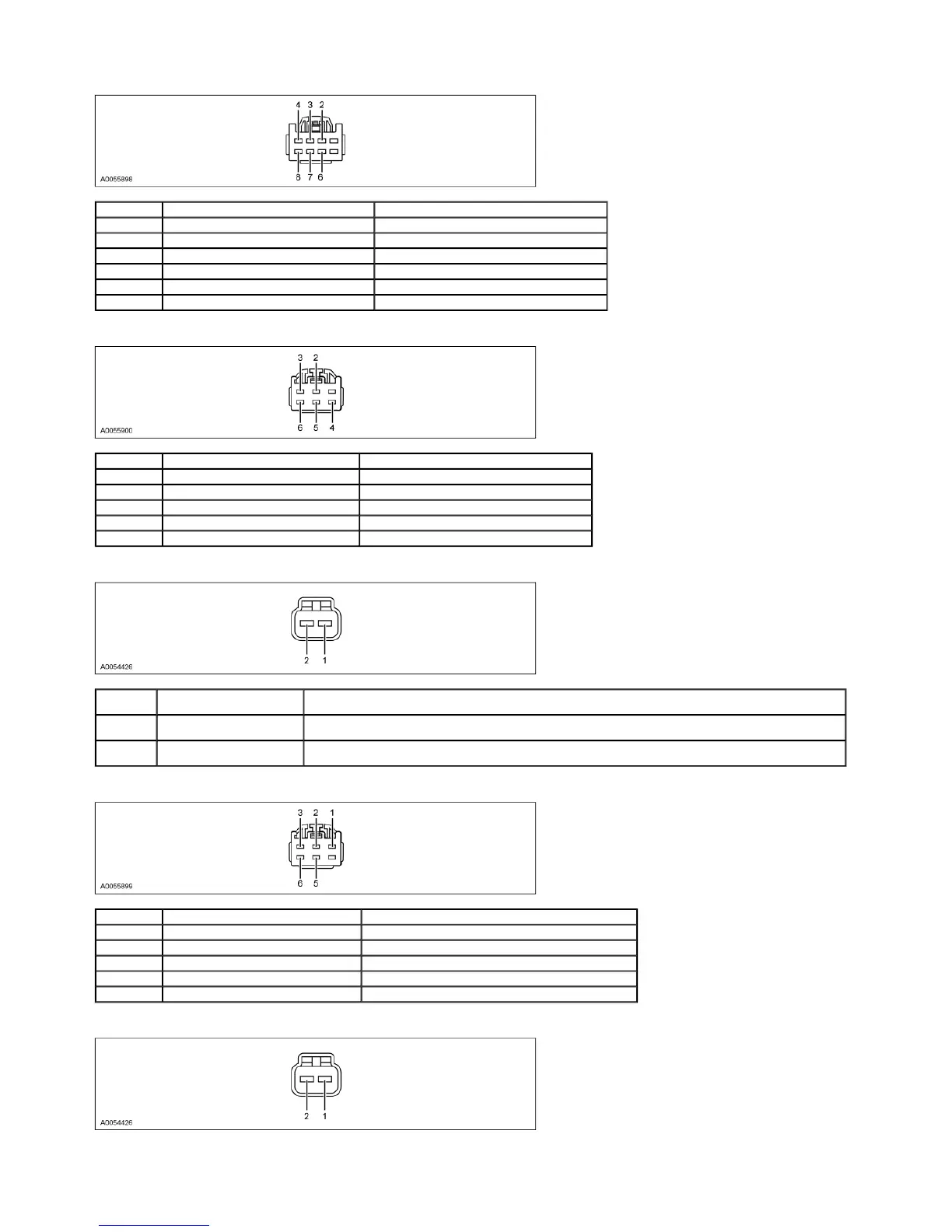

Driver Window Control Switch C504b
Driver Power Window Motor C524
Passenger Front Window Control Switch C604
Passenger Front Power Window Motor C608
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 1205 (BK) driver window control switch ground Less than 5 ohms to chassis ground.
3 CKT 314 (TN/LB) passenger front window down Greater than 10,000 ohms to chassis ground and 0 volts.
4 CKT 313 (WH/YE) passenger front window up Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 400 (LB/BK) accessory delay power feed Greater than 10 volts with the key ON.
7 CKT 991 (TN/LB) driver window down Greater than 10,000 ohms to chassis ground and 0 volts.
8 CKT 992 (WH/BK) driver window up Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 320 (RD/BK) passenger rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 319 (YE/BK) passenger rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
4 CKT 170 (RD/LB) lock-out power feed Greater than 10,000 ohms to chassis ground and 0 volts.
5 CKT 317 (GY/OG) driver rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 316 (YE/LB) driver rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number
(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 992 (WH/BK) driver window
up
Less than 5 ohms to chassis ground. Greater than 10 volts with the key ON and the driver window control switch depressed in the UP
position with the key ON.
2 CKT 991 (TN/LB) driver window
down
Less than 5 ohms to chassis ground. Greater than 10 volts with the key ON and the driver window control switch depressed in the
DOWN position with the key ON.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 314 (TN/LB) passenger front window down Greater than 10,000 ohms to chassis ground and 0 volts.
2 CKT 334 (RD/YE) passenger front window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 170 (RD/LB) lock-out power feed Greater than 10 volts with the key ON and the lock out feature OFF.
5 CKT 333 (YE/RD) passenger front window up Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 313 (WH/YE) passenger front window up Greater than 10,000 ohms to chassis ground and 0 volts.
2003 Explorer/Mountaineer Workshop Manual
