Ford Explorer 2003 - Pinpoint Test H: All Power Windows Are Inoperative

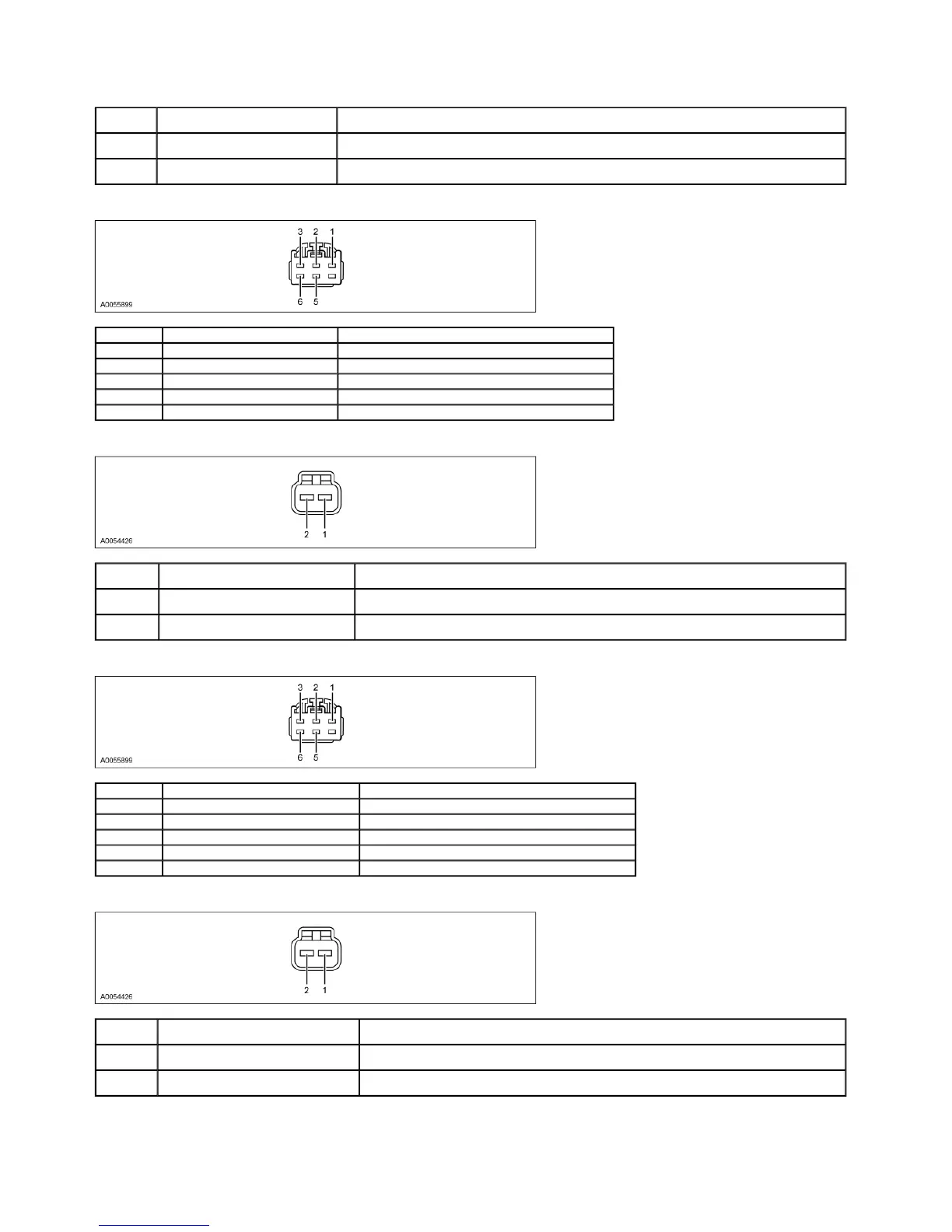

Driver Rear Window Control Switch C701
Driver Rear Power Window Motor C703
Passenger Rear Window Control Switch C801
Passenger Rear Power Window Motor C803
Pinpoint Test H: All Power Windows Are Inoperative
Pin Number
(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 333 (YE/RD) passenger front window
up
Less than 5 ohms to chassis ground. Greater than 10 volts when passenger front window control switch is depressed in the
UP position with the key ON.
2 CKT 334 (RD/YE) passenger front window
down
Less than 5 ohms to chassis ground. Greater than 10 volts when passenger front window control switch is in the DOWN
position with the key ON.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 316 (YE/LB) driver rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
2 CKT 885 (YE/LB) driver rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 170 (RD/LB) lock-out power feed Greater than 10 volts with the key ON and the lock out feature OFF.
5 CKT 884 (YE/BK) driver rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 317 (GY/OG) driver rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number
(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 881 (BN) driver rear window motor UP Less than 5 ohms to chassis ground. Greater than 10 volts when driver rear window control switch is depressed UP with
the key ON.
2 CKT 882 (BN/YE) driver rear window motor
DOWN
Less than 5 ohms to chassis ground. Greater than 10 volts when driver rear window control switch is depressed DOWN
with the key ON.
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 320 (RD/BK) passenger rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
2 CKT 882 (BN/YE) passenger rear window down Greater than 10,000 ohms to chassis ground and 0 volts.
3 CKT 170 (RD/LB) lock-out power feed Greater than 10 volts with the key ON and the lock-out feature OFF.
5 CKT 881 (BN) passenger rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 319 (YE/BK) passenger rear window up Greater than 10,000 ohms to chassis ground and 0 volts.
Pin Number
(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 881 (BN) passenger rear window motor up Less than 5 ohms to chassis ground. Greater than 10 volts when passenger rear window control switch is depressed
DOWN with the key ON.
2 CKT 882 (BN/YE) passenger rear window motor
down
Less than 5 ohms to chassis ground. Greater than 10 volts when passenger rear window control switch is depressed UP
with the key ON.
