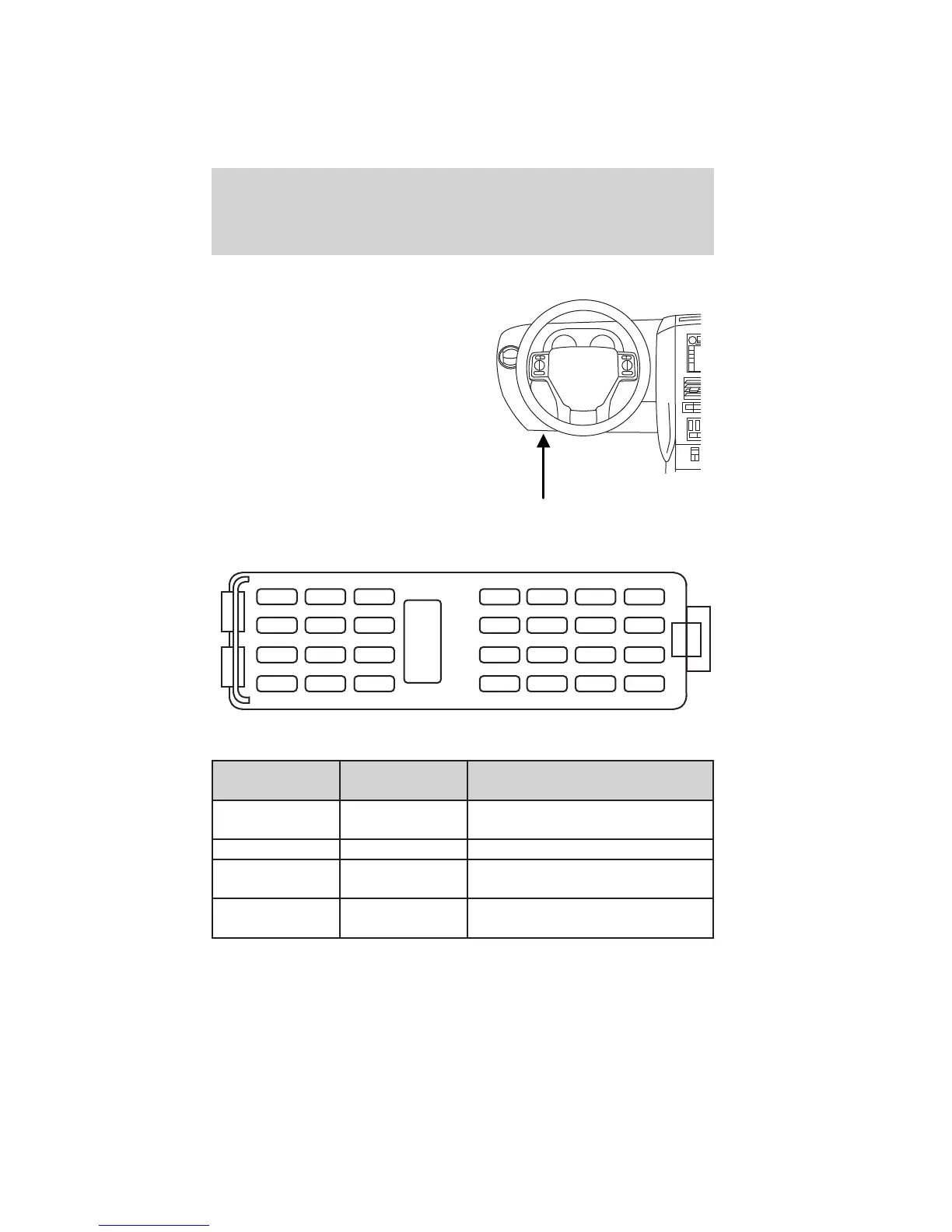

Passenger compartment fuse panel
The fuse panel is located below the
instrument panel on the driver’s
side.
To remove a fuse use the fuse puller tool provided on the fuse panel box.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 20A Moon roof, Adjustable pedals,
Memory seats, Lumbar motor
2 5A Microcontroller power
3 20A Radio, Navigation amplifier, GPS
module
4 10A On-board diagnostic (OBD II)
connector
CB1
4
3
2
1
8
7
6
5
12
11
10
9
16
15
14
13
20
19
18
17
24
23
22
21
28
27
26
25
Roadside Emergencies
309
2010 Explorer (exp)
Owners Guide (own2002), 1st Printing
USA (fus)
