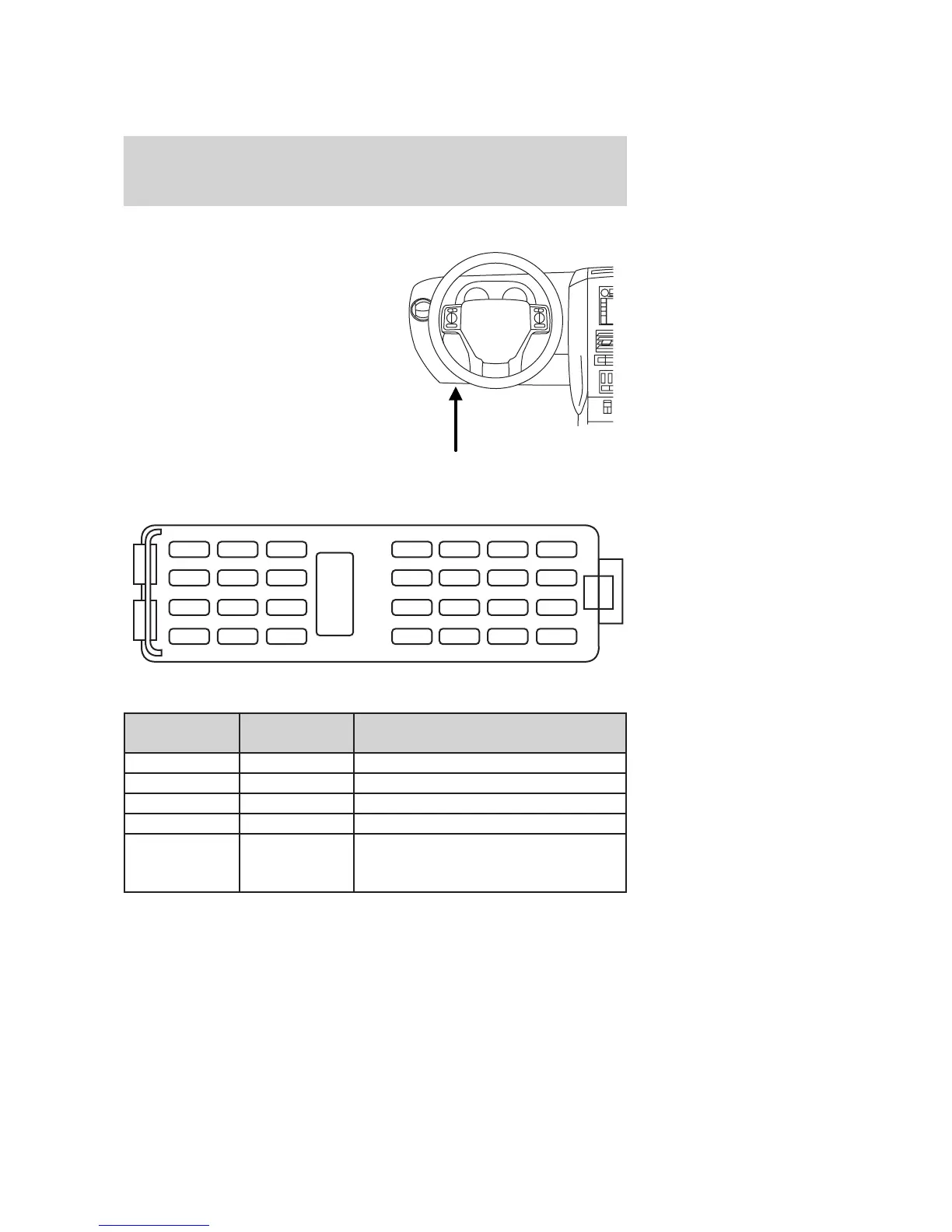

Passenger compartment fuse panel
The fuse panel is located below the
instrument panel on the driver’s
side.
To remove a fuse use the fuse puller tool provided on the fuse panel box.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 20A Moon roof, Adjustable pedals
2 5A Microcontroller power (SJB)
3 20A Radio
4 10A OBD II connector
5 5A Moonroof, Power down back window,
Door lock switch illumination,
Rearview mirror with microphone
CB1
4
3
2
1
8
7
6
5
12
11
10
9
16
15
14
13
20
19
18
17
24
23
22
21
28
27
26
25
