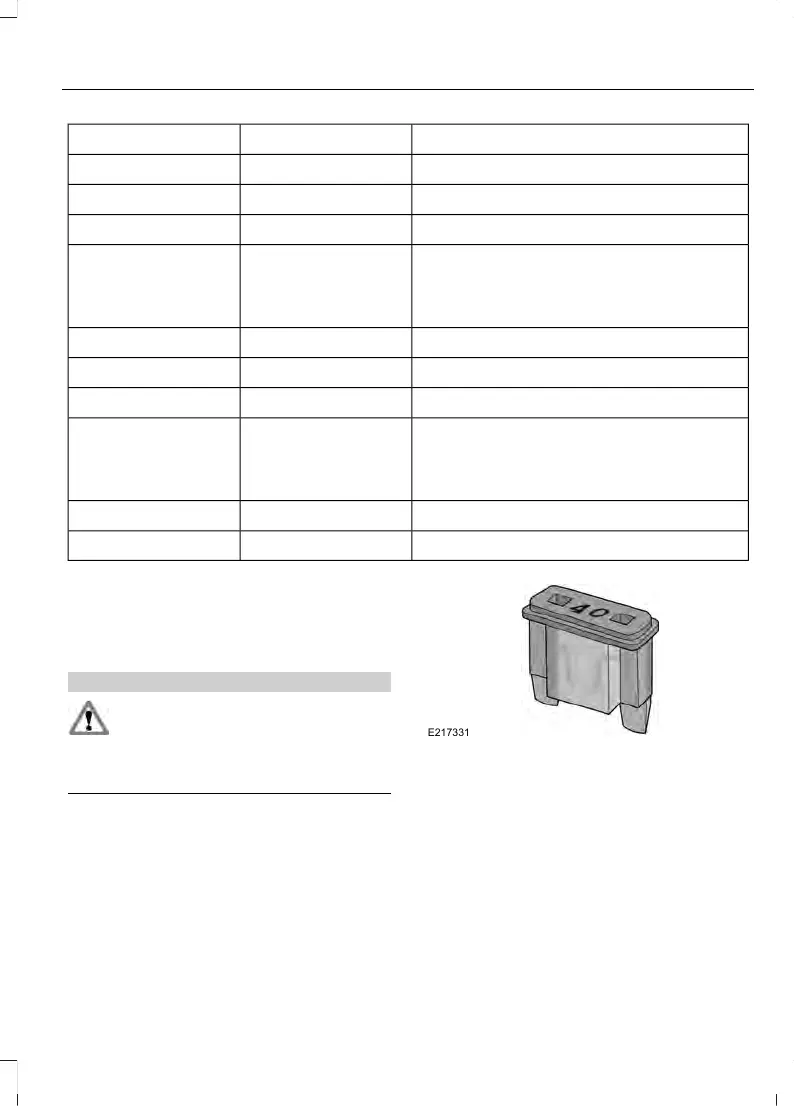

Protected componentsFuse amp ratingFuse or relay number
Not used.30A29
Not used.30A30
Adjustable pedal switch and motor.15A31
Multi-function display.10A32
Global position system.
SYNC.
Radio frequency receiver.
Radio.20A33
Run-start relay.30A34
Restraints module.5A35
360 camera module.15A36
Heated steering wheel module.
Rear-view mirror.
Rear heated seats.
Power distribution box run-start fuses.20A37
Rear window switches and motors.30A Circuit breaker.38
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
317
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201607, Second Printing
