Protected ComponentsFuse RatingFuse or Relay

Number

Air conditioning clutch diode.—D2

Not used.—D3

Not used.—C1

Mini fuse.

J case fuse.

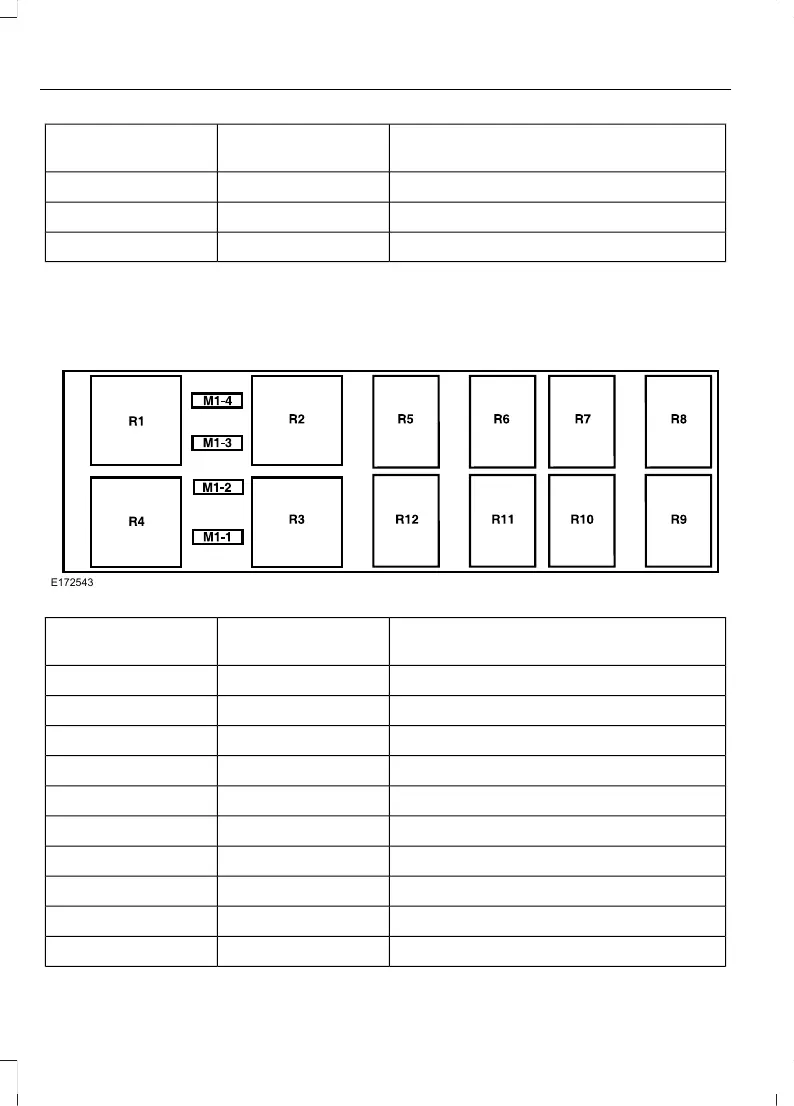

UPS Power Distribution Box 1

E172543

Protected ComponentsFuse RatingFuse or Relay

Number

Powertrain control module.RelayR1

Daytime running lamps.RelayR2

Starter motor.RelayR3

Blower motor.RelayR4

Horn.RelayR5

Fuel pump.RelayR6

Starter ground.RelayR7

Trailer tow parking lamps.RelayR8

Backup lamps.RelayR9

Hydromax brake on/off relay.RelayR10

Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
