Protected ComponentsFuse RatingFuse or Relay
Number
Not used.RelayR11
Not used.RelayR12
Hydromax brake on/off relay.10AM1-1
Brake shift Interlock (Column shift).10AM1-2
Power brake assist module (Hydromax).5AM1-3
Powertrain control module.10AM1-4

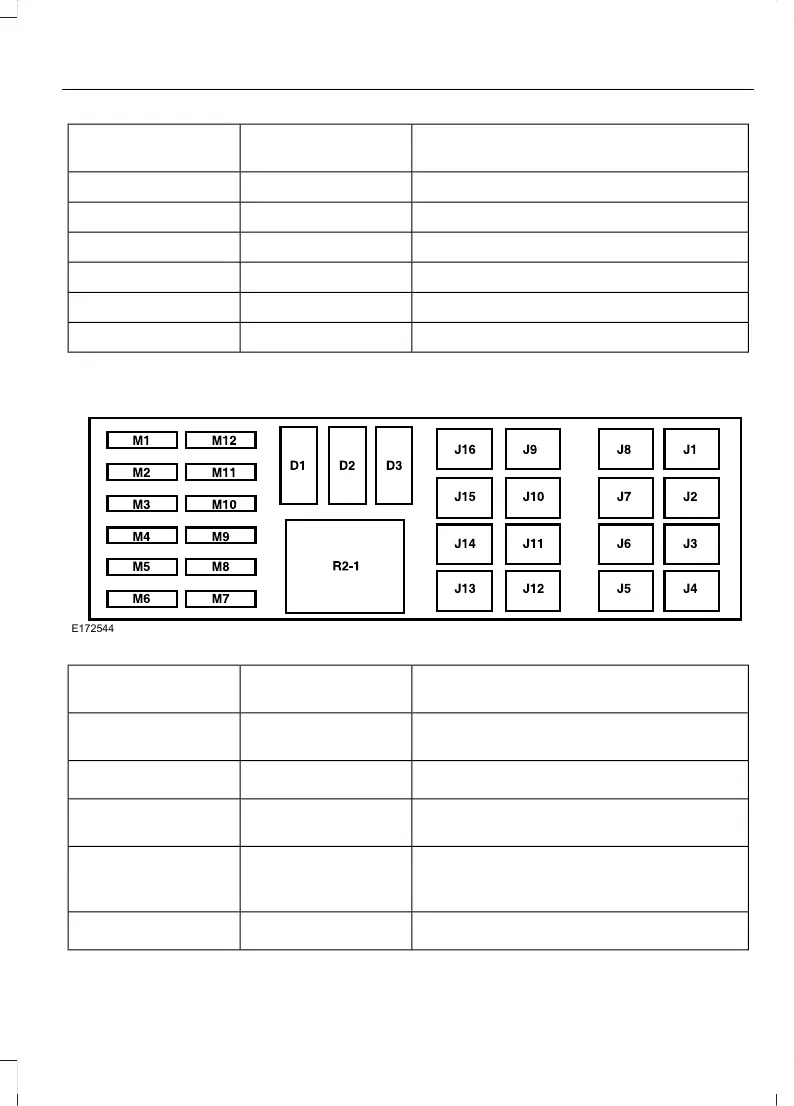

UPS Power Distribution Box 2
E172544
Protected ComponentsFuse RatingFuse or Relay
Number
Backup lamp feed.
25A
1
M1
Trailer tow backup lamp feed.
Daytime running lamps.
20A
1
M2
4channel anti-lock brake system module
(Hydromax).
30A
1
M3
Powertrain control module run/start.
20A
1
M4
Fuel pump relay coil.
Fuel pump diode.
Brake lamps.
10A
1
M5
77
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
