Ford Pro - Anchoring Requirements; Anchor Screw Type and Torque; Anchoring Hole Location and Count

*"-$%)$($!,%".&!+)
!"##$%!&'()*"+,+)
#*"
*%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
)
)

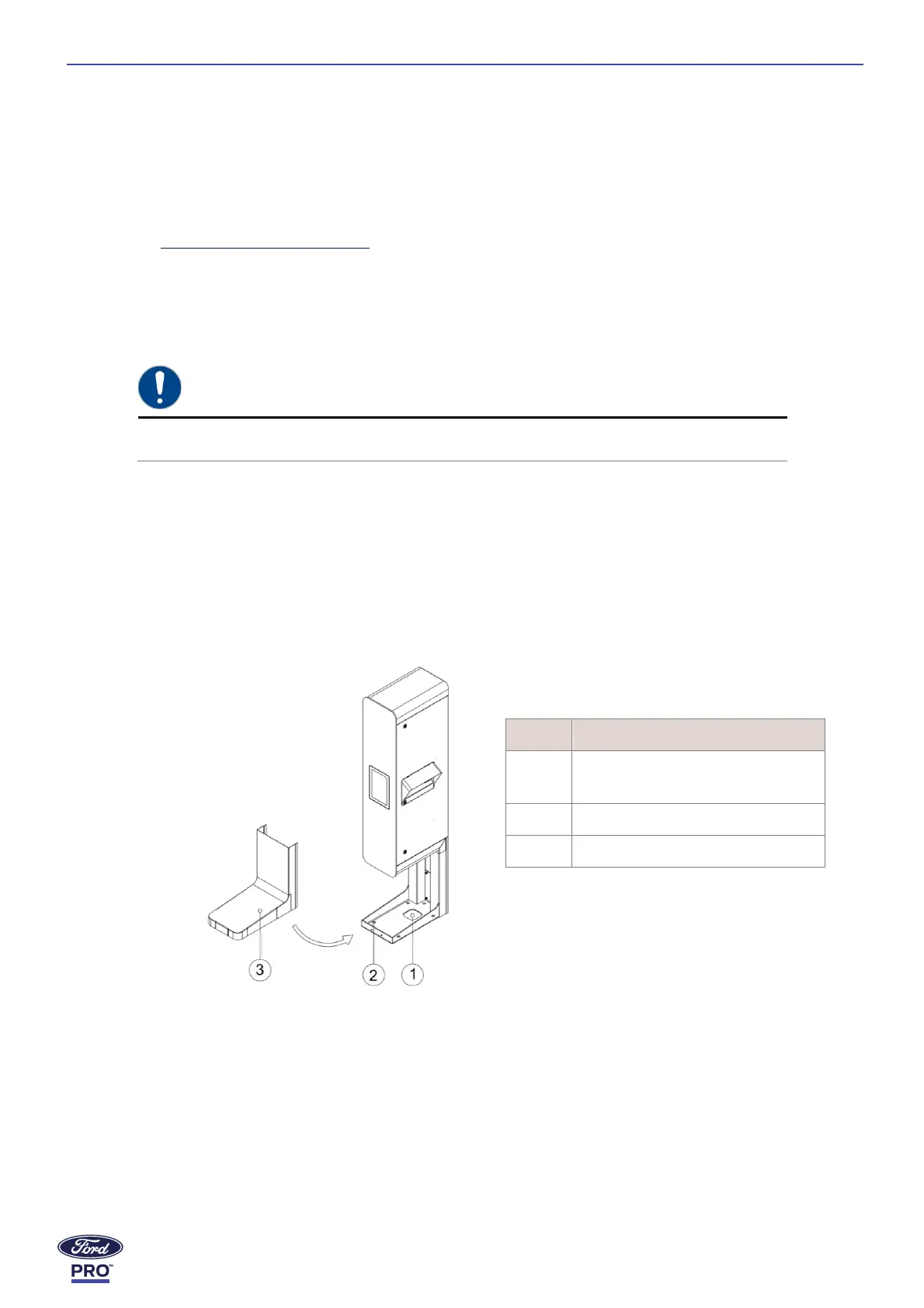

Ref. Description
1
Access for DC cables + ground
cable + communications +
auxiliaries
2 Anchoring holes 6x
3 Recharging post lid
+
Anchoring requirements
To anchor the equipment, it is recommended to use M16 A4-70 stainless screws for high
load solicitations, being accepted both expansive anchor bolts and chemical. Please, secure
them applying the recommended torque for mechanical connections (see section
“TORQUE AND SCREW SIZING”).
The following figure shows the location of the anchorage holes. Values are summarized in
the table below.
The isolated posts
[2]
must be anchored to the foundation using a total of 6 anchors.
NOTICE
It is the customer’s responsibility to dimension correctly posts anchoring to the
foundation, guaranteeing stability towards horizontal actions.
Anchoring holes are located at the footing of the post. For a correct fixation of the posts to the
foundation, use a total of 6 anchors.
There is a lid that covers the access to post’s conduits and anchors. It is recommended to
mount it last, guaranteeing at all times that moisture, water or any other kind of
particles cannot enter and cause damage to the charger.
The following figures show the location and diameter of the anchoring holes of the posts, as
well as an anchoring detail.
[2]
In case the project includes a posts skid, Power Electronics will provide additional anchoring instructions.
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
