Ford Taurus 2006 - High-Current Fuses

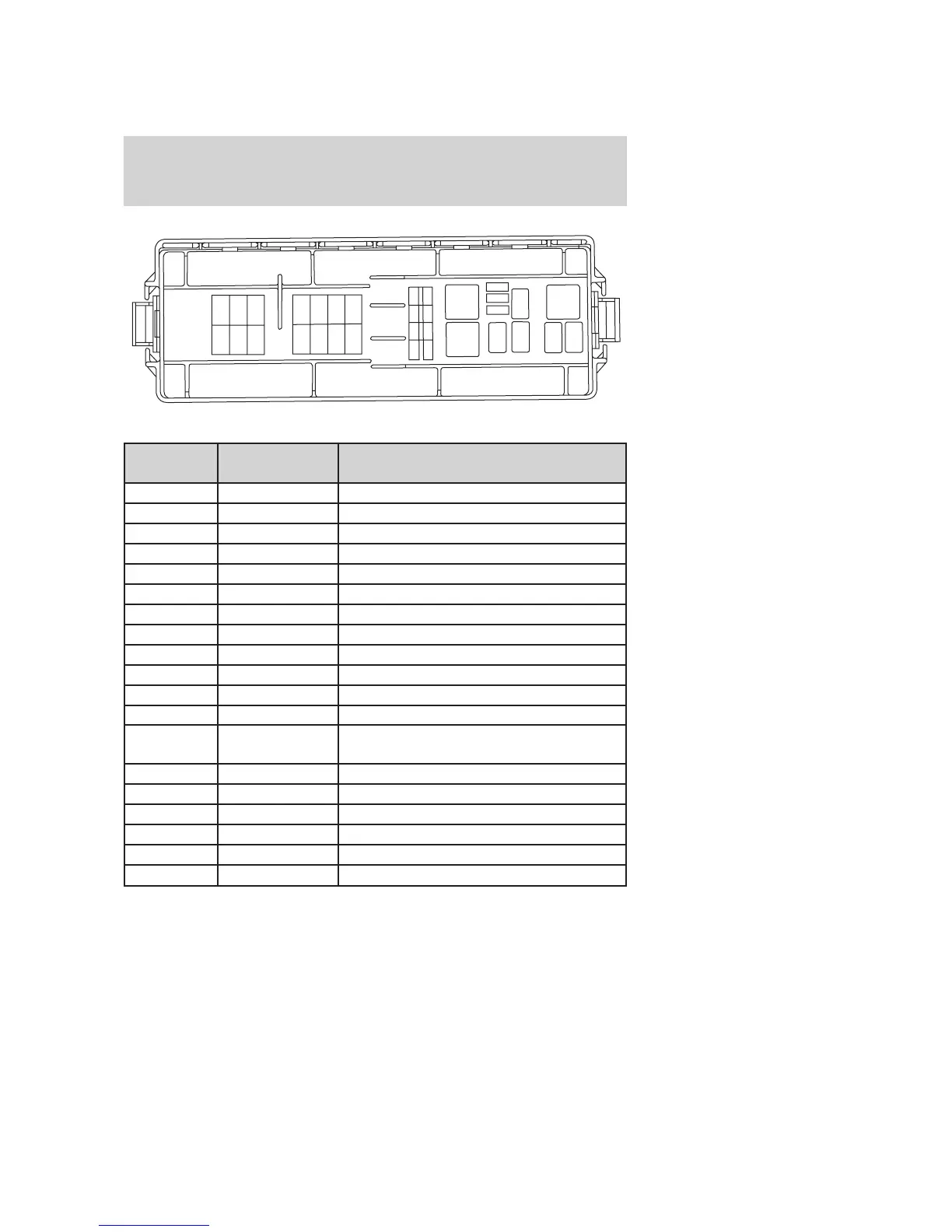

The high-current fuses are coded as follows.
Fuse/relay
location
Fuse amp
rating
Power distribution box description
1 60A** Fuse junction panel
2 30A** Powertrain Control Module (PCM)
3 60A** Fuse junction panel
4 10A CB Low speed cooling fan
5 40A** Cooling fan (main)
6 — Not used
7 40A** Starter relay, Ignition switch
8 — Not used
9 20A** Cooling fan (passenger side)
10 20A** Cooling fan (driver side)
11 50A** Rear defrost
12 — Not used
13 40A** Anti-lock Brake System (ABS) module
pump feed
14 — Not used
15 20A* ABS module valve solenoid
16 20A* Fuel pump relay
17 20A* CD
18 10A* A/C clutch relay, PCM keep alive power
19 — Not used
