WARNING
An incorrectly mounted hose or
a hose that comes in contact
with moving parts of the bicycle,
can significantly degrade braking
performance and cause serious
accidents.
To adapt the frames or forks to the
various diameters of brake rotors avai-
lable, FORMULA supplies different
adapters which can be mounted
between the fork or frame and the
brake caliper.
CAUTION
Only a correct mounting of the
system and it’s various support ele-
ments ensures the safety of the
cyclist and the exceptional perfor-
mance of FORMULA disk brakes.

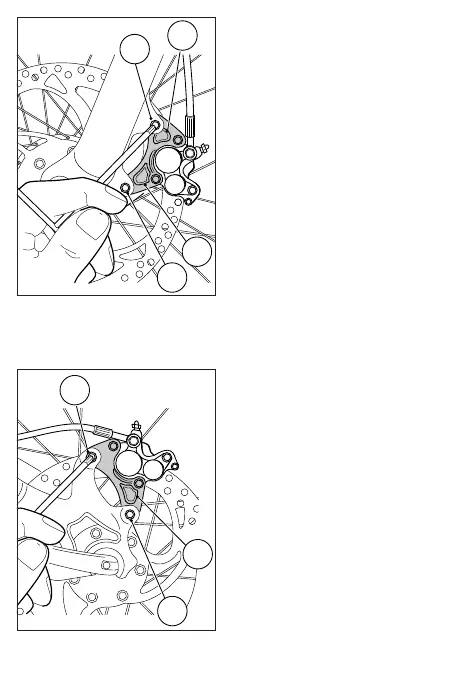

Mount the front caliper on the fork
frame by using only screws A (fig.5)
that come with the system, making
sure that the front caliper is the one
with double lightening slots B and
the inscription “FRONT”.
Mount the rear caliper on the fork
frame by using screws C (Fig.6)
that come with the system, making
sure that the rear caliper is the one
with a single lightening slot and the
inscription “REAR”.
-First apply a light adhesive on the
screws and fix at 9Nm ±5% torque.
WARNING
Never install the Formula brake
system with adapters that are
not supplied by Formula. This
will void the warranty. To avoid
serious accidents use only
parts made by Formula and
Fig. 5
