Formula T1 - Two Piece Brake Disc with Center Lock Rotor; Monolithic Brake Disc with Center Lock Adapter

23

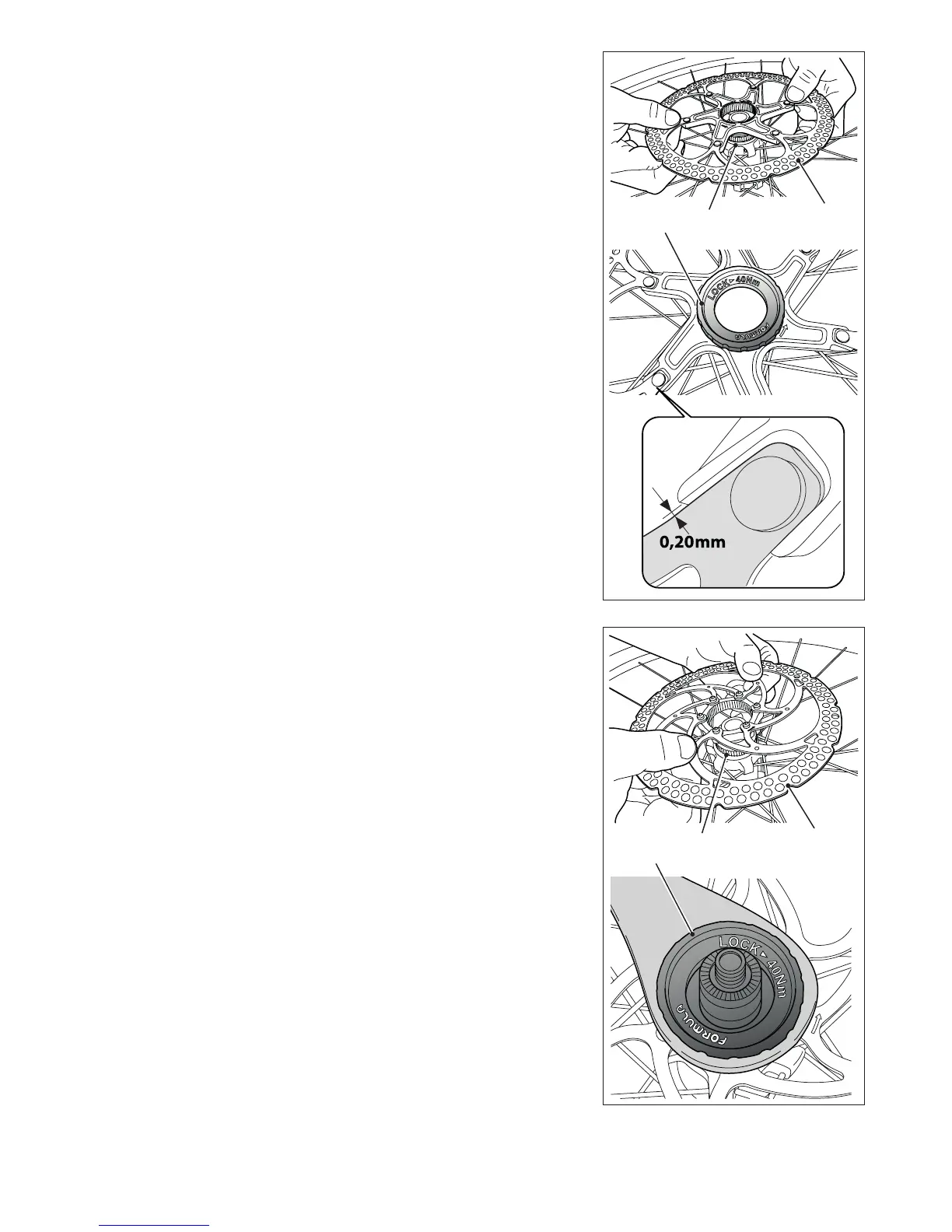

TWO PIECE BRAKE DISC WITH CENTER LOCK ROTOR
Place the hole of the disc 1 in the splined hub 2 pushing it
fully into place.
Place it with the markings facing the operator.
Fully tighten the ring nut 3 using the special wrench speci-
fied below.
Tighten the ring nut to 40Nm
±5%.
In the split disc, check the play in the mating point between
thebrakediscrotor’sarmsandtheseatsinsidethediscon
a regular basis
Force the disc in one direction and insert graduated rods of
a thickness gauge in the empty space on the opposite side.
FORMULASRLconsidersaplaythatisthesumof0.20 mm
as shown in the figure as acceptable.
Replacethebrakediscifthisvalueisnotpresent.
MONOLITHIC BRAKE DISC WITH CENTER LOCK
ADAPTER
Place the hole of the disc 1 in the splined hub 2 pushing it
fully into place.
Place it with the markings facing the operator.
Fully tighten the ring nut 3 using the special wrench.
Tighten the ring nut to 40Nm
±5%.
If the disc needs to be replaced, hold the adapter in place
and tighten the six screws crosscrossing using a torque set-
ting of 4,5Nm
±5%.
AlwaysuseoriginalscrewswithLoctite®.
3
2
1
3
2
1
