2 Physical Set Up

The following steps will walk you through the initial setup of your radar for bench testing:

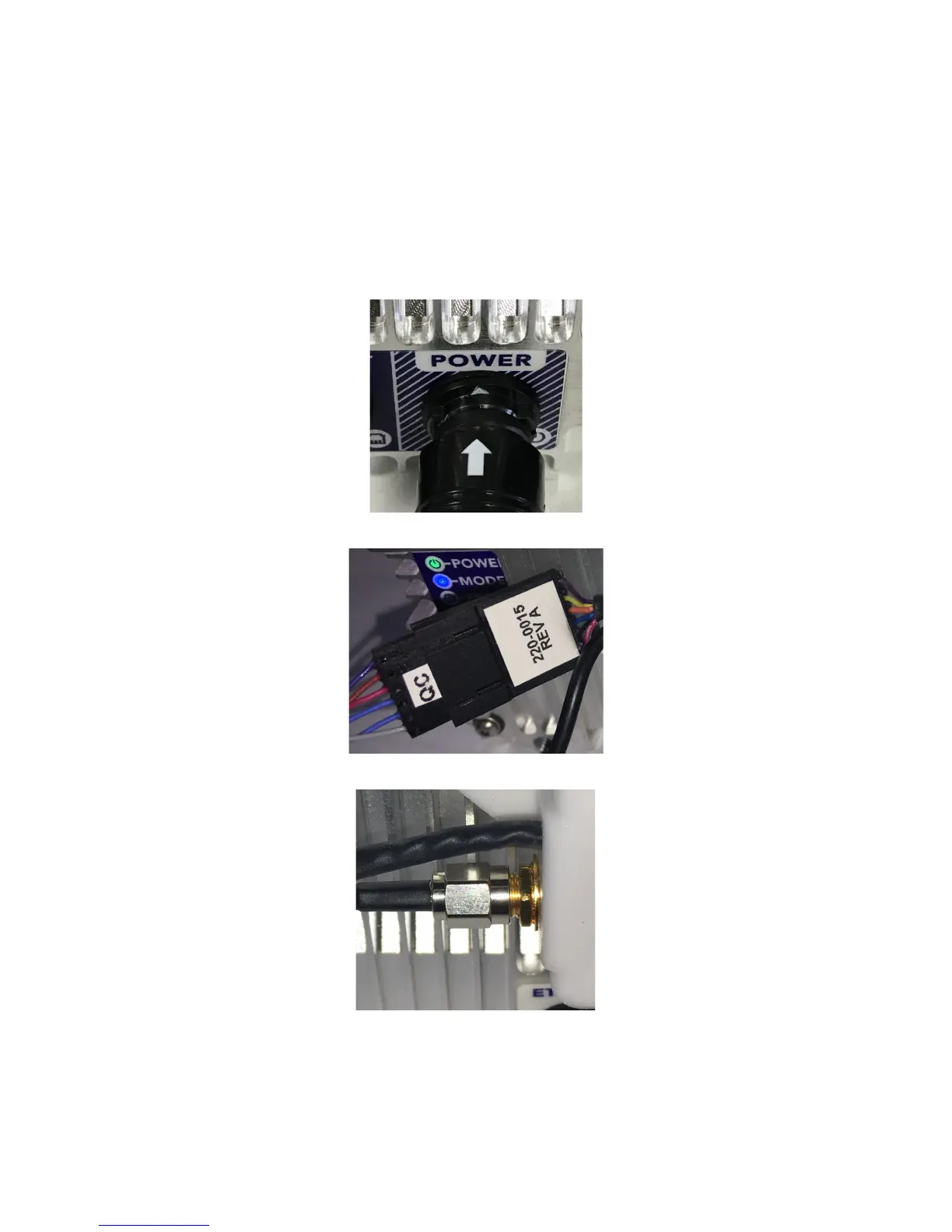

1. Attach the supplied Ethernet and power cables to the back of the radar unit

a. Be sure to line up the arrows on the connectors as shown:

b. Connect the flat 6-pin connector to the INS unit, as shown:

2. Connect the GPS antenna to the INS unit by screwing it onto the SMA connector

3. Plug in the external power supply to a wall outlet

a. Use the other end to plug into the power cable for the radar
