Fortinet FortiGate 30D - Device Guide: POE Models

1514

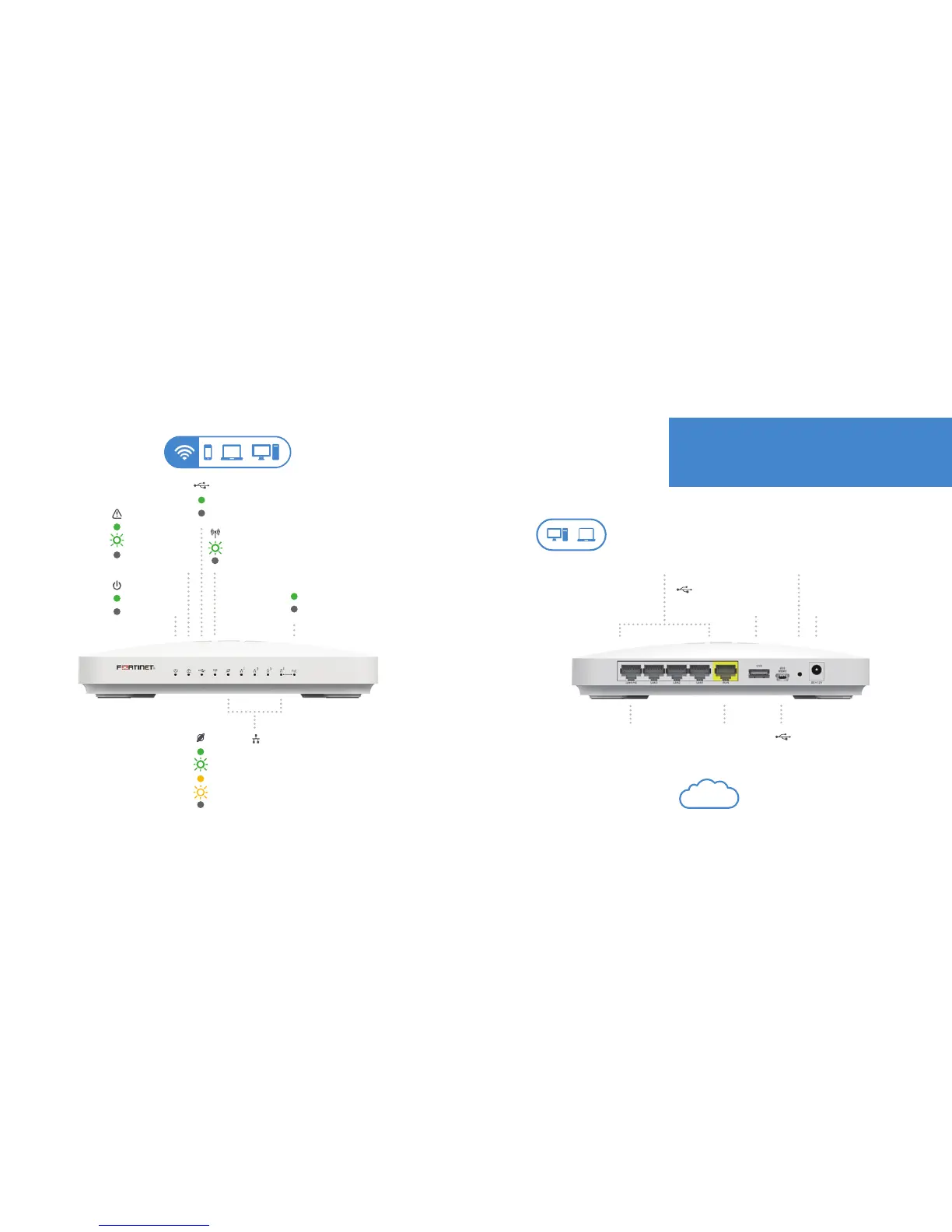

USB (USB-A)
USB server ports
WAN (RJ-45)
FortiASIC-accelerated
Ethernet port
LAN Ports 1 - 4 (RJ-45)
FortiASIC-accelerated switched
Ethernet ports for connection to
your network & the internet
USB MGMT (USB-B)
USB client port for
management
Reset Button
Press and hold when Status
-&%nBTIJOHUPSFTFUEFWJDF
to factory defaults
DC Power Jack
Device Guide
FortiGate/FortiWiFi 30D PoE Models Only
Status
Normal
Reset Window
Booting up
WiFi (Wireless models only)
Active
Inactive
Power
On
Off
USB (USB-A)
Inserted
Not inserted
PoE
PD connected
PD not connected
PoE LAN Port 4
802.af, up to 15.4 W
Internet
WAN & LAN Ports 1 - 4
1G Link up
1G Link up & activity
10M/100M Link up
10M/100M Link up & activity
No Link
