QuickStart Guide
FortiGate 80F/81F/Bypass

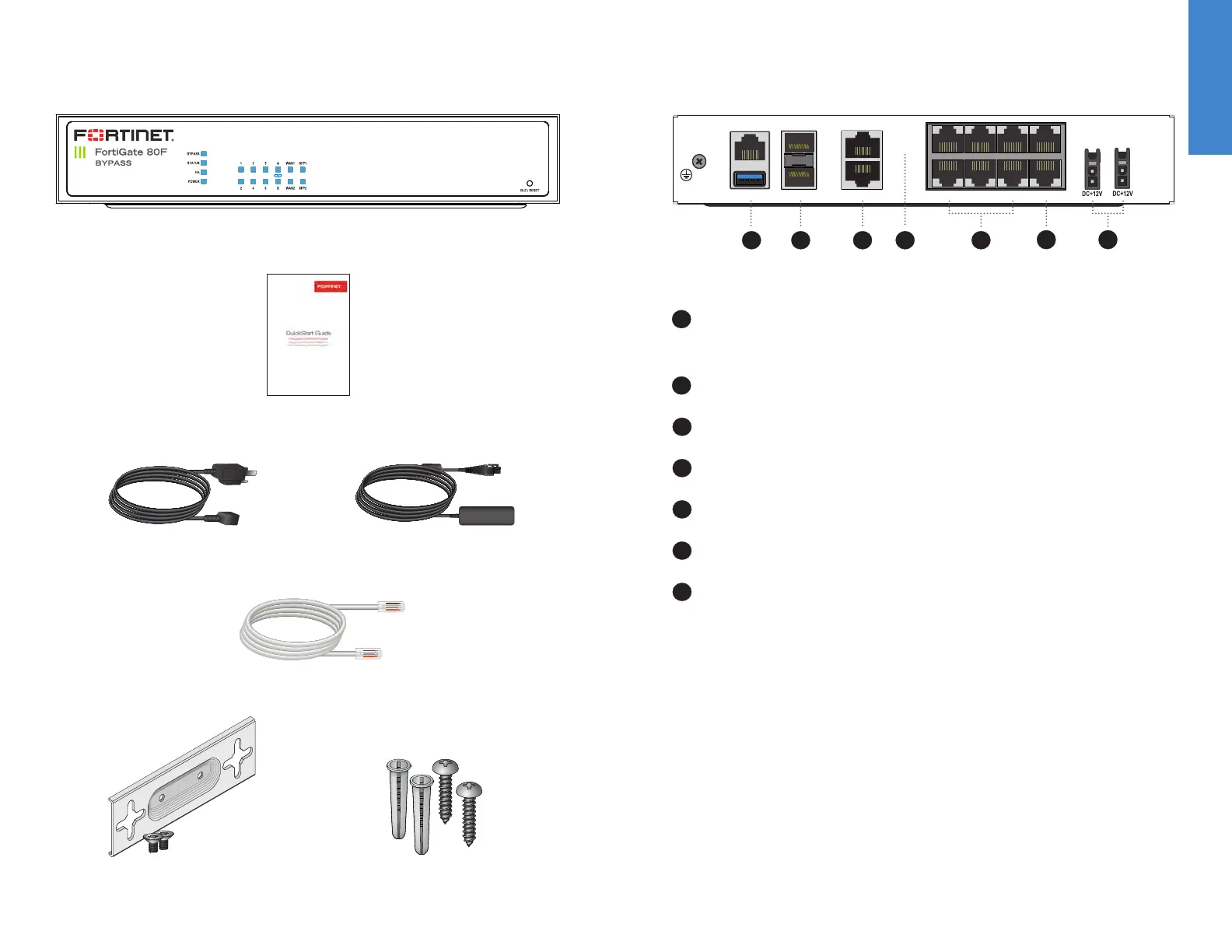

Box Includes - FG 80F Series
Wall Mount Hardware
(Not included, sold separately)
Wall Mount Kit
(Not included, sold separately)
12V DC Power AdapterPower Cable
Ethernet Cable
Back Panel - FG 80F Series
6
5
3
4
7
2
1
Power Input 12V DC 3A, 100-240V AC 50/60Hz
(optional redundant power adapter and cable available for purchase)
Console (RJ-45) CLI management computer interface
Ports 1 to 6 (RJ-45) 1 Gbps Ethernet interface
BYPASS Port Pair (RJ45) 1 Gbps Ethernet interface
FortiLink Ports A & B (RJ-45) 1 Gbps Ethernet interface
SFP Shared Ports 1 & 2 (SFP) 1 Gbps SFP interface
WAN Shared Ports 1 & 2 (RJ45) 1 Gbps Ethernet interface
6 7
USB (USB A) USB 3.0 server port
40F/41F FG-80F Series
SFP 1 WAN 1
WAN 2
1
2 4 6 B
3 5 A
SFP 2
– shared –
– shared –CONSOLE
USB
31 2 4 5
—BYPASS —
(FG 80F-Bypass model only. WAN1 & Port1 are the default conguration )
