Transparent mode installation Connecting the FortiGate unit to your network
FortiGate-1000 Installation Guide 01-28004-0025-20040830 43
The FortiGate-1000 has four 10/100Base-TX connectors that can be connected to up
to four different networks. You can connect them in any configuration.
To connect the FortiGate-1000 unit running in Transparent mode:
1 Connect the Internal interface to the hub or switch connected to your internal network.
2 Connect the External interface to the network segment connected to the external
firewall or router.
3 Optionally connect interfaces 1 to 4/HA to hubs or switches connected to your other
networks.

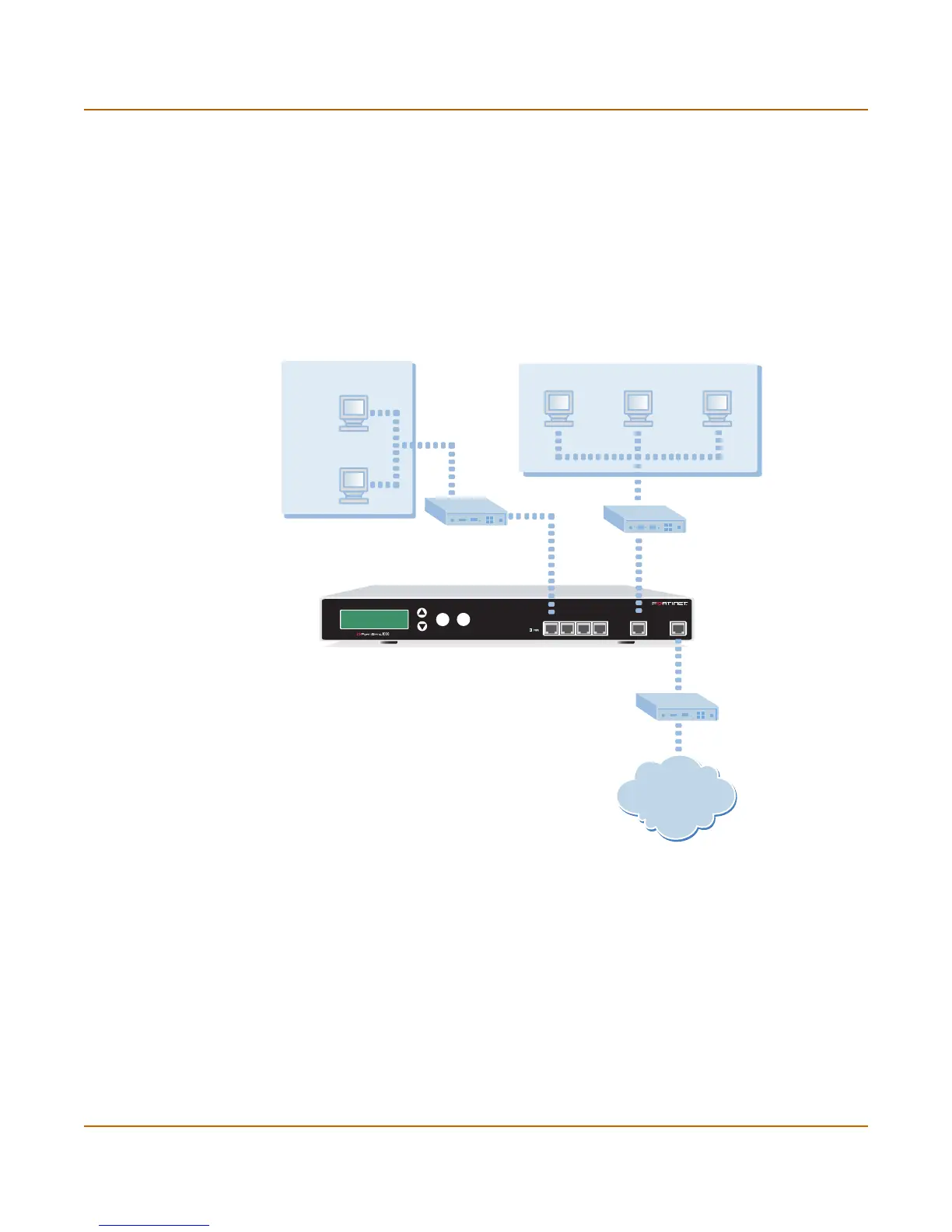

Figure 10: FortiGate-1000 Transparent mode connections
Esc
Enter
INTERNAL
EXTERNAL
1 2 3 4 / HA
Internet
Internal
External
FortiGate-1000
Public Switch
or Router
Hub, Switch
or Router
Port 1
Hub
(optional)
Other Network
Internal Network
