3. Position the FortiSandbox unit in the rack. Ensure there is enough room around
the unit to allow for sufficient air flow.
4. Line up the rack-mount bracket holes to the holes on the rack and ensure that the
FortiSandbox unit is level.
5. Finger tighten four rack-mount screws to attach the unit to the rack.
6. Verify that the spacing around the FortiSandbox unit conforms to requirements
and that the unit is level, then tighten the rack-mount screws with an appropriate
screwdriver.
7. Using the provided power cables, plug the cables into the rear of the unit, and
then into a grounded electrical outlet or a separate power source such as an
uninterruptible power supply (UPS) or a power distribution unit (PDU).
Note: If the unit has a redundant power supply, each power cable should be
connected to a different power source. In this way, if one power source fails, the
other may still be operational and the unit will not lose power.

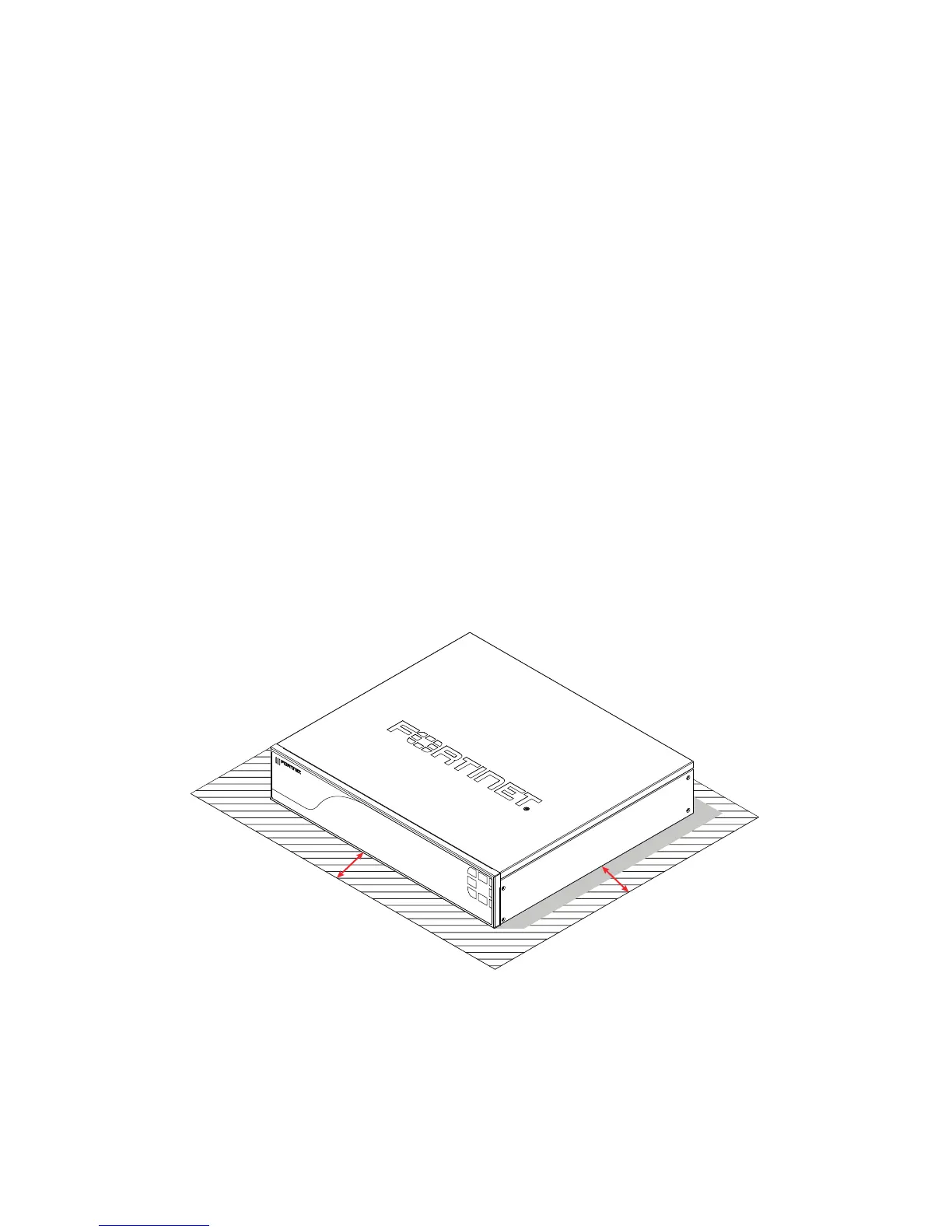

To install the unit on a flat surface:
1. Ensure that the surface onto which the FortiSandbox unit to be installed is clean,
level, and stable and that there is at least 1.5in (3.8cm) of clearance on all sides to
allow for adequate airflow.
2. Attach the provided rubber feet to the bottom of the FortiSandbox unit.
3. Place the unit in the designated location.
4. Verify that the spacing around the FortiSandbox unit conforms to requirements
and that the unit is level.
5. Using the provided power cables, plug the cables into the rear of the unit, and
then into a grounded electrical outlet or a separate power source such as an
uninterruptible power supply (UPS) or a power distribution unit (PDU).
Note: If the unit has a redundant power supply, each power cable should be
connected to a different power source. In this way, if one power source fails, the
other may still be operational and the unit will not lose power.
Page 3
1.5in
1.5in
