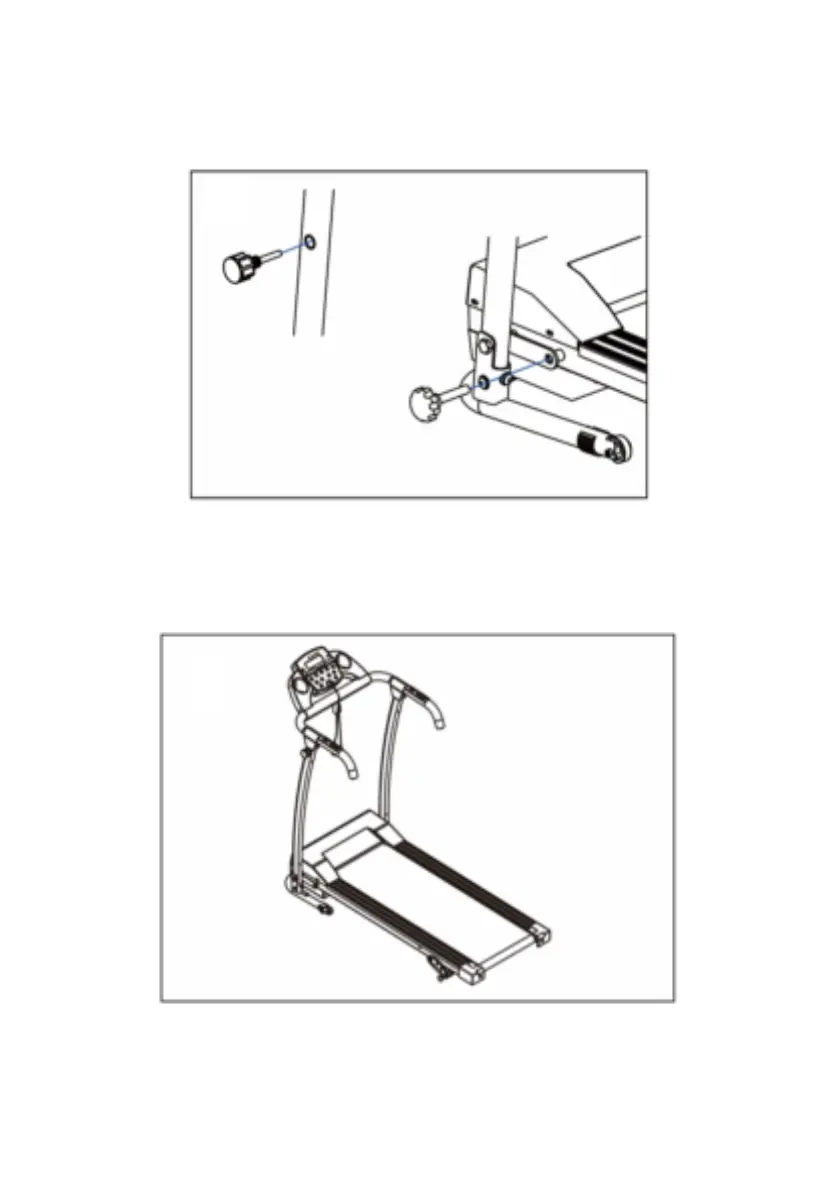

Step 5:
• Attach the M16 knob to left upright tube
• Attach the running frame to base tube by using the M12 knob.
Step 6:
Assembly is complete.
