5

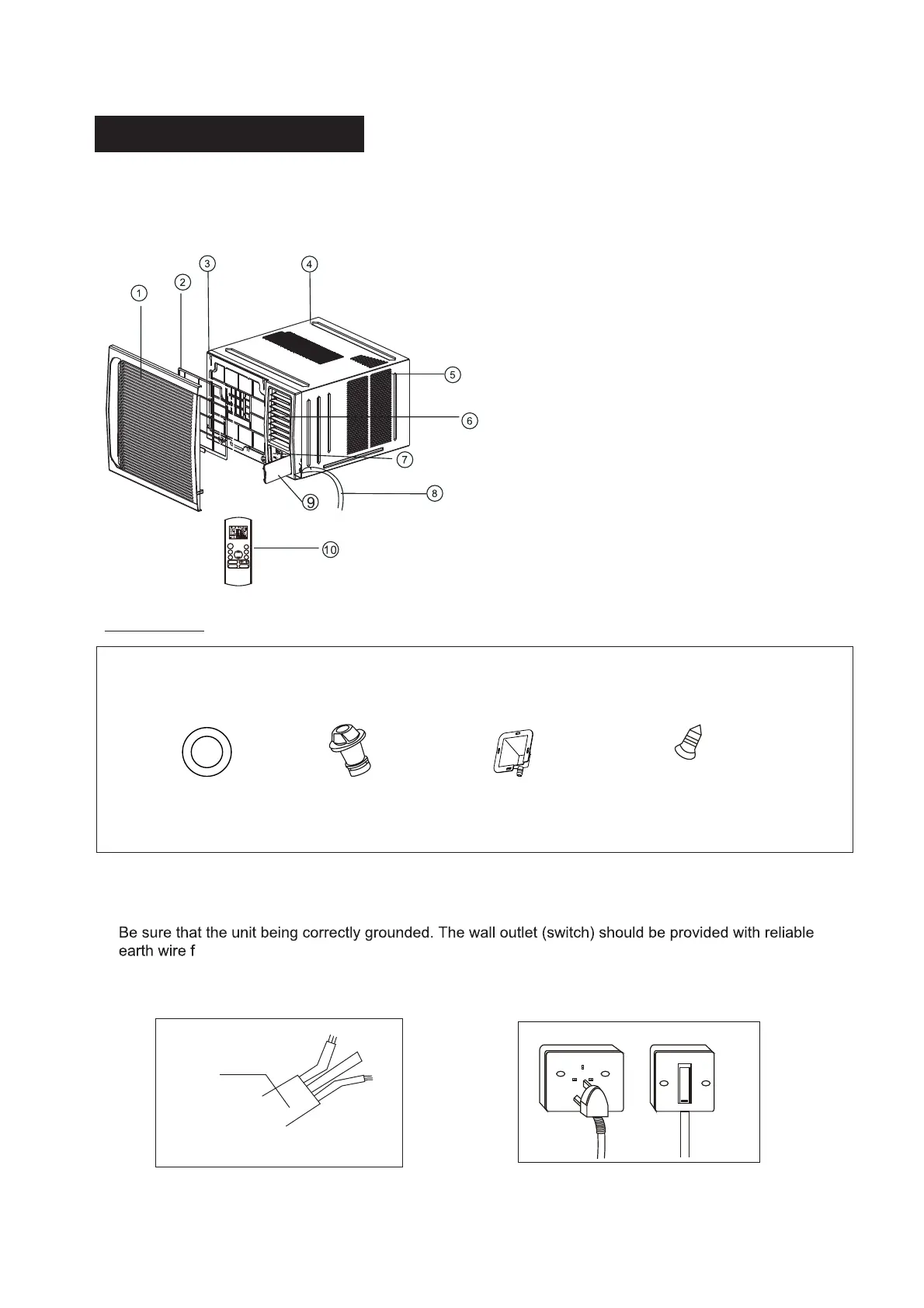

1. Front panel
2. Air Filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Control panel
8. Power cord
9. Control panel cover
10. Remote control
PARTS DESCRIPTION
NOTE: The front panel and cabinet may be slightly different according to the models, but the
functions are the same. The following illustration is for explanation purpose only, the actual
shape of the machine may be slightly different.
1. Power cord conductors are distinguished according to color as follows (see Fig.1)
2. Please contact the manufacturer, its service agent or a qualified person when replace the power cord.
3.
or the safety and protection, the unit is earthed through the power cord (see Fig.2).
4. The unit should be provided with an individual circuit and the circuit breaker/fuse rating should be
same as that of the power cord and wall outlet.
POWER
CORD
A
E
N
E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig. 1
Note:
Accessories
Seal
(Used on
drain joint)
1
1
Screw
Drain Joint
1
Drain Tray
Fig. 2
Wall outlet
Switch
2 ( ≤ 12000Btu )
4 ( ≥ 18000Btu )
MODE
FAN
TEMP
SLEEP
TURBO
LED
ON/OFF
SHORT
CUT
TIMER
ON
TIMER
OFF
