Functions and Connections
The AP05 is a personal stereo amplier to drive a pair of passive loud speakers that amplies audio signal from
your PC or portable music player.
<Note>
 1) Thepowermustbeoffwhenyoumakeconnections.
 2) Donotshortthespeakercable+and-.
 3) Thebodymaygethotduringoperation.Donottouchthebottomchassiswithbarehands.
 4) Whentheinputsignallevelistoohigh,theoutputsoundmaygetdistorted.Insuchacase,lower
thesourcesideoutputlevel.
<ErPDirective>
The AP05 conforms to ErP directive and pursues
energy efficiency. Thus, when no-input signal
continues for approx. 15 min, it will automati-
cally go into the stand-by mode and its power
withdrawal will become as low as 0.4W. At this
moment, the power LED will change from Green
lit to Red
lit
.

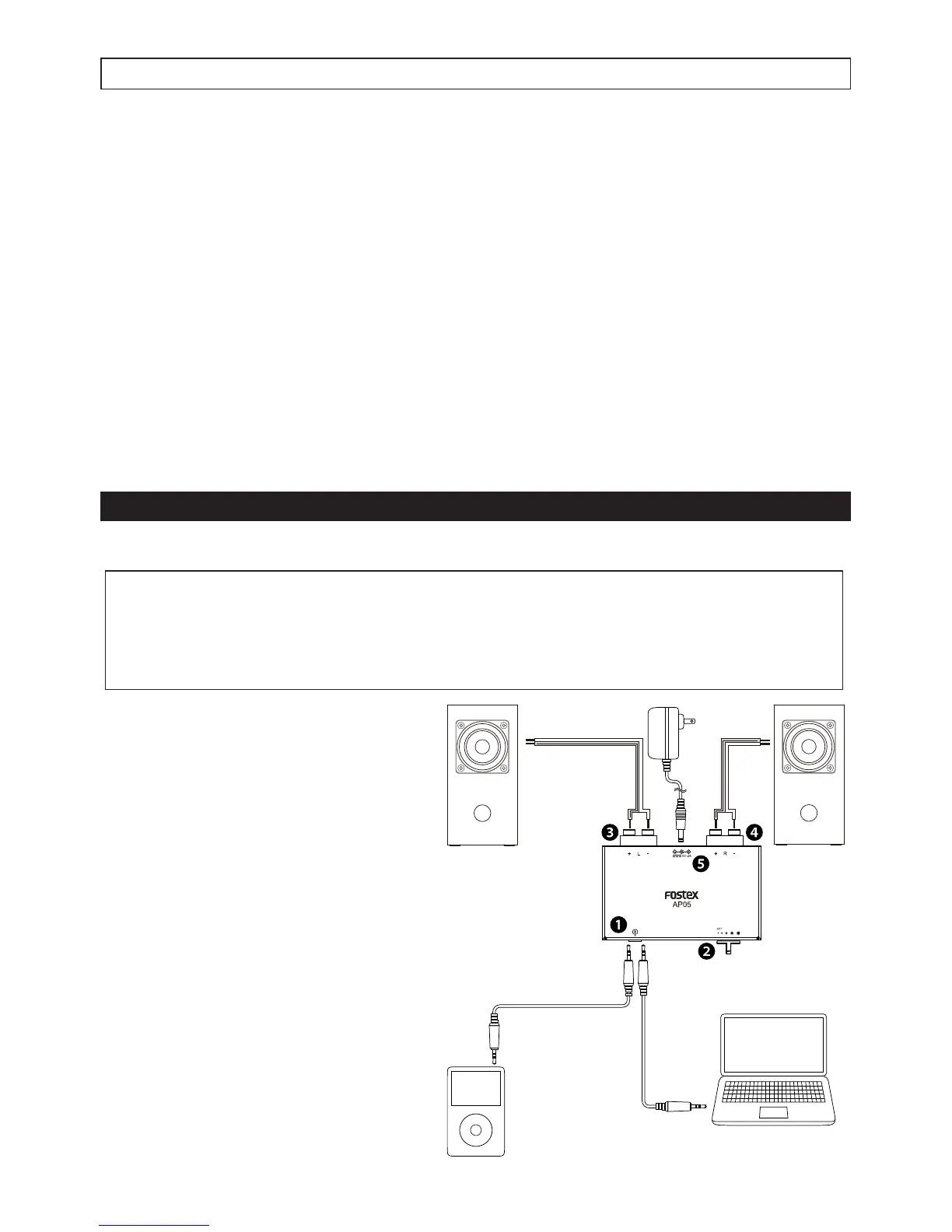

1.[INPUT]connector(stereominijack)
Connects to a stereo sound source, such as a
personal computer and portable music player,
using the supplied stereo mini plug cable.
2.[VOLUME]control
Controls the audio volume as well as turns
on or off the power.
3.[SPEAKER]Lchannelterminal
Connects to a left channel passive loud
speaker, using the supplied speaker cable.
4.[SPEAKER]Rchannelterminal
Connects to a right channel passive loud
speaker, using the supplied speaker cable.
5.[DCIN]connector
Connects the supplied AC adaptor.
PC/MAC
ToACoutlet
Supplied
speaker
cable
SuppliedACadapter
Suplied
speaker
cable
(-)side
(+)side
(-)side
(+)side
Passivespeaker
suchasP800K/P800-E
Passivespeaker
suchasP800K
/P800-E
Suppliedstereominicable
Supplied
stereomini
cable
Eitheroneisconnected
totheINPUTterminal.
Portable
music
player
