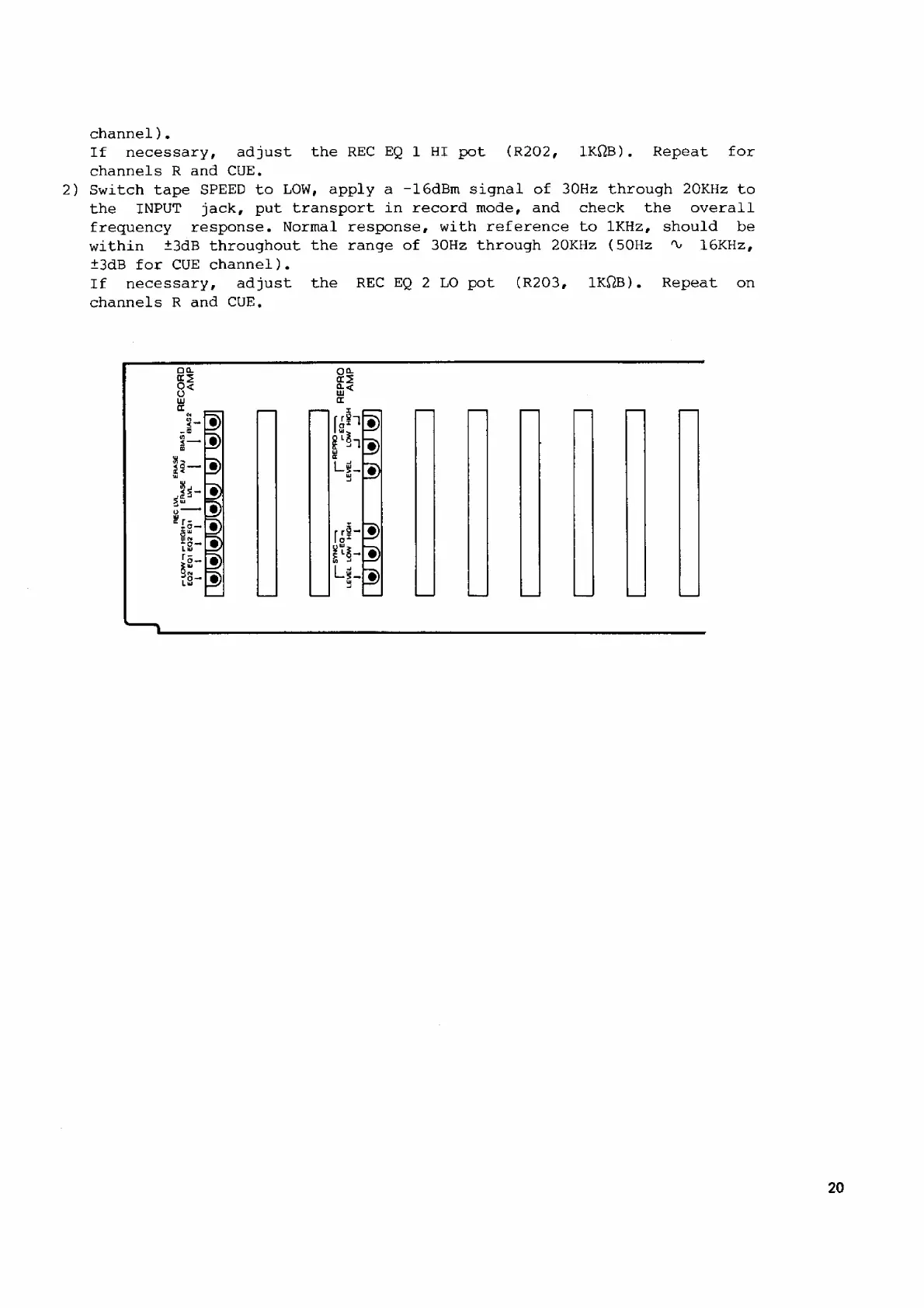

2)
channel).
If necessary, adjust the REC EQ 1 HI pot (R202, 1КЯВ). Repeat for
channels R and CUE.
Switch tape SPEED to LOW, apply a -16dBm signal of 30Hz through 20KHz to
the INPUT jack, put transport in record mode, and check the overall
frequency response. Normal response, with reference to 1KHz, should be
within *3dB throughout the range of ЗОН» through 20KHz (50Hz "v 16KHz,
+3dB for CUE channel).
If necessary, adjust the REC EQ 2 LO pot (R203, 1КОВ). Repeat оп
channels R and CUE,
REPRO
AMP
2—19) Phe
H—|e КЕС
а е)
а С)
18-9)
FAD
F
20
