4

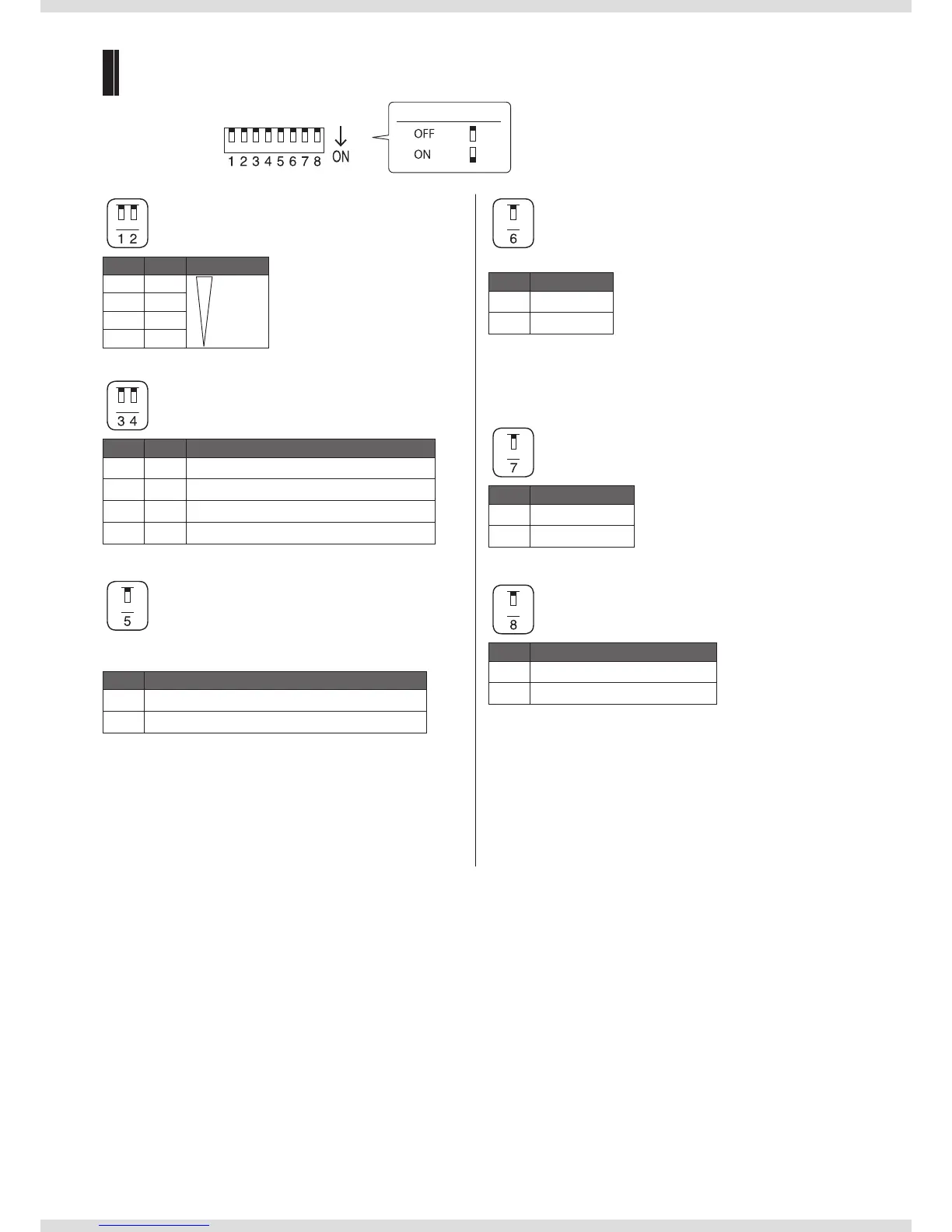

DIP switch settings
DIP switch
(default settings)
Switch position guide
Display brightness (DIMMER)
1 2 Setting
OFF OFF Bright
ON OFF
OFF ON
ON ON Dark
Level meter type
(METER PEAK/ VU)
3 4 Setting
OFF OFF VU+PEAK
ON OFF VU+PEAK HOLD
OFF ON PEAK+PEAK HOLD
ON ON VU
Reference level (REF LVL)
Choose an analog reference level indicated by 0 dB on the level
meter.
5 Setting
OFF +4 dBu (balanced)/–10 dBV (unbalanced)
ON 0 dBu (balanced)/–14 dBV (unbalanced)
The digital reference level is fixed at -20 dBFS.
Source sound type (SOUND)
There are two sound types. Choose the appropriate sound type.
6 Setting
OFF MUSIC
ON VOICE
MUSIC: Ideal for sound sources that have a wide frequency range,
such as music.
VOICE: Ideal for sound sources that have a narrow frequency
range, such as speech.
Volume when muted (
page 6) (MUTE)
7 Setting
OFF Volume: –∞
ON Volume: –20dB
Turn the auto standby function on/off
(AUTO STBY)
8 Setting
OFF Auto standby function: Off
ON Auto standby function: On
The auto standby function
When the “AUTO STBY” DIP switch on the back is set to “on”, if
input to the unit stays below a certain level for approximately 4
hours, the unit automatically goes into standby.
When in standby, power consumption is reduced to 0.5 W or
below. The unit will revert to its normal state when the mute
button is pressed.
The auto standby function does not work when the DIP switch is
set to “off”.
