Foundations Four Passenger - Page 7

11

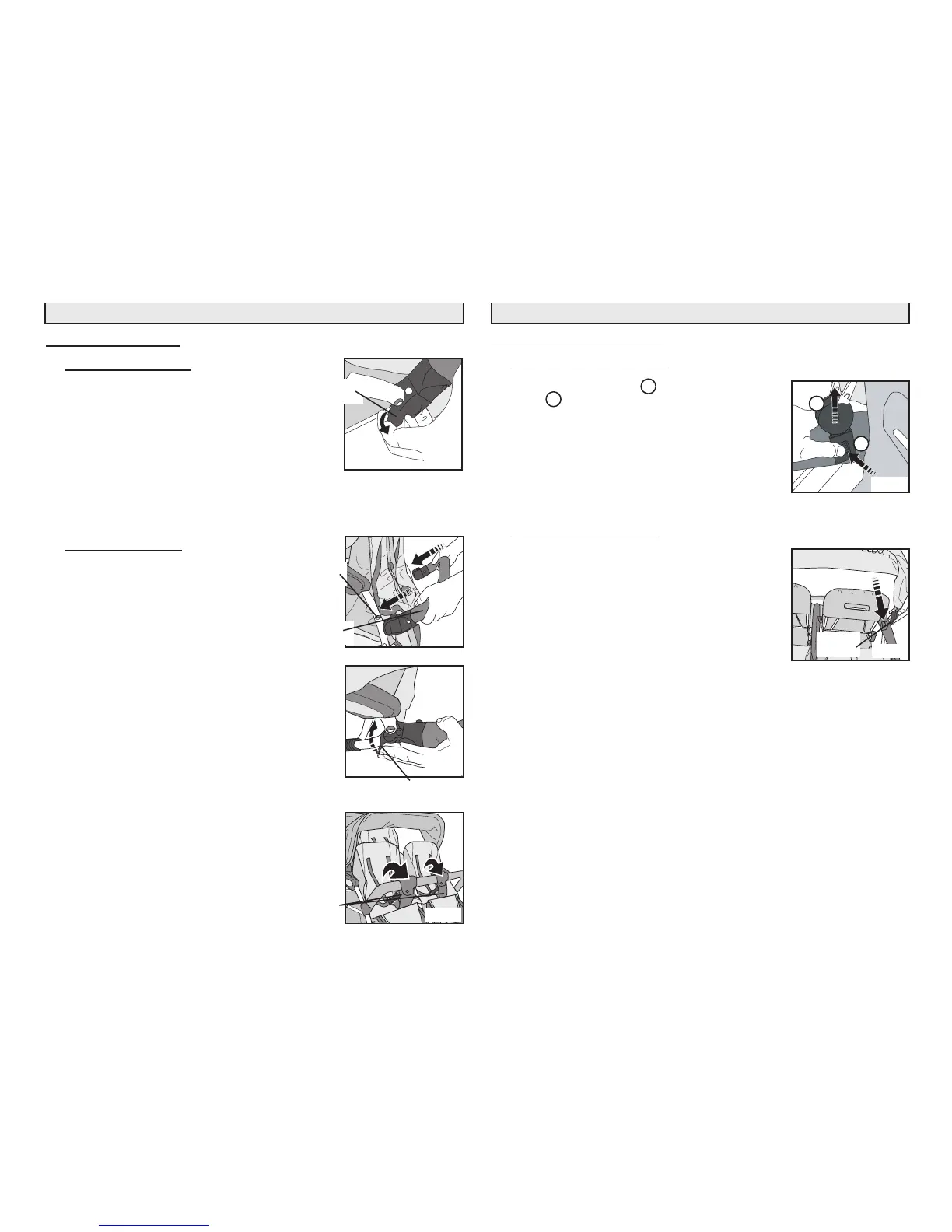

Arm Bar Operation:
To remove arm bar:
1. Unfasten snaps on both front passive
crotch straps.
2. Pull arm bar clamp out away from stroller to
unlock arm bar from stroller frame (Fig. 1).
3. Push down and pull out on arm bar to remove
it from stroller frame.
To attach arm bar:
1. Unfold stroller (see Folding and Unfolding
Stroller section).
2. With Foundations logo up, position Arm
Bar Assembly onto front leg tubes
between arm rest stop and stroller seat
bottom and snap onto front leg on both
sides (Fig. 1).
3. Lock Arm Bar to stroller frame by pushing
Arm Bar Clamp in toward stroller to (Fig. 2).
4. Repeat step 3 for opposite end of Arm Bar.
5. Place Passive Crotch Strap in center of both
seats over Arm Bar and secure snaps (Fig. 3).
Stroller Operation & Use (continued)
Fig. 1
Arm Bar
Assembly
Arm Bar
Clamp
Fig. 1
Fig. 2
Arm Bar
Stop
Passive
Crotch
Strap
Fig. 3
Arm Bar
Clamp
12
Stroller Operation & Use (continued)
Front Canopy Operation:
To remove front canopy:
1. Press retainer tab in and lift canopy frame
up on one side of stroller (Fig. 1).
2. Repeat step 1 for other side of stroller.
To attach front canopy:
1. Push end of Canopy Frame into slot on inside of
outer armrest (Fig. 1).
2. Repeat for opposite side of Canopy Frame.
Fig. 1
Canopy
Frame
Fig. 1
1
2
1
2
