Foundations trio - Stroller Parts Identification; Step-by-Step Assembly

3

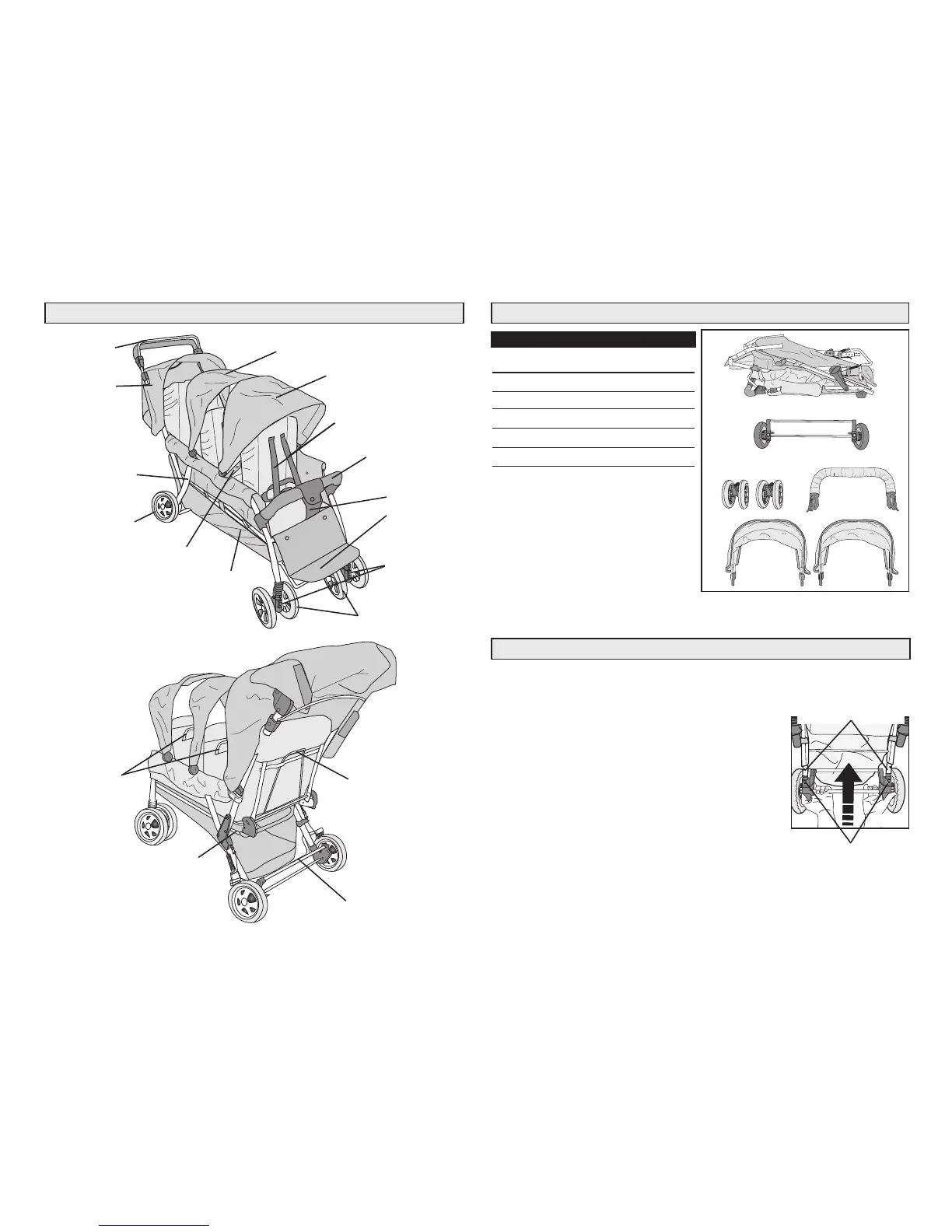

Trio
™
Stroller Parts
Stroller
Frame
Rear Wheel
Assembly
Front Wheel
Assemblies
Arm Bar
Runaway
Brake Bar
Storage
Basket
Footrest
Rear
Canopy
Harness
Passive Crotch
Straps
Front Wheel
Swivel Lock
Recline
Handle
Basket
Frame
Fold
Retention Strap
Parking Brake Lever
Middle
Canopy
Front
Canopy
Recline
Handles
4
1. Place stroller on its back so that the footrest is facing up.
2. With parking brake lever facing down and openings
in Rear Wheel Assembly Sleeves up, align and
slide Rear Wheel Assembly Sleeves onto
both rear leg tubes (Fig. 1).
3. After Rear Wheel Assembly Sleeves are started
onto the rear leg tubes, move parking brake lever
down into the locked position.
4. Slide Rear Wheel Assembly Sleeves up rear legs
until spring buttons snap into holes in both Rear
Wheel Assembly Sleeves.
Pull out on Rear Wheel Axle to be sure Rear Wheel
Assemblies are securely snapped to each rear leg.
Rear Wheel
Assembly
Fig. 1
Rear Wheel
Assembly Sleeves
STEP 1 - Rear Wheel Assembly
Parts List
Part Description Quantity
A. Stroller Frame 1
B. Rear Wheel Assembly 1
C. Front Wheel Assembly 2
D. Arm Bar 1
E. Front And Middle Canopy 2
PARTS LIST
A
B
C
D
E
