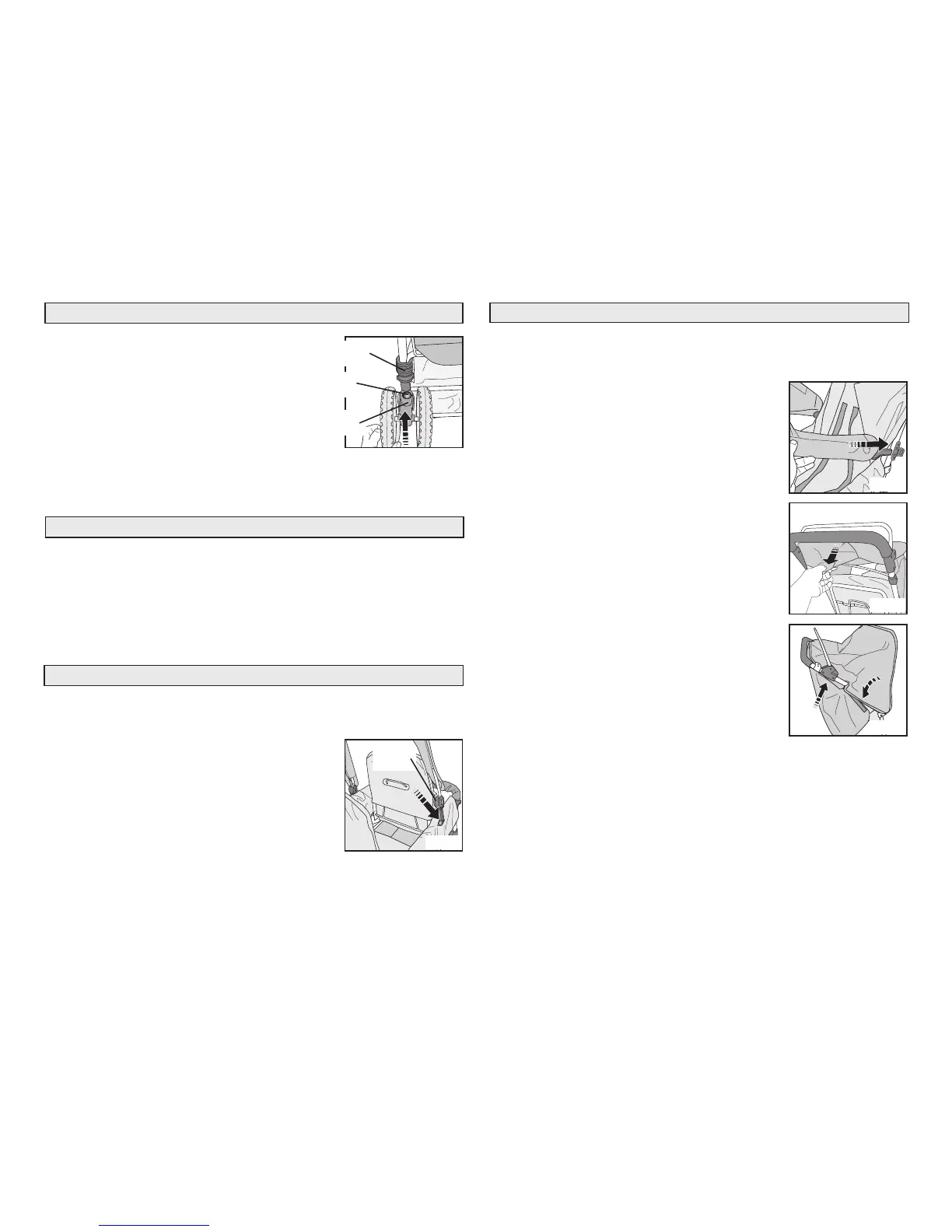

STEP 4 - Front And Middle Canopy Assembly
1. Position front canopy with taller tube toward front
of stroller.
2. Place end of Canopy Frame through opening in
fabric arm rest cover and push into plastic canopy
slot located on outside of metal stroller frame (Fig. 1).
3. Repeat for opposite side of Canopy Frame.
4. Repeat steps 1 through 3 for middle canopy.
Canopy
Frame
Fig. 1
STEP 2 - Front Wheel Assembly
1. Position front wheel assembly with large opening
and swivel lock toward front leg sleeve.
2. Slide Front Wheel Assembly onto front leg
sleeve until it snaps in place (Fig. 1).
Pull out on Front Wheel Assembly to be sure
it is securely snapped to the front leg.
3. Repeat for other Front Wheel Assembly.
Front Wheel
Assembly
Fig. 1
Front Leg
Sleeve
Large
Opening
1. Unfold stroller (see Unfolding Stroller section).
2. Assemble Arm Bar (see Arm Bar Operation section).
STEP 3 - Arm Bar Assembly
6
STEP 5 - Rear Canopy Assembly
1. Position canopy with metal tube facing the front
of the stroller.
2. Push end of canopy frame into canopy slot
located on outside of stroller frame near the
rear seat back (Fig. 1).
Repeat steps 1 and 2 for other side of canopy.
3. Pull back of canopy through stroller handle over
canopy support wire (Fig. 2).
4. Attach small velcro flap behind stroller fold
lock (Fig. 3).
5. Attach large velcro flap around outside of
stroller frame, under stroller fold locks (Fig. 3).
Repeat steps 5 and 6 for other side of canopy.
Fig. 2
Fig. 3
Fig. 1
