4) Communicator Start Up
With the SIM Card inserted and the Communicator DC 12V
power connected you will notice that the SIGNAL LEDs
run up and down and the flashes fast.PWR LED
This is the Normal Startup
procedure, it will continue like
this until the communicator is
registered on to the network.

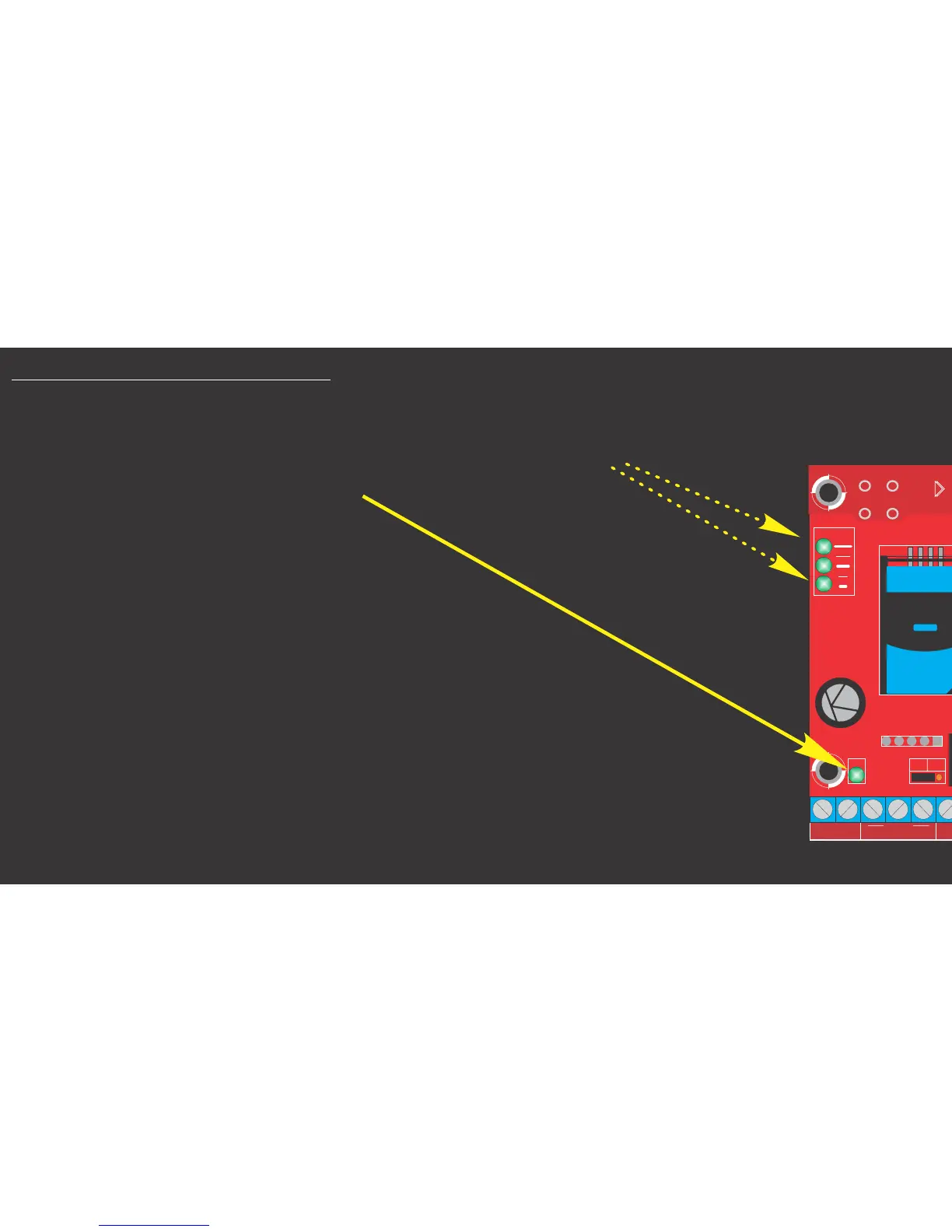

You should notice that the SIGNAL LEDs STOP running
and the UPPER SIGNAL LED stays illuminated.
Every 10 seconds the signal LEDs will change to indicate
the signal level.
You are now ready to Learn the Master User.
