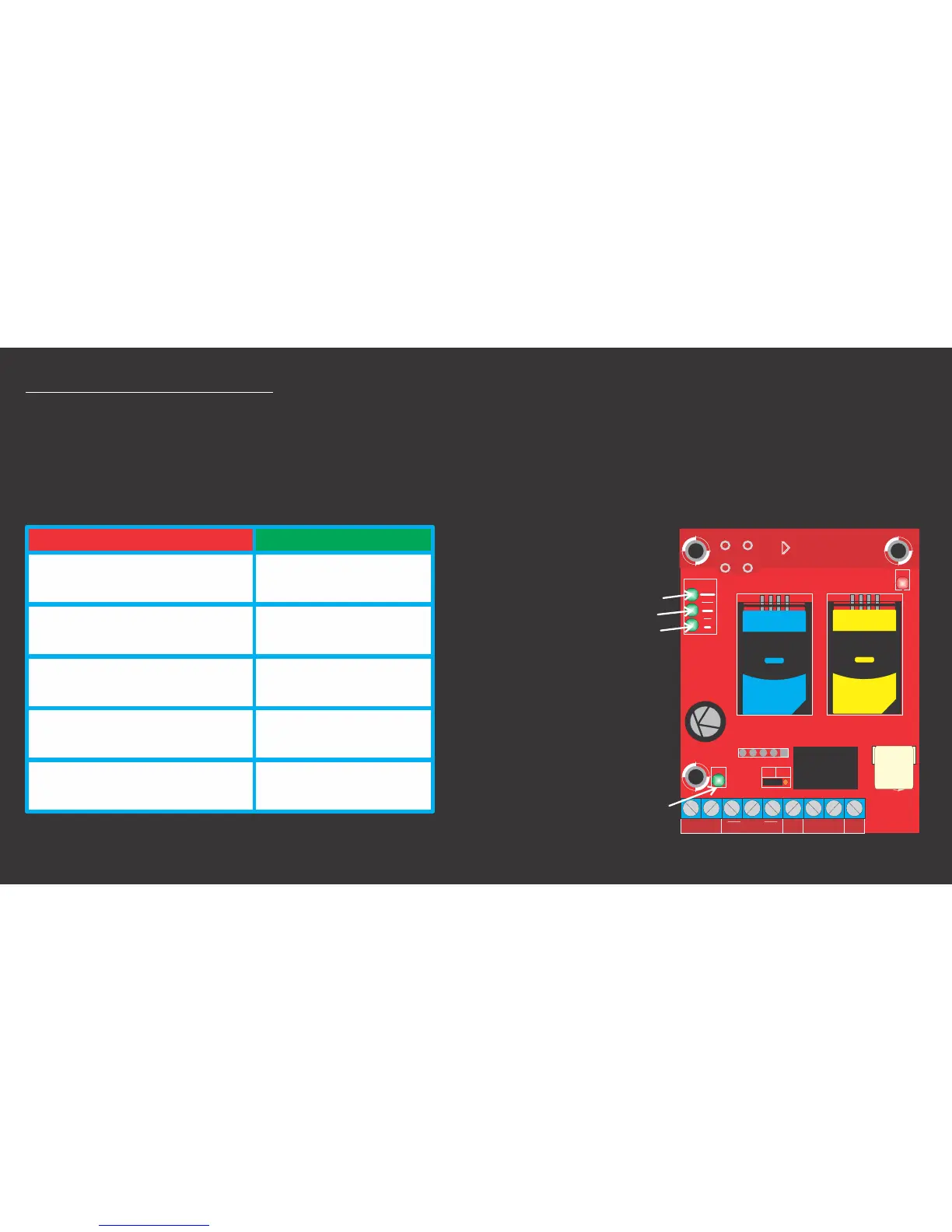

Fox Electronics GSM52S - Troubleshooting

12) Troubleshooting
Use The following Table to identify any fault
conditions you might encounter with the
Communicator power supply.
Signal LEDs
According to RSSI*
Signal Level
According to RSSI*
Signal Level
According to RSSI*
Signal Level
All OFF
CONDITION
PWR LED
Battery Good-
AC OFF
Steady(0.5s ON,
0.5s OFF)
Battery Good-
AC ON
Quick(0.25s ON,
0.75s OFF)
Battery DC Over Voltage
(V>15.0v DC)
Solid(Peranently ON)
Battery Critical Shutdown
(V<8.5v DC)
OFF
SMS Sending
Slow(1.75s ON,
0.25s OFF)
Signal strength :
Low+Mid+High = 75%-100%
Low+Mid = 45%-75%
Low = 25%-45%
Low Flashing = 0%-25%
INPUT
1 2 3 4
OP1 OP2
NO/C COM
POS
NEG
12V DC
PWR
PGM
NO
NC
SIM
SIM 2
SIM
SIM 1
FOX
GSM52S
SIGNAL
STAT
SERIAL
Signal
LEDs
High
Mid
Low
PWR
LED
