Fox FACTORY RACE 2.0 Series User Manual

605-01-278 6
7. Cut o the bump stop holder with a cut o
wheel or reciprocating saw. Cut below the tape
line. (Fig 2a).Make sure the cut surface is square
and free of any sharp edges or burrs. An uneven
surface may cause issues when the new FOX bump
stop is secured.
10. After the steel is coated, install the bump stop by
sliding it through the tube from the bottom (Fig. 4).
8. Clean up any burrs or sharp edges. Check that the
cut is flat (Fig 3).

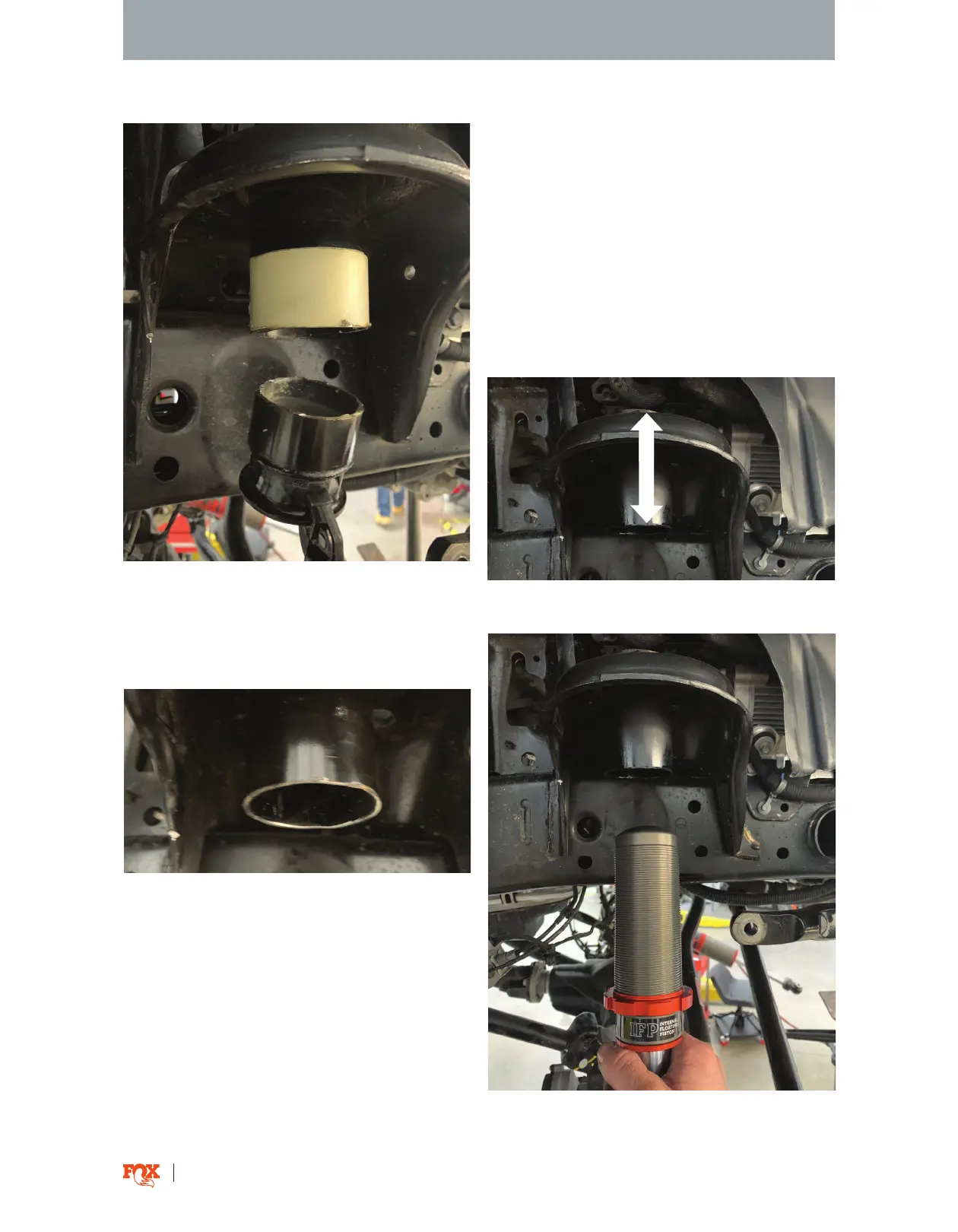

Fig. 2a: Cut the bump holder o under the tape line.
Passenger side shown.
Fig. 3: Cut the bump holder o under the tape line.
Passenger side shown.
Fig. 4: Install the bumpstop.
FOX BUMP STOP INSTALLATION
9. Clean up the bump tube inner diameter on
the top and bottom of the tube. Use a corrosion
inhibitor (spray paint) to coat the exposed steel.
NOTICE: Some applications may require additional
cutting and trimming to attain proper jounce tube
length. The total length of the bump stop holder
should measure approximately 3.125” (Fig 2b).
Fig. 2b: Measure the bump stop holder’s total length.
3.125”
