instructions - Front
Medium-strength thread-lock (blue Loctite) is
recommended on all bolts.
1. Please read the INSTALLATION
GUIDELINES for instructions on how
to properly lift and secure the vehicle.
2. Remove front wheels.
3. Remove front stock shocks.
4. Install the supplied reservoir brackets
to the vehicle frame so that brackets
angle up toward the rear of the vehicle.
The FOX reservoir brackets have
cutouts to locate around the tube
coming from the vehicle frame. Mark
the center hole and drill a 21/64” pilot
hole then secure the reservoir bracket
to the frame with one of the supplied
3/8” self tapping screws. Drill the
remaining two pilot holes and install
self tapping screws (Fig. 1).
5. If an aftermarket lower relocation
bracket will be used install per
manufactures instructions at this time
(Fig.2).
6. Connect the FOX shock to the top
vehicle mount with a stem bushing
and washer on the bottom and top.
Tighten top
locking nut until 5/8” of total stem is
showing (Fig. 3).
7. Connect the Fox Shock to the lower
mount using the factory nut and
bolt. Torque to factory specifications.
If using an aftermarket relocation

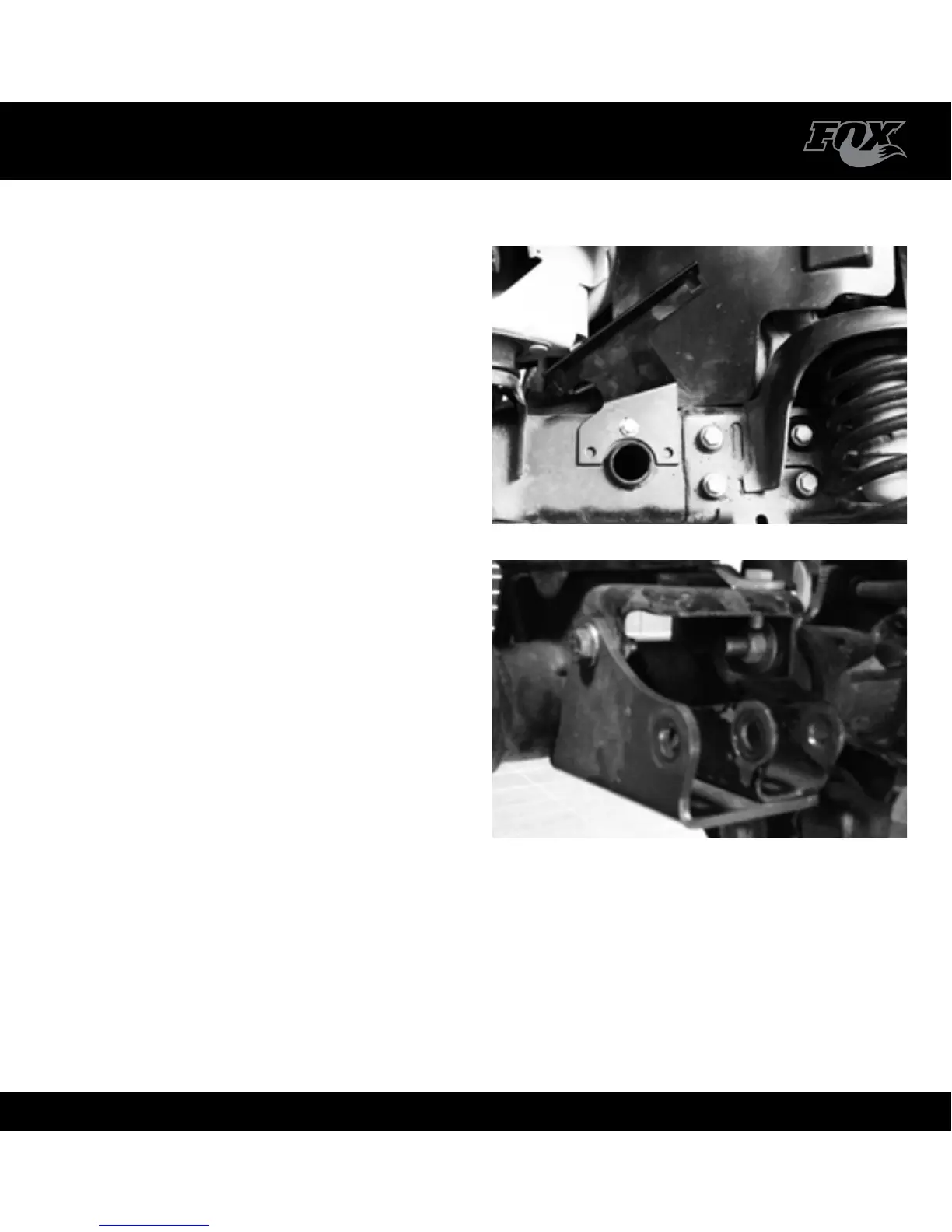

Fig. 1: Driver side
Fig. 2: Driver side
3
