Foxboro 43AP - Dimensions and Connection Details

MI 011-476 – January 1980 Installation
6
Pipe Mounting
Remove mounting bracket from controller case. Securely fasten bracket on a 2-inch or 3-inch
pipe. Then reinstall controller into bracket.

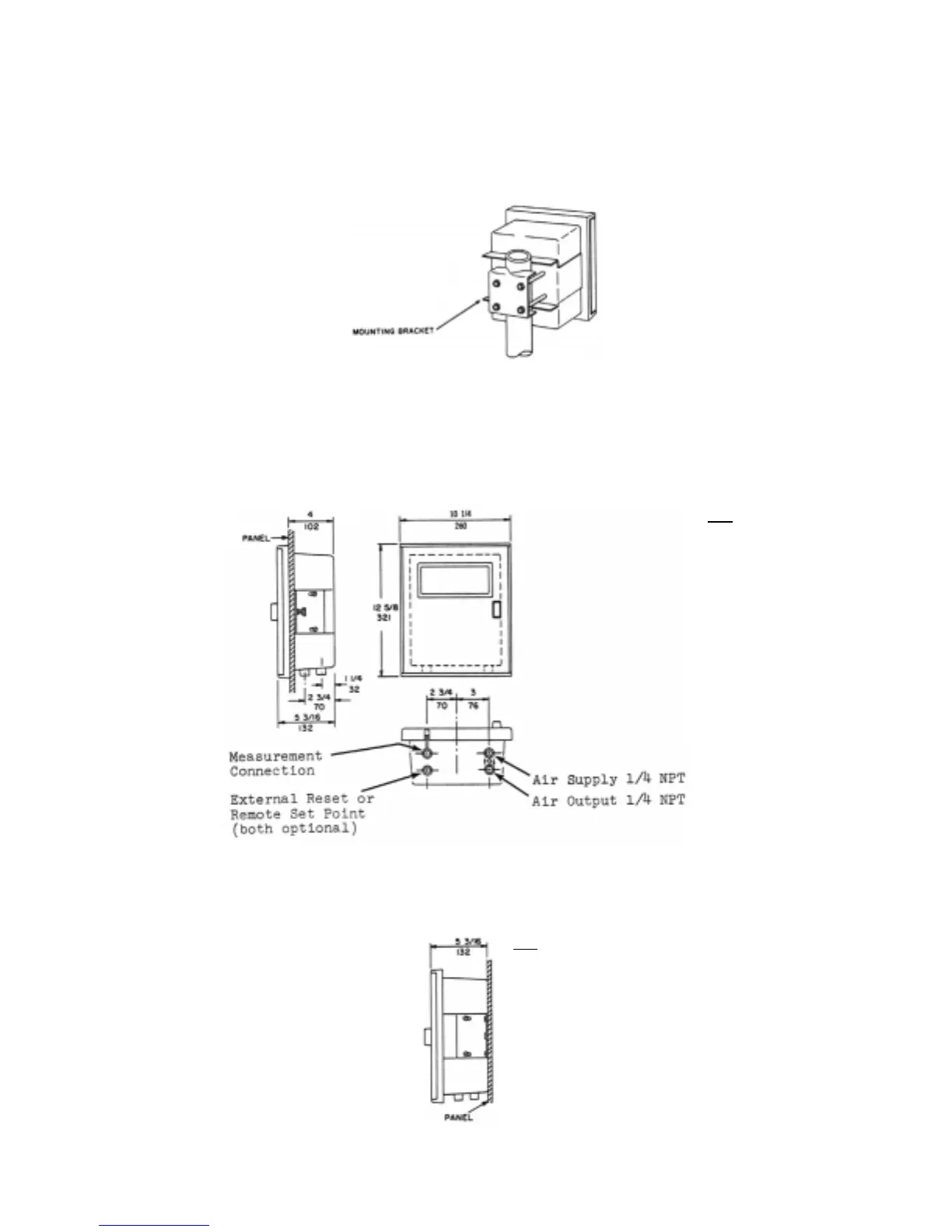

Controller Dimensions and Connections
Flush Mounting
Surface Mounting
in
mm
in
mm
