Installation MI 011-476 – January 1980
7

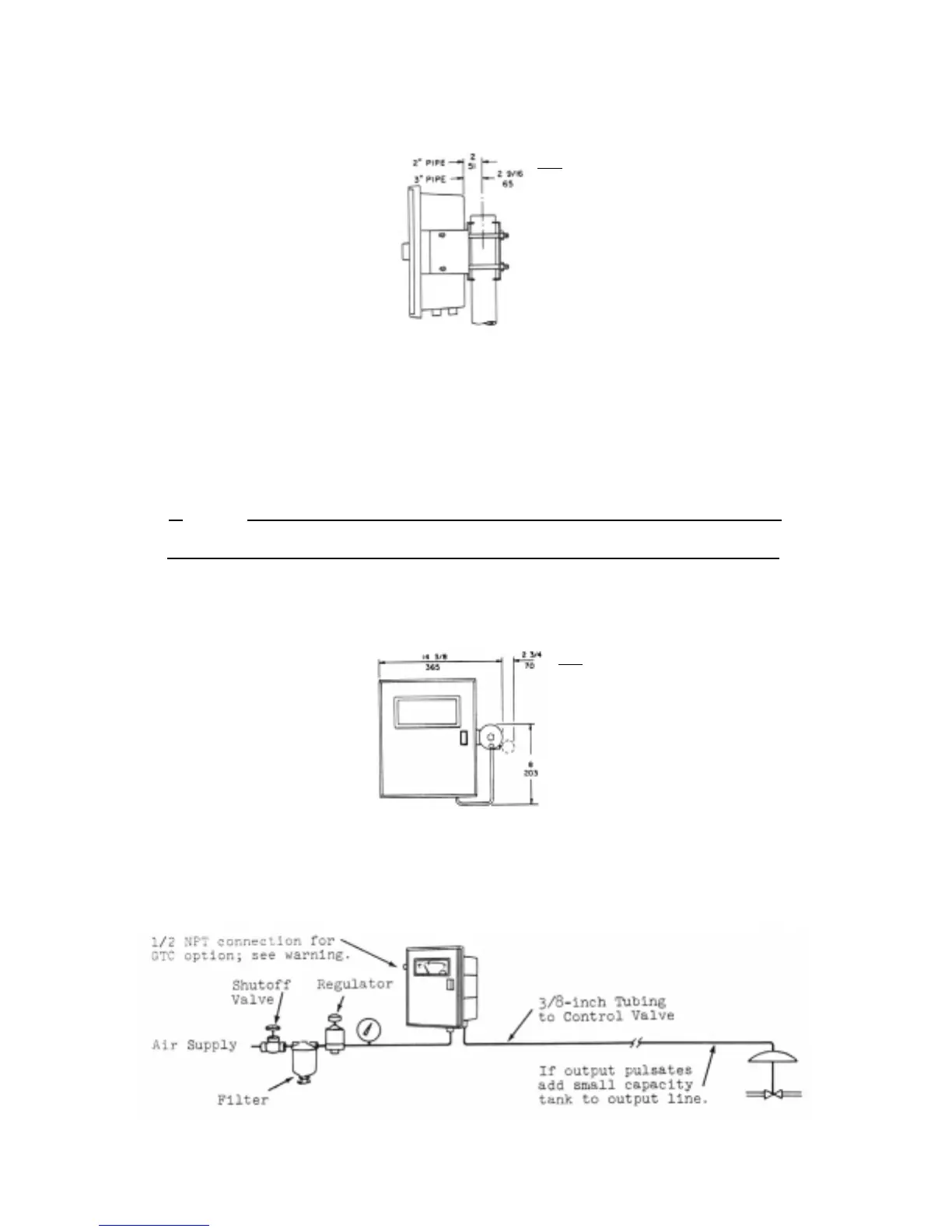

Pipe Mounting
Pressure Connection
1/4 NPT female (up to 2000 psi or 14 MPa)
1/2 NPT male (above 2000 psi or 14 MPa)
9/16-18 Aminco (from 10000 psi or 70 MPa)
Pneumatic Receiver Connection
1/4 compression fitting
NOTE
When installing piping, hold case connections stationary with wrench.
Optional Integral Filter-Regulator Set
Air Supply and Output Piping
For Control Valve Piping see Instruction MI 012-210.
in
mm
in
mm
